| Product Name: | PCB Terminal Block | Wire Gauge: | 22-14AWG |
|---|---|---|---|
| Mounting Type: | Through Hole/Surface Mount | Voltage Rating: | 250V/300V/400V/500V |
| Current Rating: | 2A/5A/10A/15A/20A/25A/30A | Termination Method: | Screw/Solder |
| Number Of Rows: | 1/2/3/4/5/6 | Insulation Resistance: | 1000MΩ/min |
| High Light: | Screw PCB Terminal Block,Solder PCB Terminal Block,36 Contacts Through Hole Terminal Block |
||
PCB Terminal Block is an electronic connector terminal used for contact in the electronic industry. It offers a variety of options to meet different needs. It has 1/2/3/4/5/6 rows, and it can withstand AC2000V/min voltage. The pitch is available in 3.5mm/5.0mm/5.08mm, and the current rating can be 2A/5A/10A/15A/20A/25A/30A. It can be mounted by through hole or surface mount.
The PCB Terminal Block is a reliable and durable contact system designed for the electronic industry. It has various features, such as high withstanding voltage, large current rating and multiple rows. It is easy to install and use, and it supports a wide range of applications. It is an ideal choice for a variety of electronic connector needs.

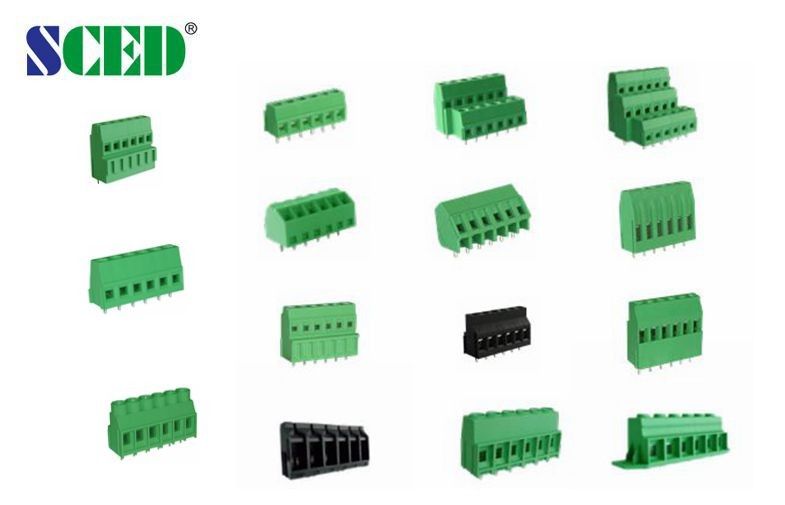

SCED's TJ381 terminal block is an electronic connector suitable for various applications. It is manufactured with high quality materials, providing superior electrical performance. The terminal block is designed to withstand up to 2000V AC and has an insulation resistance of up to 1000MΩ, allowing it to operate under 250V/300V/400V/500V. It is also available in a range of mounting types, including through-hole and surface mount. This terminal block is a reliable and cost-effective solution for a wide range of electronic applications.
| Property | Value |
|---|---|
| Number of Rows | 1/2/3/4/5/6 |
| Current Rating | 2A/5A/10A/15A/20A/25A/30A |
| Brand | SCED |
| Color | White/Black/Grey |
| Mounting Type | Through Hole/Surface Mount |
| Pitch | 3.5mm/5.0mm/5.08mm |
| Withstand Voltage | AC2000V/min |
| Material | Plastic/Metal |
| Voltage Rating | 250V/300V/400V/500V |
| Product Name | PCB Terminal Block |
Brand Name: SCED
Model Number: TJ381
Place of Origin: China
Material: Plastic/Metal
Number of Rows: 1/2/3/4/5/6
Insulation Resistance: 1000MΩ/min
Mounting Type: Through Hole/Surface Mount
Wire Gauge: 22-14AWG
PCB Terminal Blocks are important contact components used in the electrical and electronic industries for connecting wires and cables. They are also known as terminal boards or strips and are used to create a secure connection between two or more wires.
Terminal blocks are available in a variety of sizes, shapes and materials. They are designed to be used in a wide range of applications, such as automotive, industrial and consumer electronics. They are also ideal for use in control panels, power systems, instrumentation and other electrical equipment.
Terminal blocks provide reliable contact and are easy to install and maintain. They provide a secure and reliable connection between two or more wires, ensuring a safe connection. The contacts are made from a durable material, such as copper or brass, and the insulation is made from a heat and flame resistant material.
SCED's terminal blocks are designed to meet the highest standards of quality and performance. They offer a wide range of features and benefits, including:
SCED's terminal blocks are designed to meet the needs of a variety of applications and are available in a variety of materials, sizes and configurations. Whether you need a terminal block for an automotive, industrial or consumer electronics application, SCED has the right solution for you.
PCB Terminal Block items are packaged in protective plastic and placed in a cardboard box.
The cardboard box is then sealed with tape and labeled with information.
The labeled box is then placed in a shipping container.
The shipping container is then sealed, labeled, and ready for shipping.
