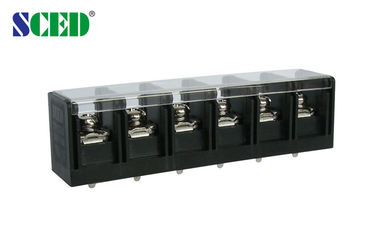

Plastic Cover high voltage terminal block 40A M4 Screw Brass 13mm Power Connectors

Plastic Cover high voltage terminal block 40A M4 Screw Brass 13mm Power Connectors

    • Plastic Cover high voltage terminal block 40A M4 Screw Brass 13mm Power Connectors
    • Plastic Cover high voltage terminal block 40A M4 Screw Brass 13mm Power Connectors
  • Plastic Cover high voltage terminal block 40A M4 Screw Brass 13mm Power Connectors

    Product Details:

    Place of Origin: Guangdong China
    Brand Name: SCED
    Certification: UL,CE,CUL, CQC and VDE etc.
    Model Number: TB1300-00-C

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 Piece/Pieces
    Price: USD 0.076-0.152 Per Pole
    Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
    Delivery Time: 5-20 Working Days
    Payment Terms: T/T, L/C
    Supply Ability: 1000000 Pole/Poles per Month
    Contact Now
    Detailed Product Description
    Pitch: 13mm Color: Black
    Current: 40A Voltage: 600V
    Poles: 2-12 Poles Wire Range: 20-8 AWG
    Terminal: Brass Screw: M4
    Rated Surge Voltage: No Abnormal Within 1 Minute Contact Resistance: Less Than 8mΩ



    Plastic Cover high voltage terminal block 40A M4 Screw Brass 13mm Power Connectors



    Detailed product Description:



    Pitch 13.00mm, 600V 40A, 2-12P, Barrier Terminal Blocks, Power Terminal Blocks



    ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

    ■Single Level; □Double levels; □Triple levels

    Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.



    How to order:



    Plastic Cover high voltage terminal block 40A M4 Screw Brass 13mm Power Connectors



    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



    Parameter and Drawing Specifications:

    UL Technical Data B C D
    Rated Voltage / Current V/A 600 / 40 600 / 40 600 / 5
    Wire Range AWG 20-8 20-8 20-8
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 800 / 40 1000 / 40 1000 / 40
    Rated Surge Voltage KV 8 8 8
    Rated Connecting Capacity mm2 4
    Material
    Insulation Material / Inflammability Class PBT / UL94, V-0
    Terminal / Plating Brass /Tin Plated
    Screw / Plating Steel / Nickel Plated
    Other Data
    PCB Hole Diameter mm φ2.5
    Stripping Length mm 10-11
    Screw / Torque / lbf.in M 4 / 10.6-13



    Competitive Advantage:



    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand

    Plastic Cover high voltage terminal block 40A M4 Screw Brass 13mm Power Connectors
