600V 50A Power Terminal Block Black PC Screw Clamp Barrier Strips Connector

600V 50A Power Terminal Block Black PC Screw Clamp Barrier Strips Connector

  • Highlight

    power distribution terminal block

    ,

    electric terminal block

  • Type
    Power Terminal Block, PCB Screw Terminal Blocks,Electrical Terminal Blocks
  • Pitch
    60.00mm
  • Number Of Contacts
    Any Poles Available
  • Wire Range
    350-750kcmil
  • Rated Voltage
    600V
  • Rated Current
    500A
  • Color
    Black
  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TR500-00-FaM0
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

600V 50A Power Terminal Block Black PC Screw Clamp Barrier Strips Connector

600V 50A Power Terminal Block Black PC Screw Clamp Barrier Strips Connector



Detailed product Description:

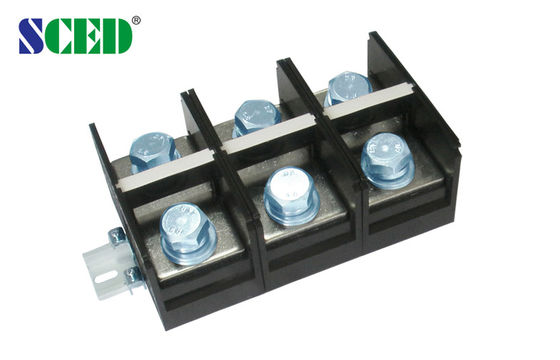

High Current Power Terminal Blocks Connectors Pitch 60.00mm 600V 500A any pole available
■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Level;  □Double levels;  □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
How to order:

600V 50A Power Terminal Block Black PC Screw Clamp Barrier Strips Connector 0

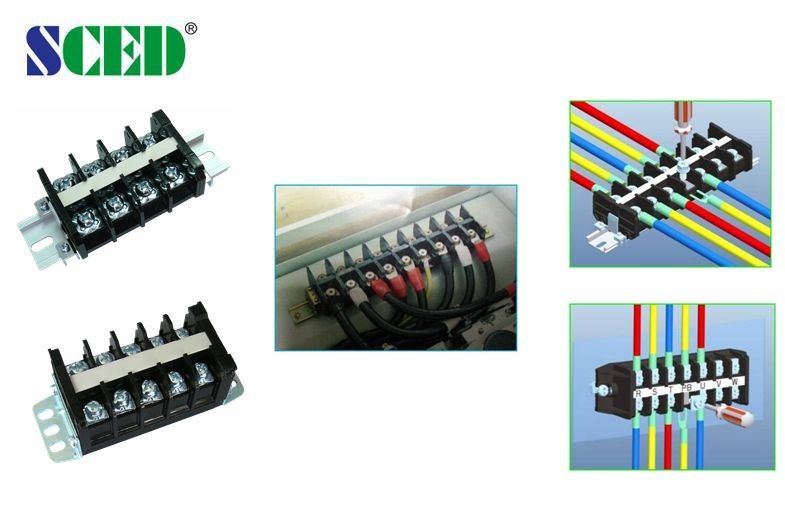

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 500

600 / 500



Wire Range                                AWG

350-750kcmil

350-750kcmil



IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current                 V/A

1000 / 500

1000 / 500

1000 / 500

Rated Surge Voltage                      KV

10

10

10

Rated Connecting Capacity           mm2

380

Material



Insulation Material / Inflammability Class

PC / UL94, V-0

Terminal / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

30-35

Screw / Torque                    / lbf.in

M12 / 200-213




Competitive Advantage:



1.    Stable good quality

2.    Competitive price

3.    Quickly response

4.    Full range products for selection

5.    Flexible to design the exact part per customers’ demand
