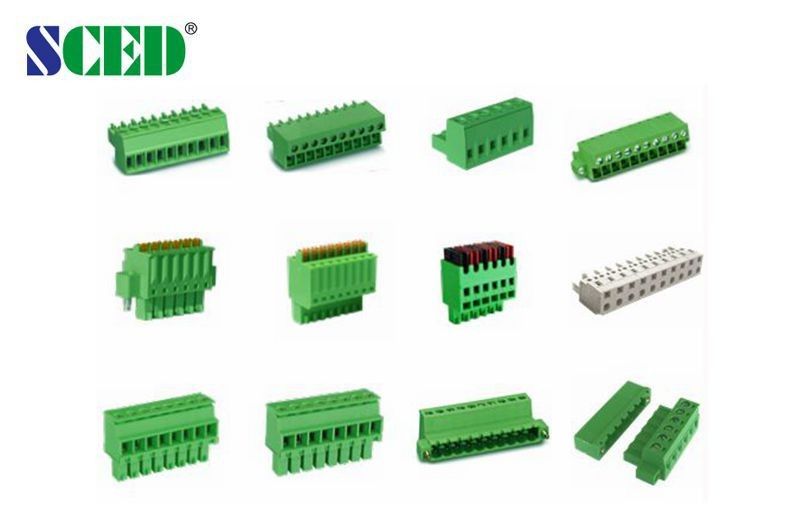

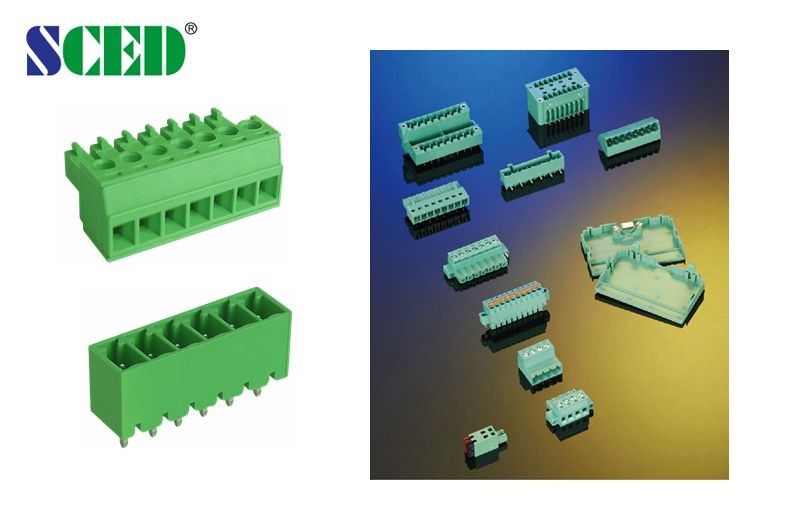

Female Type PCB Plug In Terminal Block 3.81mm 5.08mm Pluggable Green Connector

Female Type PCB Plug In Terminal Block 3.81mm 5.08mm Pluggable Green Connector

    • Female Type PCB Plug In Terminal Block 3.81mm 5.08mm Pluggable Green Connector
    • Female Type PCB Plug In Terminal Block 3.81mm 5.08mm Pluggable Green Connector
    • Female Type PCB Plug In Terminal Block 3.81mm 5.08mm Pluggable Green Connector
  • Female Type PCB Plug In Terminal Block 3.81mm 5.08mm Pluggable Green Connector

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TP381P-00

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Imflammability: UL94, V-0 Housing Material: PA66
    Pitch: 3.81mm Current: 8A
    Screw: Steel Contactor: Phosphor Bronze

    Female Type PCB Plug In Terminal Block 3.81mm 5.08mm Pluggable Green Connector





    Descripition:



    1. Material: Plastic housing is PA66(UL94 V-0),

    2. Operating temperature: -40 ℃~+105℃,

    3. Clamp cage and header terminal using brass

    4. Spring clamp with phophor bronze

    5. Screw using high quality steel





    Parameter and Drawing Specifications:



    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300 / 8





    Wire Range                                 AWG

    16-30





    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current                V/A

    160 / 8

    160 / 8

    320 / 8

    Rated Surge Voltage                     KV

    2.5

    2.5

    2.5

    Rated Connecting Capacity           mm2

    1.5

    Material



    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Clamp Cage / Plating

    Brass / Nickel Plated

    Terminal / Plating

    Phosphor Bronze / Tin Plated

    Screw / Plating

    Steel / Zinc Plated

    Other Data



    Stripping Length                    mm

    7

    Screw / Torque                    / lbf.in

    M2 / 2-2.2





    Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.





    Applications:



    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





    Competitive Advantage:



    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand

    Drawing Photo





    Female Type PCB Plug In Terminal Block 3.81mm 5.08mm Pluggable Green Connector
