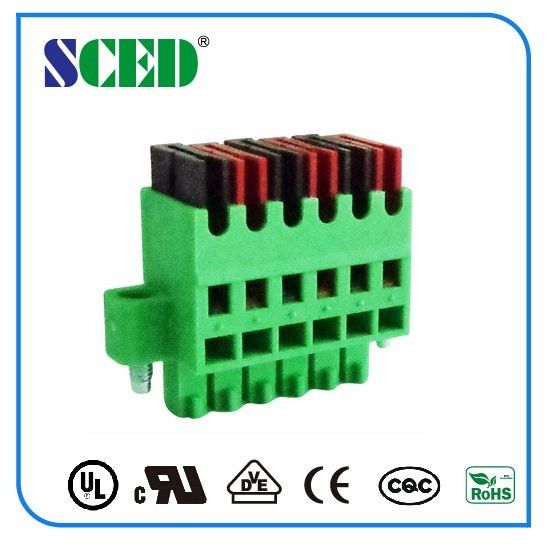

3.81mm Spring Clamp Electric Plug in Terminal Block For Server Site

3.81mm Spring Clamp Electric Plug in Terminal Block For Server Site

    • 3.81mm Spring Clamp Electric Plug in Terminal Block For Server Site
    • 3.81mm Spring Clamp Electric Plug in Terminal Block For Server Site
  • 3.81mm Spring Clamp Electric Plug in Terminal Block For Server Site

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TP381P-08

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Wire Range: 20-22 Rate Connecting: 0.5
    Surge Voltage: 6KV Imflammability: UL94, V-0
    Housing Material: PA66 Pitch: 3.81mm
    Current: 5A Voltage: 300V



    2-24 Number Of Contact Plug in Terminal Block 3.81mm Spring Clamp Electric Terminal





    Parameter and Drawing Specifications:

    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300 / 5





    Wire Range                             AWG

    20-22





    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current                 V/A

    400/6

    400/6

    400/6

    Rated Surge Voltage                     KV

    6

    6

    6

    Rated Connecting Capacity           mm2

    0.5

    Material



    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Clamp Cage / Plating



    Terminal / Plating

    Brass / Tin Plated

    Screw / Plating





    3.81mm Spring Clamp Electric Plug in Terminal Block For Server Site3.81mm Spring Clamp Electric Plug in Terminal Block For Server Site3.81mm Spring Clamp Electric Plug in Terminal Block For Server Site3.81mm Spring Clamp Electric Plug in Terminal Block For Server Site3.81mm Spring Clamp Electric Plug in Terminal Block For Server Site3.81mm Spring Clamp Electric Plug in Terminal Block For Server Site



    Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.





    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





    Competitive Advantage:



    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand

    3.81mm Spring Clamp Electric Plug in Terminal Block For Server Site

    3.81mm Spring Clamp Electric Plug in Terminal Block For Server Site
