| Place of Origin: | Shenzhen, China |
| Brand Name: | SCED |
| Certification: | UL, CE |
| Model Number: | TR-6N |
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | Get latest price |
| Packaging Details: | Standard Export Carton |
| Delivery Time: | 7-20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1KK poles each monthly |
| Wire Inlet: | Right Angle Wire Inlet | Terminal Width: | 8.2mm |
|---|---|---|---|
| Type: | Rail Mounted Terminal Blocks, Electrical Terminal Blocks, Terminal Block Connectors | Wire Range: | 26-8 |
| Rated Voltage: | 600V | Rated Current: | 50A |
| Color: | Black | Applications: | Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev |
| High Light: | rail mount terminal block,grounding terminal block |
||

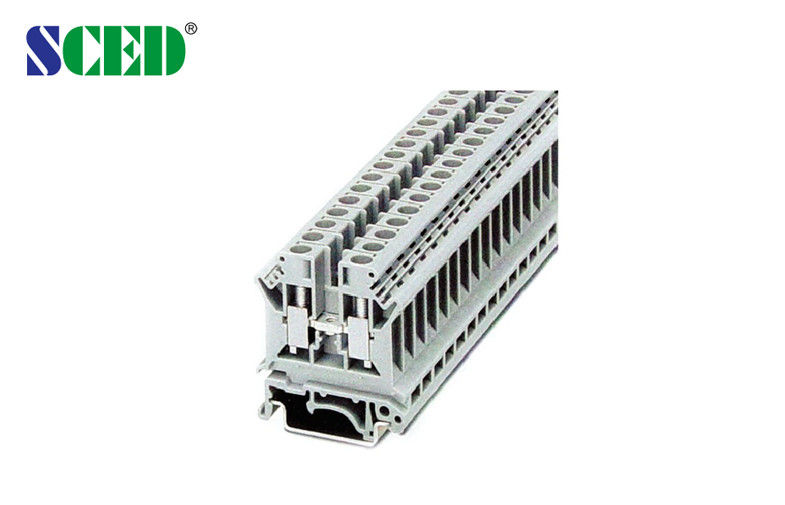

600V 50A Din Rail Mounted Terminal Blocks 8.2mm Feed Through Connector for Electric
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter
|
Description Color |
Type |
|
Terminal Grey |
TR-6N |
|
|
D-TR-3/16 |
|
|
FBI 10-8 Imax: 57A |
|
|
EB 10-8 Imax: 57A |
|
|
TS-K |
|
|
ATP-TR |
|
Zack Strip White |
ZB8 |
|
Screwdriver |
SZS 1.0×4.0 |
|
Rail Material |
aluminum |
|
Dimensions mm |
8.2/42.5/2 |
|
Height (U35: 7.5/U35: 15G 32) mm |
47/54.5/52 |
|
Screw / Torque Nm |
M4 / 1.5-1.8 |
|
Stripping Length mm |
10 |
|
IEC Technical Data |
|
|
Max. Load Current / Cross Section A / mm2 |
57 / 10 |
|
Rated Surge Voltage / Contamination Class KV / - |
8 / 3 |
|
Surge Voltage Category |
Ⅲ |
Competitive Advantage:
Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand
Drawing Photo
