| Place of Origin: | Guangdong,China |
| Brand Name: | SCED |
| Certification: | UL,CE,CUL,CQC,VDE etc. |
| Model Number: | TB1450a-06-C |
| Minimum Order Quantity: | 500 Piece/Pieces |
|---|---|
| Price: | USD 2.1-4.2 Per PCS |
| Packaging Details: | Standard Master Carton Dimension: 341 x 273 x 198mm |
| Delivery Time: | 5-20 Working Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000000 Pole/Poles per Month |
| Pitch: | 17mm | Poles: | 9 Poles |
|---|---|---|---|
| Color: | Black | Voltage: | 600V |
| Current: | 57A | Screw: | M5 |
| Stripping Length: | 12-16mm | Torque: | 18-20 Lbf.in |
| Wire Range: | 20-6 AWG | Insulation Material: | PBT |
| High Light: | barrier type terminal block,pcb terminal blocks |
||

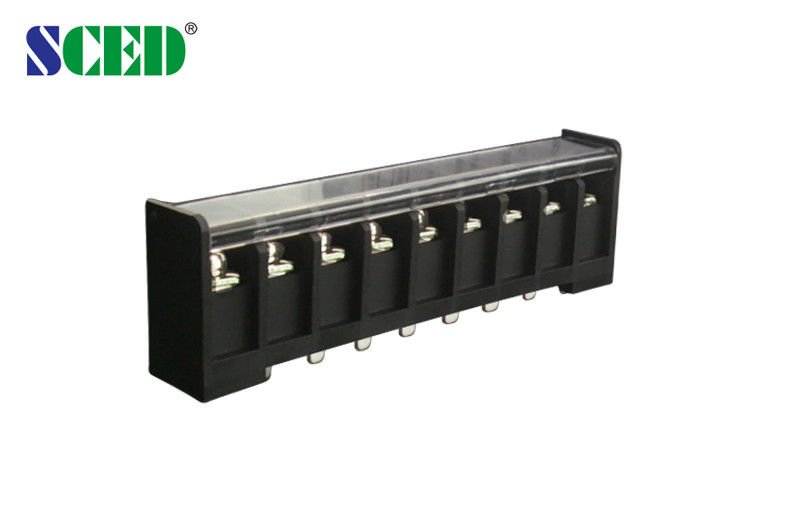

Black Brass Barrier Terminal Block with Plastic Cover 600V 57A 17mm Pitch
Detailed product Description:
Pitch 17.00mm, 600V 57A, 9P, Barrier Terminal Blocks, Power Terminal Blocks
Wire Inlet: ■Right angle wire inlet
Levels: ■Single Level
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
Frequency Converters, Server Site, PCB, Switch, Power Supply, Industry Control, Automation, Rail Transportation, Communication, Security, Medical Equipment, Military etc..

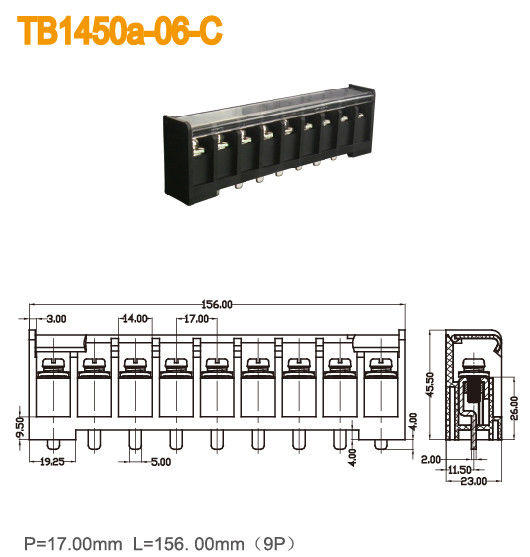

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 600 / 57 | 600 / 57 | 600 / 5 |
| Wire Range AWG | 20-6 | 20-6 | 20-6 |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 800 / 57 | 1000 / 57 | 1000 / 57 |
| Rated Surge Voltage KV | 8 | 8 | 8 |
| Rated Connecting Capacity mm2 | 10 | ||
| Material | |||
| Insulation Material / Inflammability Class | PBT / UL94, V-0 | ||
| Terminal / Plating | Brass /Tin Plated | ||
| Screw / Plating | Steel / Nickel Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | 2.4x5.4 | ||
| Stripping Length mm | 12-16 | ||
| Screw / Torque / lbf.in | M 5 / 18-20 | ||
