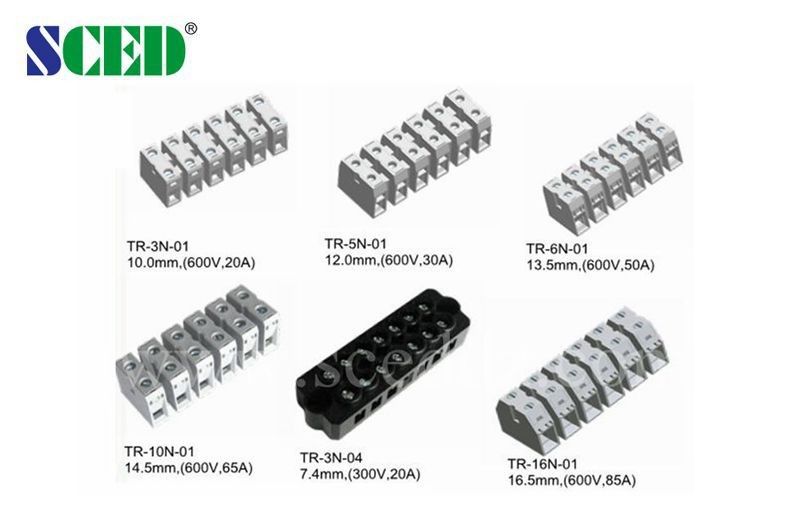

Grey 600V 50A Panel Mount Terminal Block Connector , PA66 Copper Conduction Board Connector
-
Highlight
panel mount terminal block connector
,pcb mount terminal blocks
-
TypePanel Mount
-
Pitch13.50mm
-
Number Of ContactsAny Poles Available
-
Wire Range8-26 AWG
-
Rated Voltage600V
-
Rated Current50A
-
ColorGrey
-
ApplicationsPCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
-
Place of OriginShenzhen, China
-
Brand NameSCED
-
CertificationUL, CE
-
Model NumberTR-6N-01
-
Minimum Order Quantity500
-
PriceGet latest price
-
Packaging DetailsStandard Export Carton
-
Delivery Time7-20 working days
-
Payment TermsT/T
-
Supply Ability1KK poles each monthly
Grey 600V 50A Panel Mount Terminal Block Connector , PA66 Copper Conduction Board Connector
600V 50A Panel Mount Terminal Block Connector Grey PA66 Copper Conduction Board Connector
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks
Applications:
Transformer, power control, electrical equipment, frequency converter etc.
Parameter:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
600 / 50 |
600 /150 |
|
|
Wire Range AWG |
8-26 |
8-26 |
|
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
800 / 57 |
1000 / 57 |
1000 / 57 |
|
Rated Surge Voltage KV |
8 |
8 |
8 |
|
Rated Connecting Capacity mm2 |
6 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66/ UL94, V-0 |
||
|
Conduction Board Plating |
Copper/Nickel Plated |
||
|
Clamp Cage Plating |
Brass / Nickel Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
7-8 |
||
|
Screw / Torque / lbf.in |
M 4 / 8-10.6 |
||
Competitive Advantage:
Stable good quality, Competitive price, Quickly response, Full range products for selection, Flexible to design the exact part per customers’ demand

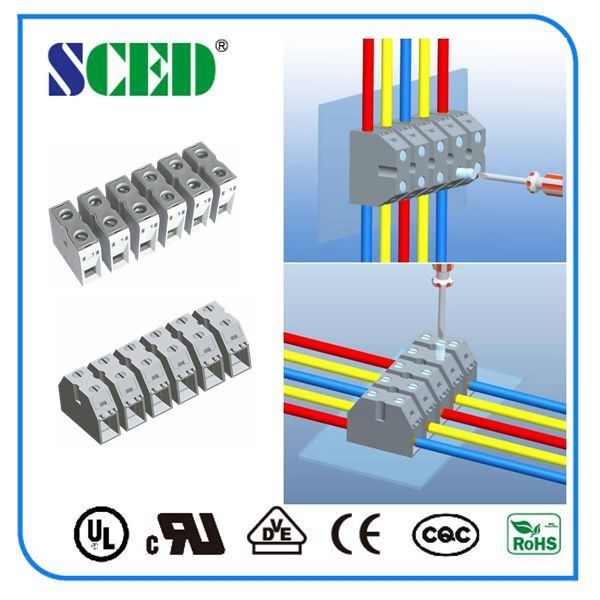

Drawing Photo
More items interest, please feel free to contact us.
Our products are sold all over the world, you can rest assured.
