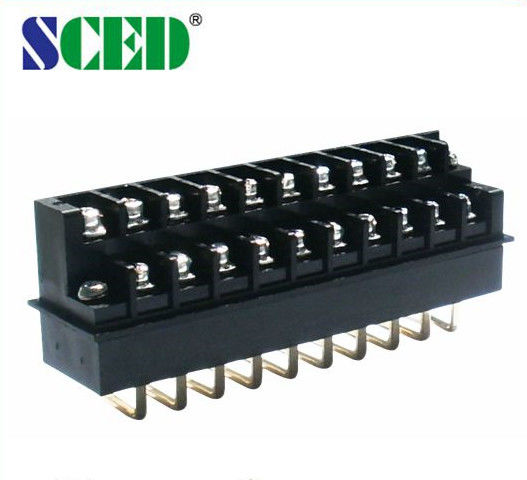

7.62mm UL CE Barrier Strip Terminal Block 300V 15A Black M3 Screw Connector For Power
-
Highlight
electrical terminal block
,pcb terminal blocks
-
ItemBarrier Type Terminal Block
-
ColorBlack
-
Number Of Contacts2P-22P
-
Pitch7.62mm
-
Rated Current15A
-
Rated Voltage300V
-
ApplicationsAutomation Control, Frequency Conversion, Power Supply, Etc.
-
Place of OriginChina
-
Brand NameSCED
-
CertificationUL, CE
-
Model NumberTB762-10V
-
Minimum Order Quantity500
-
PriceGet latest price
-
Packaging DetailsStandard Export Carton
-
Delivery Time7-20 working days
-
Payment TermsT/T
-
Supply Ability1KK poles each monthly
7.62mm UL CE Barrier Strip Terminal Block 300V 15A Black M3 Screw Connector For Power
7.62mm UL CE Barrier Strip Terminal Block 300V 15A Black M3 Screw Connector For Power
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300 / 15 |
|
300 / 10 |
|
Wire Range AWG |
14-22 |
|
14-22 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
250 / 24 |
320 / 24 |
400 / 24 |
|
Rated Surge Voltage KV |
4 |
4 |
4 |
|
Rated Connecting Capacity mm2 |
2.5 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PBT / UL94, V-0 |
||
|
Terminal / Plating |
Phosphor Bronze/ Gold Plated |
||
|
Screw / Plating |
Steel / Nickel Plated |
||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
φ1.5 |
||
|
Stripping Length mm |
7-8 |
||
|
Screw / Torque / lbf.in |
M 3 / 5-7 |
||

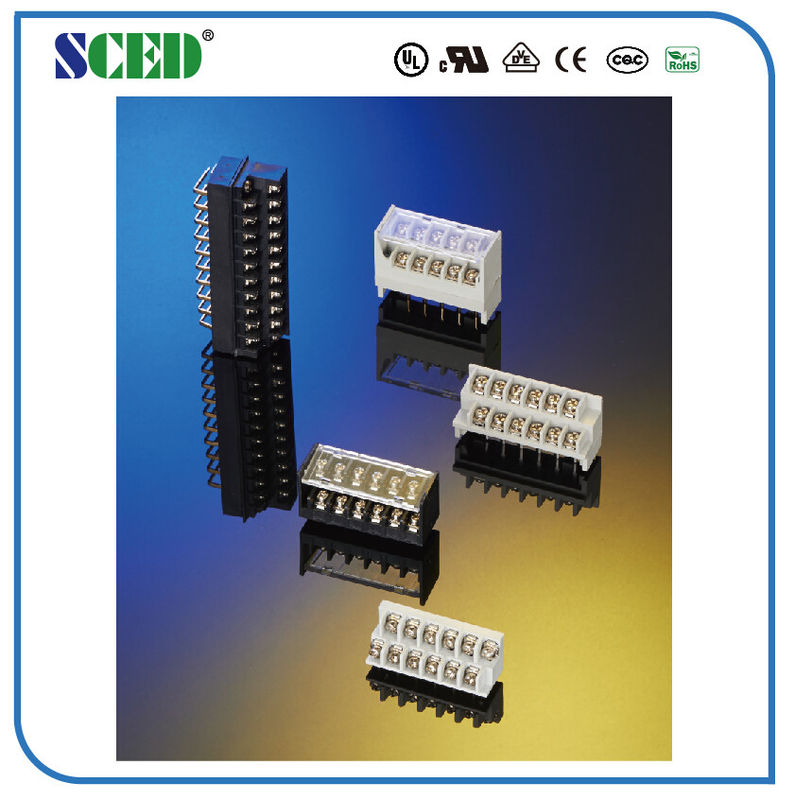

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Competitive Advantage:
Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand

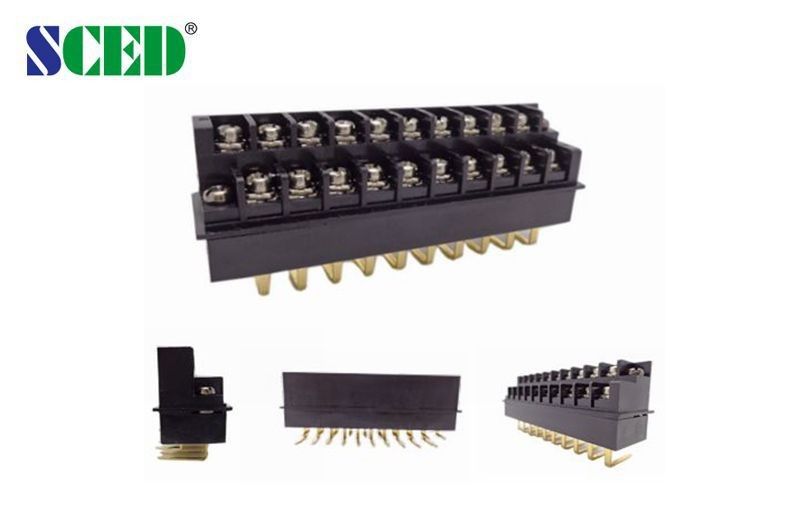

Drawing Photo
