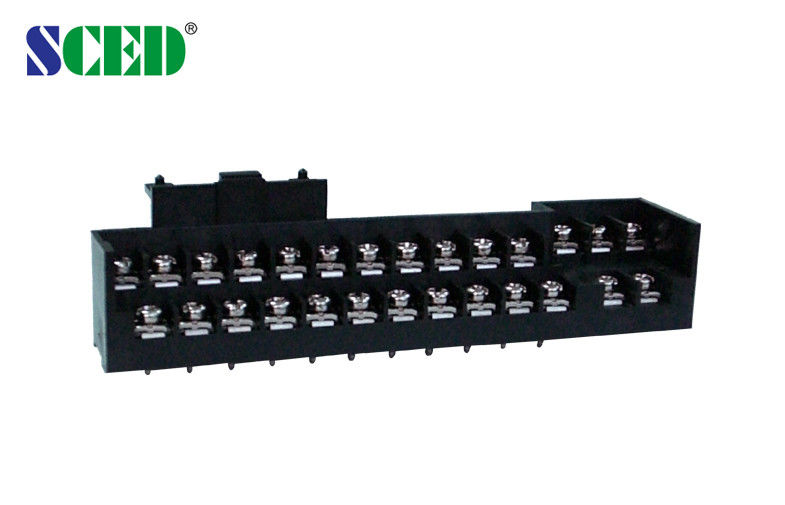

Double Rows Electric Terminal Block 27 Poles M3 Screw 10A 300V Brass Barrier

Double Rows Electric Terminal Block 27 Poles M3 Screw 10A 300V Brass Barrier

    • Double Rows  Electric Terminal Block 27 Poles M3 Screw 10A 300V Brass Barrier
    • Double Rows  Electric Terminal Block 27 Poles M3 Screw 10A 300V Brass Barrier
  • Double Rows  Electric Terminal Block 27 Poles M3 Screw 10A 300V Brass Barrier

    Product Details:

    Place of Origin: China
    Brand Name: SCED
    Certification: UL,CE,CUL,CQC and VDE etc.
    Model Number: TB820-00

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 Piece/Pieces
    Price: USD 0.9-1.9 per pcs
    Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
    Delivery Time: 5-20 working days
    Payment Terms: L/C, T/T
    Supply Ability: 1000000 Pole/Poles per Month
    Contact Now
    Detailed Product Description
    Level: Two Levels Type: Barrier
    Poles: 27 Poles Pitch: 8.2mm
    Current: 10A Screw: M3
    Voltage: 300V Wire Range: 14-22 AWG
    Terminal: Brass Torque: 5-7 Lbf.in

    Double Rows Power Terminal Blocks 27 Poles M3 Screw 10A 300V



    Detailed product Description:



    Pitch 8.20mm, 300V 10A, 27*2P, Barrier Terminal Blocks, Power Terminal Blocks

    Wire Inlet: ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

    Levels: □Single Level; ■Double levels; □Triple levels

    Standard color: Black. Other colors are also available and you can choose and order the color you want.



    Parameter and Drawing Specifications:

    UL Technical Data B C D
    Rated Voltage / Current V/A 300/10   300/10
    Wire Range AWG 14-22   14-22
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 320 / 24 320 / 24 400 / 24
    Rated Surge Voltage KV 4 4 4
    Rated Connecting Capacity mm2 2.5
    Material
    Insulation Material / Inflammability Class PBT / UL94, V-0
    Terminal / Plating Brass / Tin Plated
    Screw / Plating Steel / Nickel Plated
    Other Data
    PCB Hole Diameter mm φ1.6
    Stripping Length mm 6-7
    Screw / Torque / lbf.in M 3 / 5-7



    Applications:



    Our products can be used in below fileds and industries:

    1.Medical equipment, military, security, communication

    2.Electrical equipment, power supply, PCB

    3.Automation, industrial control, server site, frequency converters etc.



    Competitive Advantage:



    1. CE,UL,CUL,CQC, VDE, ISO9001,ISO1400 certificates etc.
    2. High quality but reasonable price
    3. OEM and ODM service
    4. Quick response and good after-sales service
    5. Full range products for selection

    Double Rows  Electric Terminal Block 27 Poles M3 Screw 10A 300V Brass Barrier
