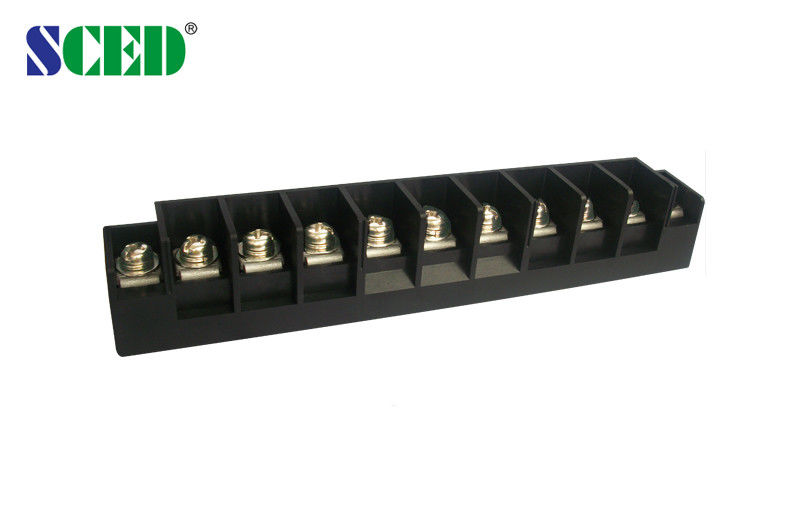

600v Plastic Barrier Terminal Block Connectors 11 Pin Barrier Strips 100A
-
Highlight
electrical terminal block
,pcb terminal blocks
-
LevelsSingle Levels
-
ApplicationsPCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
-
Number Of Contacts11P
-
Pitch20.20mm
-
Rated Current15A
-
TypeBarrier Terminal Block,Power Terminal Blocks, Electrical Terminal Blocks
-
Wire Range18-3 AWG
-
ColorBlack
-
Place of OriginChina
-
Brand NameSCED
-
CertificationUL, CE
-
Model NumberTB2100-00
-
Minimum Order Quantity200
-
PriceGet latest price
-
Packaging DetailsStandard Export Carton
-
Delivery Time7-20 working days
-
Payment TermsT/T
-
Supply Ability1KK poles each monthly
600v Plastic Barrier Terminal Block Connectors 11 Pin Barrier Strips 100A
600v Plastic Barrier Terminal Block Connectors 11 Pin Barrier Strips 100A
Parameter
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 600 / 100 | 600 / 100 | 600 / 5 |
| Wire Range AWG | 18-3 | 18-3 | 18-3 |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 1000 / 100 | 1000 / 100 | 1000 / 100 |
| Rated Surge Voltage KV | 8 | 8 | 8 |
| Rated Connecting Capacity mm2 | 25 | ||
| Material | |||
| Insulation Material / Inflammability Class | PBT / UL94, V-0 | ||
| Terminal / Plating | Brass /Tin Plated | ||
| Screw / Plating | Steel / Nickel Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | 2.9x10.4 | ||
| Stripping Length mm | 17-19 | ||
| Screw / Torque / lbf.in | M6 / 20-22 | ||
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand

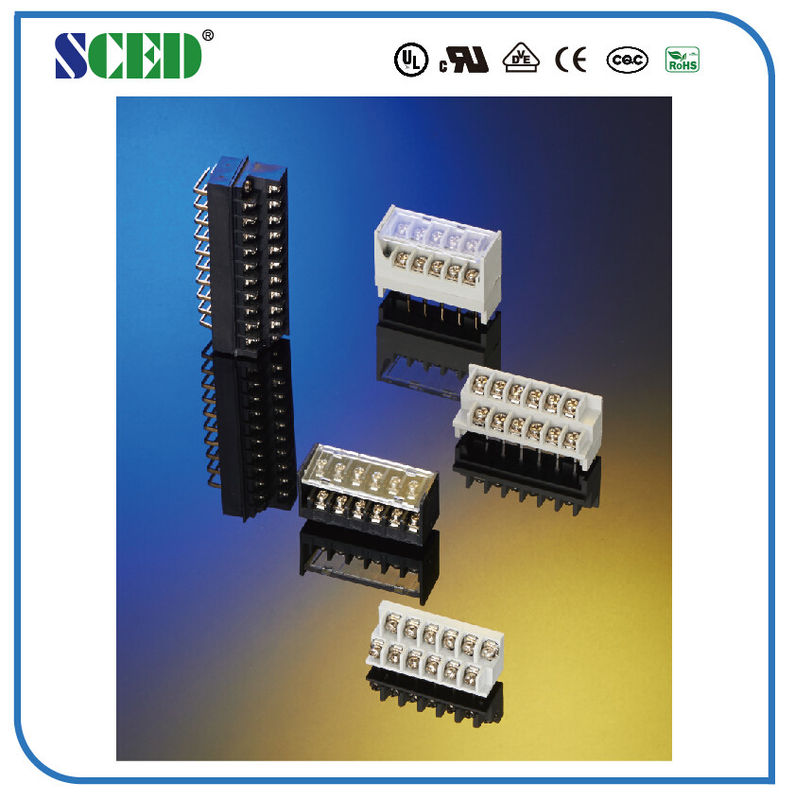

Drawing Photos:
