3.50mm Male and Female Connectors Plug In Terminal Blocks 300V 8A Plugs And Sockets
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..
■Single Level; □Double Levels; □Triple Levels

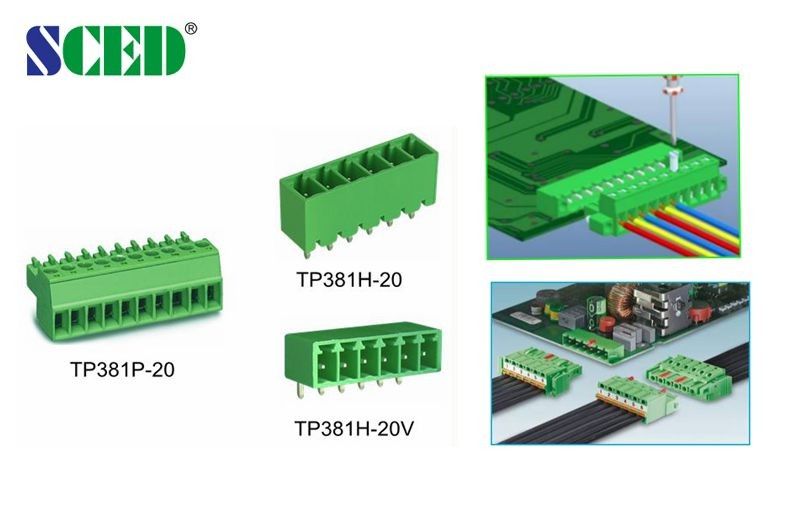

This female plug match with male sockets’ series: TP381H-20, TP381H-20V, TP381H-22, TP381H-22V
Standard color: Green. Other colors also available, please refer to below How to Order and select the color
you want.
Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors
How to order:

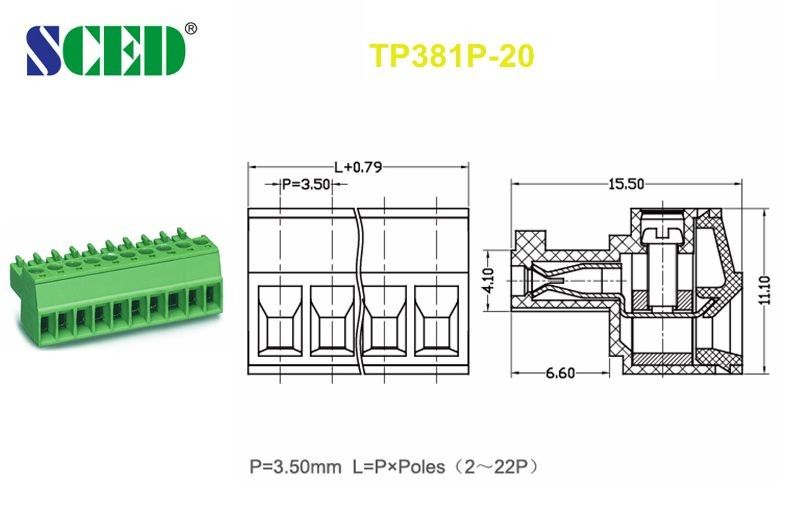

Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300 / 8 |
|
|
|
Wire Range AWG |
16-30 |
|
|
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
160 / 8 |
160 / 8 |
320 / 8 |
|
Rated Surge Voltage KV |
2.5 |
2.5 |
2.5 |
|
Rated Connecting Capacity mm2 |
1.5 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Clamp Cage / Plating |
Brass / Nickel Plated |
||
|
Terminal / Plating |
Phosphor Bronze / Tin Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
7 |
||
|
Screw / Torque / lbf.in |
M2 / 2-2.2 |
||
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
Drawing Photo
