Feed Through PBT Screw Terminal Block Connector 600V 40A 13.00mm

Feed Through PBT Screw Terminal Block Connector 600V 40A 13.00mm

  • Feed Through PBT Screw Terminal Block Connector 600V 40A  13.00mm
  • Feed Through PBT Screw Terminal Block Connector 600V 40A  13.00mm
  • Feed Through PBT Screw Terminal Block Connector 600V 40A  13.00mm
Feed Through PBT Screw Terminal Block Connector 600V 40A  13.00mm
Product Details:
Place of Origin: SHENZHEN CHINA
Brand Name: SCED
Certification: CE ROHS
Model Number: TD40-01-C
Payment & Shipping Terms:
Minimum Order Quantity: 200
Packaging Details: Standard Export Carton Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
Delivery Time: 7-20 working days
Payment Terms: L/C, T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Type: Feed Through Pitch: 13.00mm
Screw: Steel M5 Torque: 16-18 Ibf.in
Conduction Board: Brass Insulation Material: PBT
Color: Black Voltage: 600V
High Light:

pcb mount terminal blocks

,

panel mount terminal block connector

600V 40A Connector  Panel Mount Terminal Block 13.00mm PBT Screw Terminal Connector



1. Quick Detail:



The current : 40A

Voltage: 600V

Insulation Material: PBT

 Inflammability Classl: UL94, V-0



2. Description:


1. It can realize a variety of ways to entered more into the line of, such as into line, up and down into
the line before and after, a into a,



2. You can configure the article identifies the short, protective cover plate, sheet in the attachment.



3. Current: 40A.



4. Voltage: 600V



3. Applications:



1. PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting,



2. Industry Control, Automation,



3. Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,



Elevator, etc..



4. Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 40

600 / 40

600 / 5

Wire Range                               AWG

8-22

8-22

8-22

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current                V/A

800 / 40

1000 / 40

1000 / 40

Rated Surge Voltage                     KV

8

8

8

Rated Connecting Capacity           mm2

8

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Conduction Board / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Nickel Plated

Other Data



Stripping Length                    mm

8-10

Screw / Torque                    / lbf.in

M5 / 16-18



5. Feature Advantage:



1. Perforation terminal block is widely used in Industrial Control, Power Supply, Energy Saving, etc.


2. It can be stackable to be different poles, easy to be mounted on PCB or control board,


3. It has very good mechanical properties and electrical properties,





6. Competitive Advantage:



1.Good OEM & ODM business ability, 31 production lines meet your shipping requirement;



2. Your order will be dealt with promptly by a friendly and conscientious team, committed to providing a  high level of service;



3. Discount offered is based on qty.

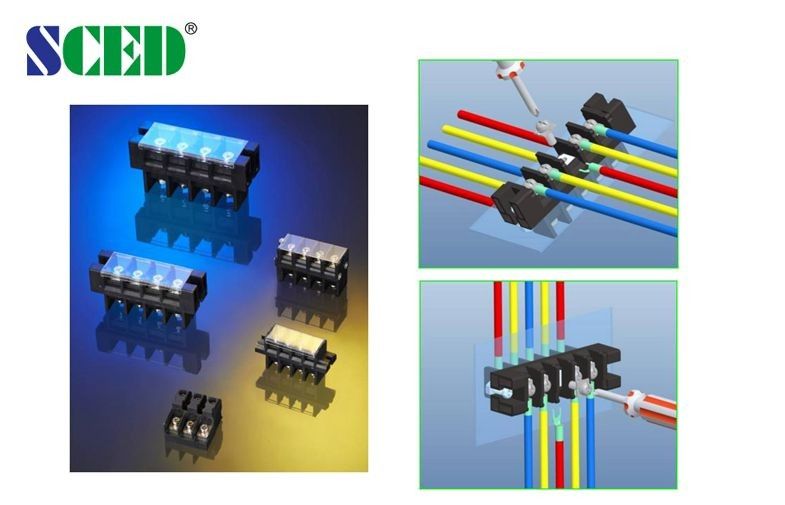

Feed Through PBT Screw Terminal Block Connector 600V 40A  13.00mm 0

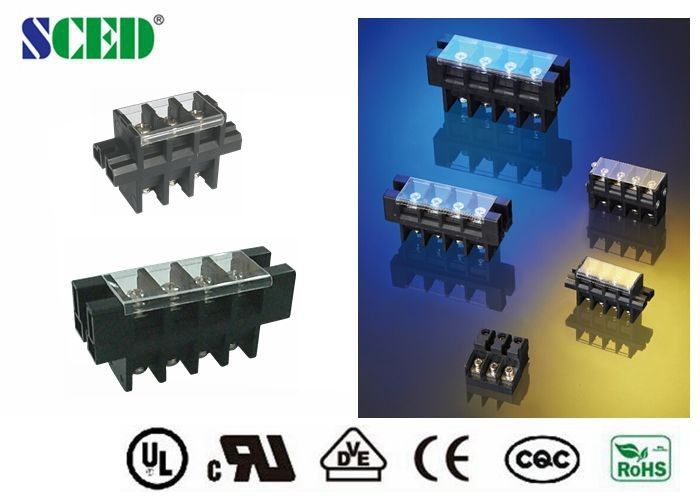

Feed Through PBT Screw Terminal Block Connector 600V 40A  13.00mm 1

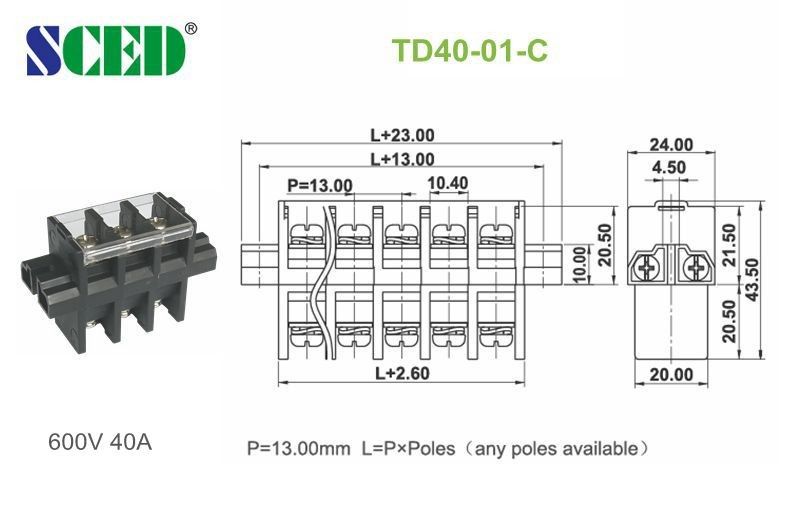

Feed Through PBT Screw Terminal Block Connector 600V 40A  13.00mm 2
