Type: | Panel Mount Terminal Block, Electrical Terminal Block | Pitch: | 7.40mm |
---|---|---|---|
Number Of Contacts: | 7P | Wire Range: | 16-22 |
Rated Voltage: | 300V | Rated Current: | 20A |
Color: | Black | Applications: | PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control |
High Light: | panel mount terminal block connector,pcb mount terminal blocks |

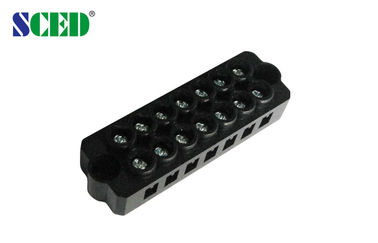

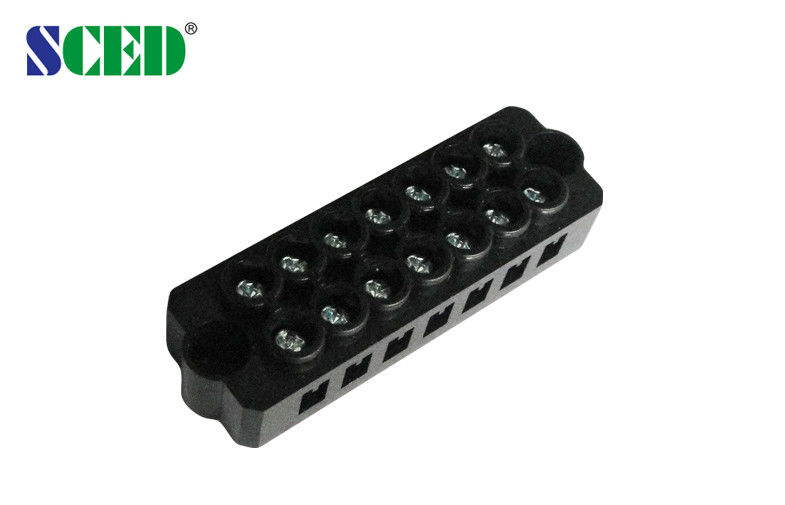

Panel Mount Terminal Connector Black 7.40mm 300V 20A 7P Feed Through Terminal

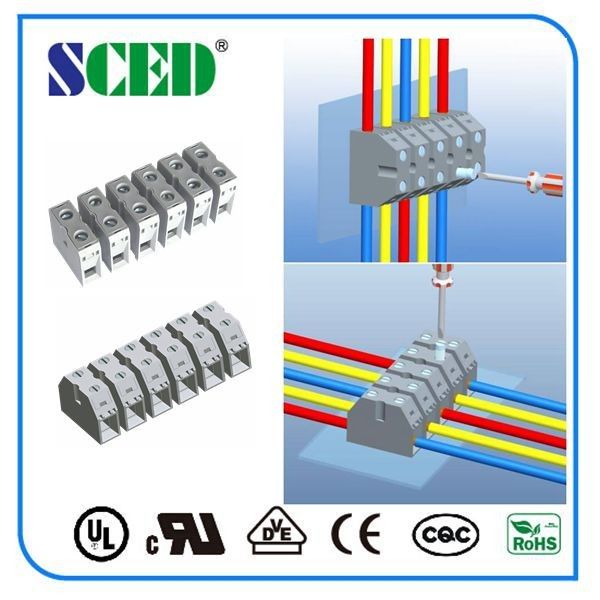

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.
Feed through terminal blocks, Power terminal blocks, Electrical terminal Blocks
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
UL Technical Data |
B |
C |
D |
Rated Voltage / Current V/A |
300 / 20 |
300 / 20 |
|
Wire Range AWG |
16-22 |
16-22 |
|
IEC Technical Data |
|
||
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
Contamination Class |
3 |
2 |
2 |
Rated Voltage / Current V/A |
250 / 20 |
320 / 20 |
400 / 20 |
Rated Surge Voltage KV |
4 |
4 |
4 |
Rated Connecting Capacity mm2 |
4 |
||
Material |
|
||
Insulation Material / Inflammability Class |
PL/ UL94, V-0 |
||
Conduction Board Plating |
|
||
Clamp Cage Plating |
Brass / Tin Plated |
||
Screw / Plating |
Steel / Nickel Plated |
||
Other Data |
|
||
Stripping Length mm |
5-6 |
||
Screw / Torque / lbf.in |
M 3 / 4.4-5.3 |

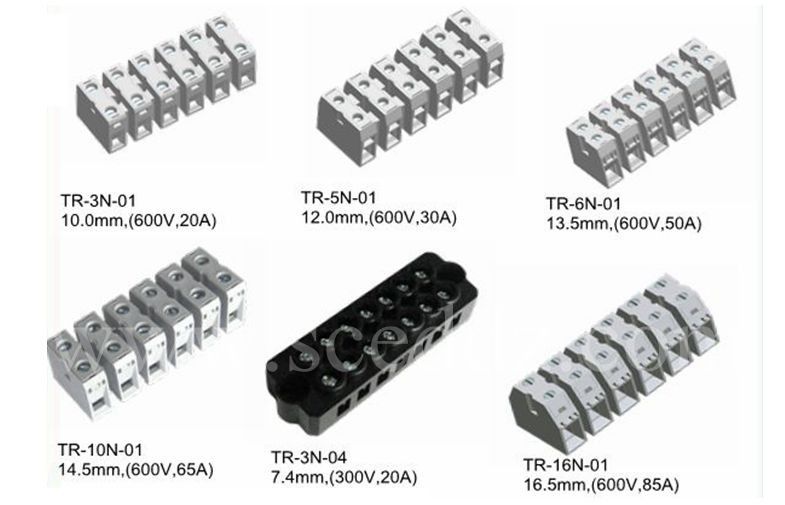

Drawing Photos:
