7.62mm Barrier Strip Connector Clamp Pcb Screw Terminal 300v Two Row

7.62mm Barrier Strip Connector Clamp Pcb Screw Terminal 300v Two Row

Products - Barrier Terminal Block
  • Highlight

    electrical terminal block

    ,

    barrier type terminal block

  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Color
    Black
  • Pitch
    7.62mm
  • Rated Voltage
    300V
  • Type
    Barrier Terminal Block,Power Terminal Blocks,
  • Wire Range
    14-22
  • Poles
    2-20 Poles
  • Material
    PBT
  • Place of Origin
    China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TB762-00F-D3-C
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

7.62mm Barrier Strip Connector Clamp Pcb Screw Terminal 300v Two Row

  • 7.62mm Barrier Strip Connector Clamp Pcb Screw Terminal 300v Two Row
  • 7.62mm Barrier Strip Connector Clamp Pcb Screw Terminal 300v Two Row
  • 7.62mm Barrier Strip Connector Clamp Pcb Screw Terminal 300v Two Row
Get Price Contact Now

7.62mm Barrier Strip Connector Clamp Pcb Screw Terminal 300v Two Row



Details:



7.62mm pitch barrier type strips 300V 15A 2-20 Poles  14-22 AWG with Cover



Parameter





UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 15



300 / 10

Wire Range                               AWG

14-22



14-22

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current                V/A

250 / 24

320 / 24

400 / 24

Rated Surge Voltage                     KV

4

4

4

Rated Connecting Capacity           mm2

2.5

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass /Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data



PCB Hole Diameter               mm

φ1.2x3.4

Stripping Length                    mm

7-8

Screw / Torque                    / lbf.in

M 3 / 5-7



Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

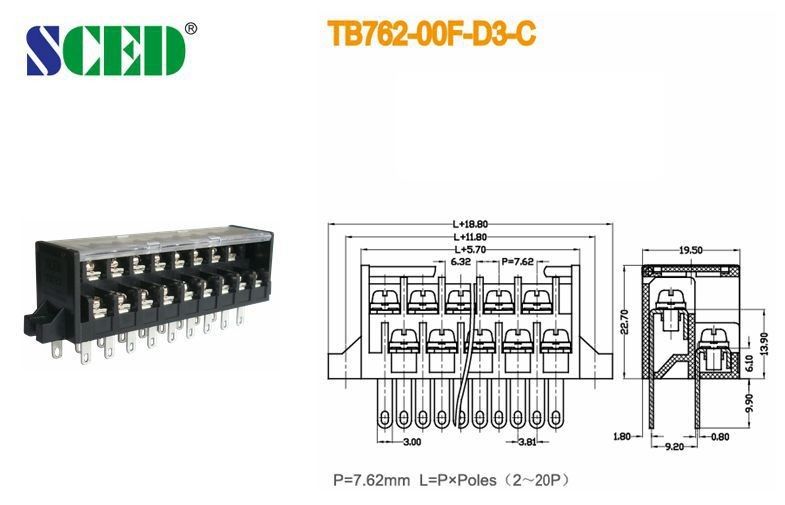

 7.62mm Barrier Strip Connector Clamp Pcb Screw Terminal 300v Two Row 0

Applications:



PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand



Tag:

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal block connectors

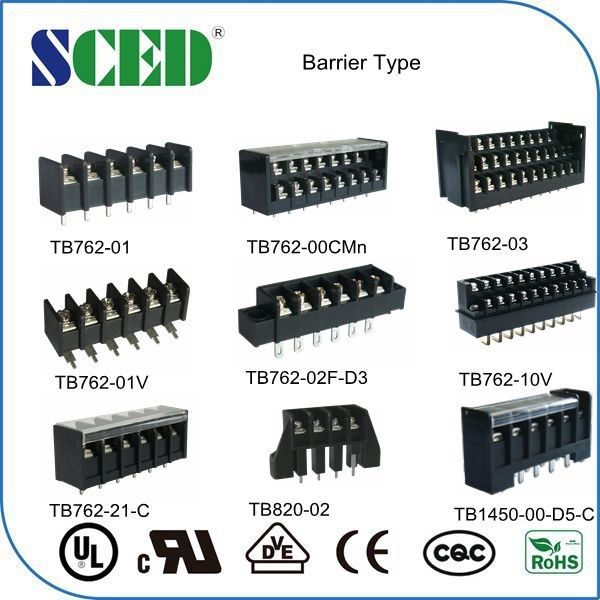

7.62mm Barrier Strip Connector Clamp Pcb Screw Terminal 300v Two Row 1
