Place of Origin: | Shenzhen, China |
Brand Name: | SCED |
Certification: | UL, CE |
Model Number: | TP381H-20 |
Minimum Order Quantity: | 500 |
---|---|
Price: | Get latest price |
Packaging Details: | Standard Export Carton |
Delivery Time: | 7-20 working days |
Payment Terms: | T/T |
Supply Ability: | 1KK poles each monthly |
Wire Inlet: | Vertical Wire Inlet | Applications: | PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control |
---|---|---|---|
Color: | Green | Number Of Contacts: | 2P-22P |
Pitch: | 3.50mm | Rated Current: | 8A |
Rated Voltage: | 300V | Type: | Plug In Terminal Blocks,Pluggable Terminal Blocks, Plug-in Terminal Blocks |
High Light: | power distribution terminal block,electric terminal block |

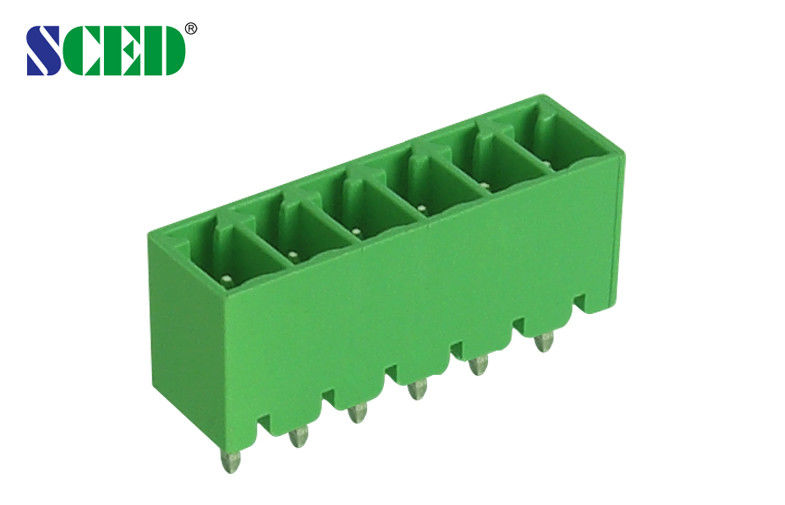

3.50mm Wiring Terminal Block 2 Pin - 22 Pin Vertical Wire Inlet
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..

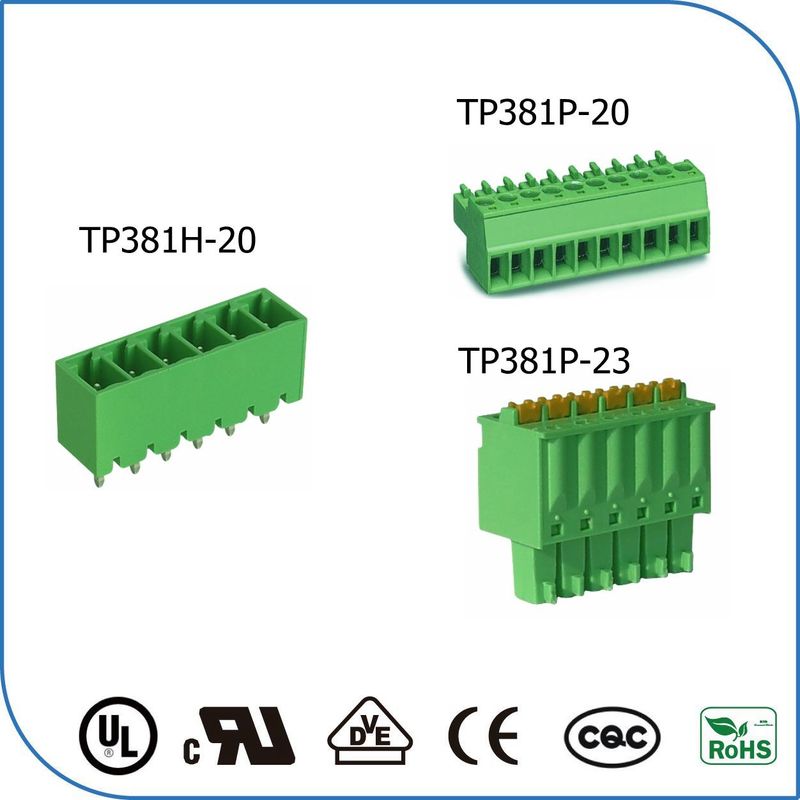

Pitch 3.50mm Male Plug In Terminal Blocks with Vertical wire inlet 300V 8A, 2P - 22P
□Right angle wire inlet; ■Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double Levels; □Triple Levels
This header match with plug series: TP381P-20, TP381P-21, TP381P-22, TP381P-23
Standard color: Green. Other colors also available, please refer to below How to Order and select the color
you want.
Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors
Parameter and Drawing Specifications:
UL Technical Data |
B |
C |
D |
Rated Voltage / Current V/A |
300 / 8 |
|
|
Wire Range AWG |
|
|
|
IEC Technical Data |
|
||
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
Contamination Class |
3 |
2 |
2 |
Rated Voltage / Current V/A |
160 / 8 |
160 / 8 |
320 / 8 |
Rated Surge Voltage KV |
2.5 |
2.5 |
2.5 |
Material |
|
||
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
Terminal / Plating |
Brass / Tin Plated |
||
Other Data |
|
||
PCB Hole Diameter mm |
φ1.2 |
||
PinDimension mm |
0.8 x 0.8 |
Drawing Photo
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
Contact Person: Martin Liang
Tel: +8613902441660
Fax: +86-755-28769522
