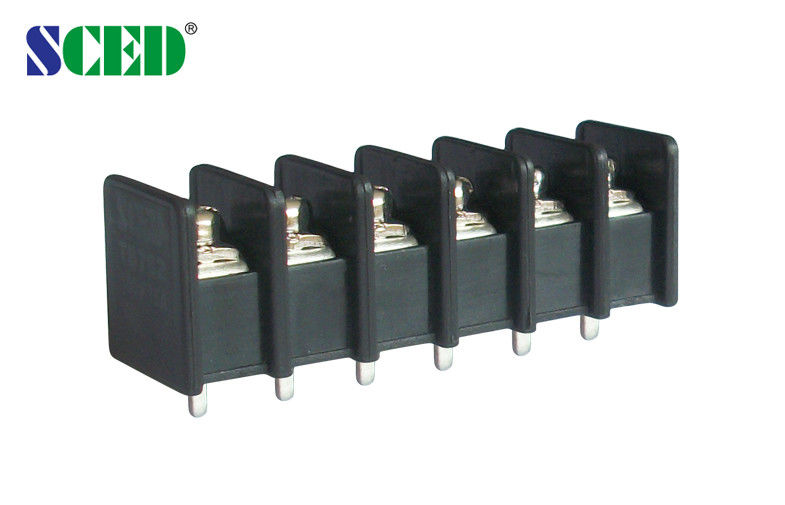

PBT Barrier Terminal Block 7.62mm Pitch 15A 2-24 Poles Brass PCB Terminal Connector

PBT Barrier Terminal Block 7.62mm Pitch 15A 2-24 Poles Brass PCB Terminal Connector

  • PBT Barrier Terminal Block 7.62mm Pitch 15A 2-24 Poles Brass PCB Terminal Connector
  • PBT Barrier Terminal Block 7.62mm Pitch 15A 2-24 Poles Brass PCB Terminal Connector
  • PBT Barrier Terminal Block 7.62mm Pitch 15A 2-24 Poles Brass PCB Terminal Connector
PBT Barrier Terminal Block 7.62mm Pitch 15A 2-24 Poles Brass PCB Terminal Connector
Product Details:
Place of Origin: Guangdong,China
Brand Name: SCED
Certification: UL,CUL,CQC,CE, VDE etc.
Model Number: TB762-01-D1
Payment & Shipping Terms:
Minimum Order Quantity: 500 Piece/Pieces
Price: USD 0.05-0.12
Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
Delivery Time: 5-20 days
Payment Terms: L/C, T/T
Supply Ability: 1000000 Pole/Poles per Month
Contact Now
Detailed Product Description
Pitch: 7.62mm Current: 15A
Voltage: 300V Poles: 2-24 Poles
Plastic: PBT Screw: M3
Inflammability Class: UL94-V0 Contact Resistance: Less Than 8mΩ
Insulation Resistance: Above DC500V, 500MΩ Rated Surge Voltage: No Abnormal Within 1 Minute
High Light:

barrier type terminal block

,

pcb terminal blocks

PBT Barrier Terminal Block 7.62mm Pitch 15A 2-24 Poles Brass PCB Terminal Connector



Detailed product Description:



Pitch 7.62mm, 300V 15A, 2P-22P, Barrier Terminal Blocks, Power Terminal Blocks

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Level;  □Double levels;  □Triple levels

Standard color: Black. Other colors also available.



Applications:



It can be used in the followings:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc.

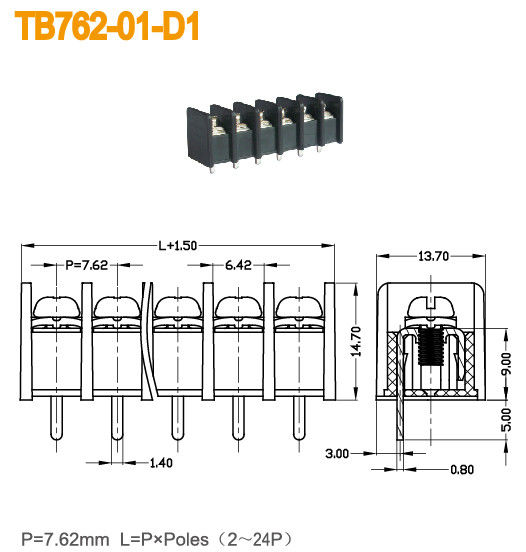

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300/15



300/10

Wire Range                       AWG

14-22



14-22

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

250 / 24

320 / 24

400 / 24

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

2.5

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data



PCB Hole Diameter                  mm

φ1.8

Stripping Length                    mm

7-8

Screw / Torque                    / lbf.in

M 3 / 5-7



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. 10 main series and more than 1000 models for selection
  5. OEM and ODM service can be provided
