Place of Origin: | Shenzhen, China |
Brand Name: | SCED |
Certification: | UL, CE |
Model Number: | TR20-01-BM0 |
Minimum Order Quantity: | 500 |
---|---|
Price: | Get latest price |
Packaging Details: | Standard Export Carton |
Delivery Time: | 7-20 working days |
Payment Terms: | T/T |
Supply Ability: | 1KK poles each monthly |
Type: | Panel Mount Terminal Block,Barrier Terminal Blocks, Power Terminal Blocks, Electrical Terminal Block | Pitch: | 9.50mm |
---|---|---|---|
Number Of Contacts: | 2P-24P | Wire Range: | 24-12 Awg |
Rated Voltage: | 600V | Rated Current: | 20A |
Color: | Black | Applications: | PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control |
High Light: | panel mount terminal block connector,pcb mount terminal blocks |

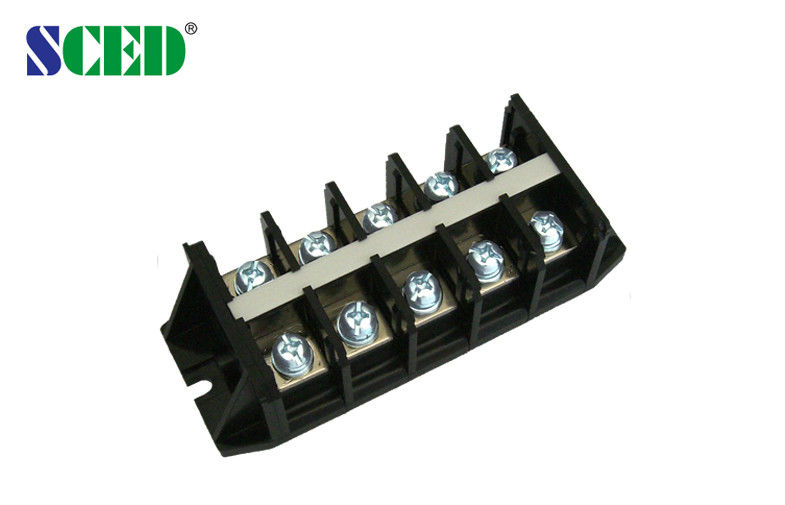

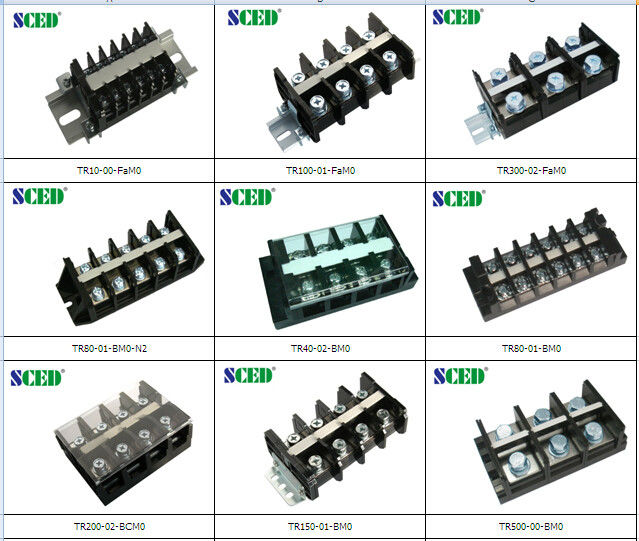

PCB Panel Mounted Terminal Block 2P - 24P High Voltage 600V 20A
Spec.
■Right angle wire inlet;
■Single Level;
Panel Mount on PCB Board
Tag: Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks
Applications:
PCB,
Frequency Converters,
Server Site, Switch,
Power Supply, etc..
Specifications:
UL Technical Data |
B |
C |
D |
Rated Voltage / Current V/A |
600 / 20 |
600 / 20 |
|
Wire Range AWG |
24-12 |
24-12 |
|
IEC Technical Data |
|
||
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
Contamination Class |
3 |
2 |
2 |
Rated Voltage / Current V/A |
800 /10 |
1000 / 20 |
1000 / 20 |
Rated Surge Voltage KV |
8 |
8 |
8 |
Rated Connecting Capacity mm2 |
2 |
||
Material |
|
||
Insulation Material / Inflammability Class |
PC / UL94, V-0 |
||
Conduction Board/ Plating |
Brass /Nickel Plated |
||
Screw / Plating |
Steel / Zinc Plated |
||
Other Data |
|
||
Stripping Length mm |
8-9 |
||
Screw Torque mm |
M3.5 /7-10 |
Feature Advantage:
1. Combined to be different positions
2. Products can be mounted on PCB
3. Marked with different labels, assembled with or without protection cover, added with or without all sorts of flat jumpers.
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Drawing:
