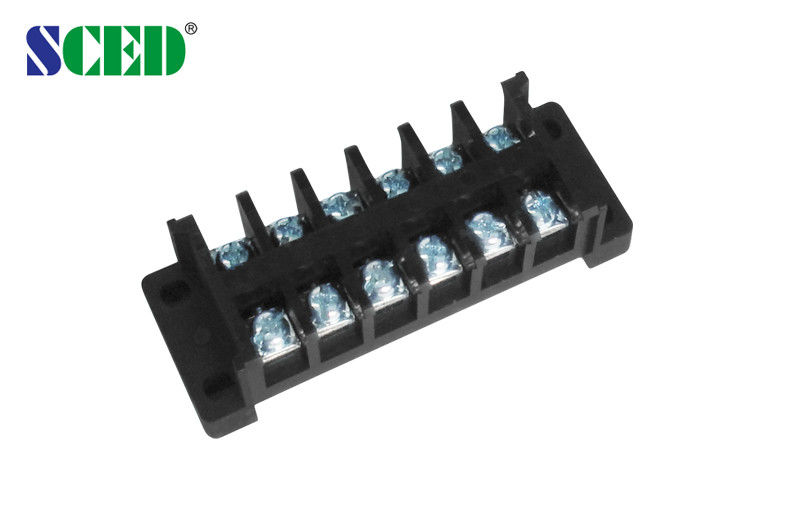

10mm Electrical Terminal Block Connectors 300v 20A Barrier Screw Clamp Terminal

10mm Electrical Terminal Block Connectors 300v 20A Barrier Screw Clamp Terminal

  • 10mm Electrical Terminal Block Connectors 300v 20A Barrier Screw Clamp Terminal
  • 10mm Electrical Terminal Block Connectors 300v 20A Barrier Screw Clamp Terminal
10mm Electrical Terminal Block Connectors 300v 20A Barrier Screw Clamp Terminal
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TR20-03
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Type: Panel Mount Terminal Block,Barrier Terminal Blocks, Power Terminal Blocks, Electrical Terminal Block Pitch: 10.00mm
Number Of Contacts: 1-20 P Wire Range: 24-12 Awg
Rated Voltage: 300V Rated Current: 20A
Color: Black Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
High Light:

panel mount terminal block connector

,

pcb mount terminal blocks



10mm Electrical Terminal Block Connectors 300v 20A Barrier Screw Clamp Terminal


■Right angle wire inlet;
■Single Level;



Tag: Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks


Applications:


PCB,

Server Site, Switch,

Power Supply,

Electric Lighting, Industry Control, etc..

Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current               V/A

300 / 20

300 / 10



Wire Range                                AWG

24-12

24-12



IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current                 V/A

400 /20

630 / 20

800 / 20

Rated Surge Voltage                      KV

6

6

6

Rated Connecting Capacity           mm2

1.25

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Conduction Board/ Plating

Brass /Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                mm

9-10

Screw Torque                    mm

M3.5 / 7-10



Feature Advantage:



1. PCB type mount panel

2. Hole to hole is 19.00mm Pitch: 10.00mm

3. Plastic housing is PC (UL94 V-0), operating temperature: -40℃~+120℃


Competitive Advantage:


1. Stable good quality

2. Competitive price

3. Quickly response

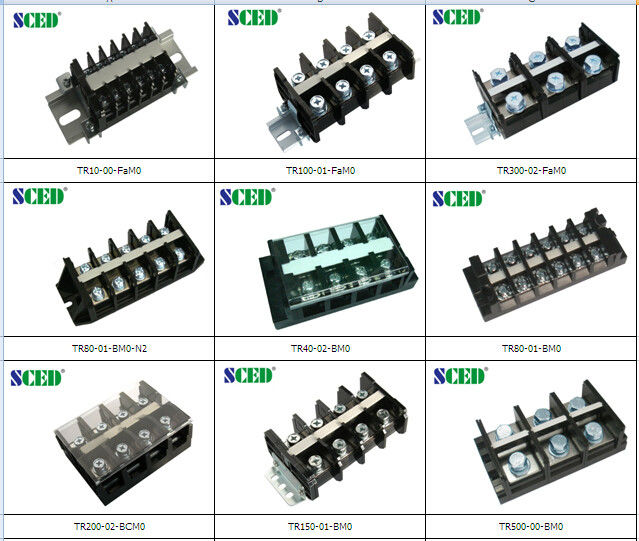

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand



Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:
10mm Electrical Terminal Block Connectors 300v 20A Barrier Screw Clamp Terminal 0



Drawing:
10mm Electrical Terminal Block Connectors 300v 20A Barrier Screw Clamp Terminal 1
