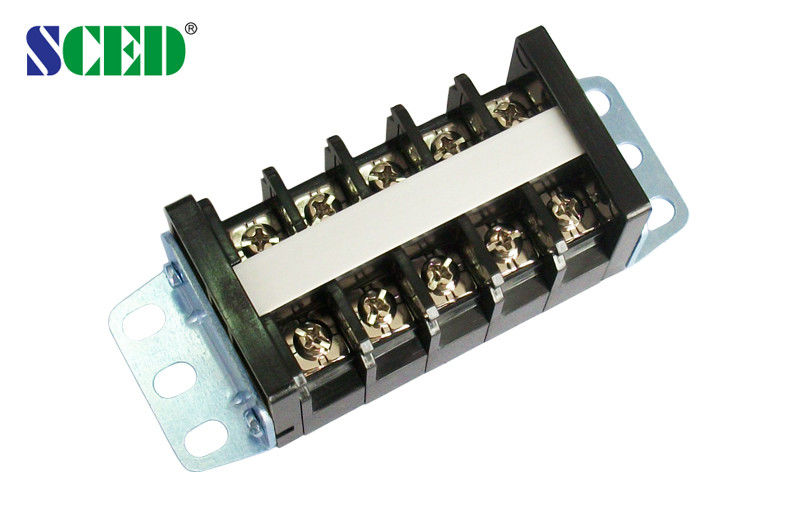

Black Din Rail Panel Terminal Block M4 12.00mm 20-10 AWG Wire Range

Black Din Rail Panel Terminal Block M4 12.00mm 20-10 AWG Wire Range

  • Black Din Rail Panel Terminal Block M4 12.00mm 20-10 AWG Wire Range
  • Black Din Rail Panel Terminal Block M4 12.00mm 20-10 AWG Wire Range
Black Din Rail Panel Terminal Block M4 12.00mm 20-10 AWG Wire Range
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TR30-02-BM0
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Type: Panel Mount Terminal Block,Barrier Terminal Blocks, Power Terminal Blocks, Electrical Terminal Block Pitch: 12.00mm
Number Of Contacts: Any Poles Available Wire Range: 20-10 AWG
Rated Voltage: 600V Rated Current: 30A
Color: Black Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
Material: PC Screw: M4
High Light:

panel mount terminal block connector

,

pcb mount terminal blocks



Black Din Rail Panel Terminal Block M4 12.00mm 20-10 AWG Wire Range

Quick Detail:

1. Combined to be different positions,
2. Mounted into Din Rail Type
3. Good mechanical properties and electrical performance,
4. They are wire to wire type, we can mount them into different direction, to let the current front in and back out, top in and bottom out, one in one out or one in more out.

Spec.

1. They also can be marked with different labels, assembled with or without protection cover, added with or without all sorts of flat jumpers.
2. Materials: Plastic housing is PC (UL94 V-0), operating temperature: -40℃~+120℃
                    Conduction board is high quality brass, screw using high quality steel.


Applications:

Frequency Converters,

Server Site,
Power Supply,

Industry Control, Elevator, etc..

Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 30

600 / 30



Wire Range                               AWG

20-10

20-10



IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current               V/A

630 /30

800 / 30

1000 / 30

Rated Surge Voltage                    KV

8

8

8

Rated Connecting Capacity         mm2

5.5

Material



Insulation Material / Inflammability Class

PC / UL94, V-0

Conduction Board/ Plating

Brass /Nickel Plated

Screw / Plating

Steel / Nickel Plated

Other Data



Stripping Length                mm

9-10

Screw Torque                    mm

M4 / 10.6-15



Competitive Advantage:


1. Product with CE RoHS

2. Product with reasonable price

3. 24 hours quick reply

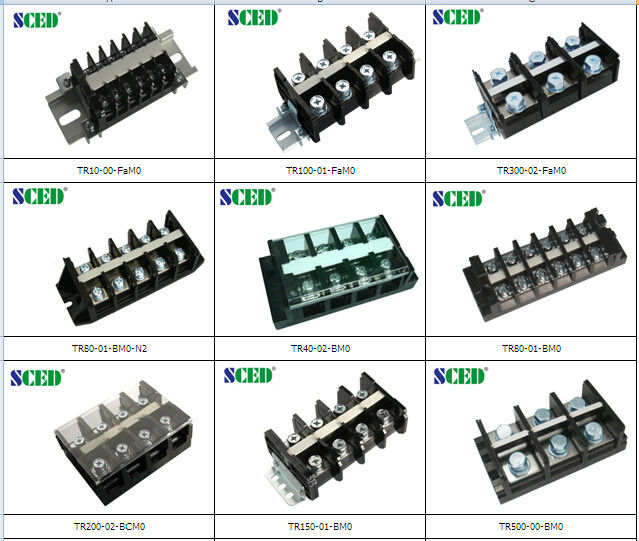

4. Many series of Terminal blocks

5. Supply OEM/ ODM

6. Support R&D



Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:
Black Din Rail Panel Terminal Block M4 12.00mm 20-10 AWG Wire Range 0



Drawing:

Black Din Rail Panel Terminal Block M4 12.00mm 20-10 AWG Wire Range 1
