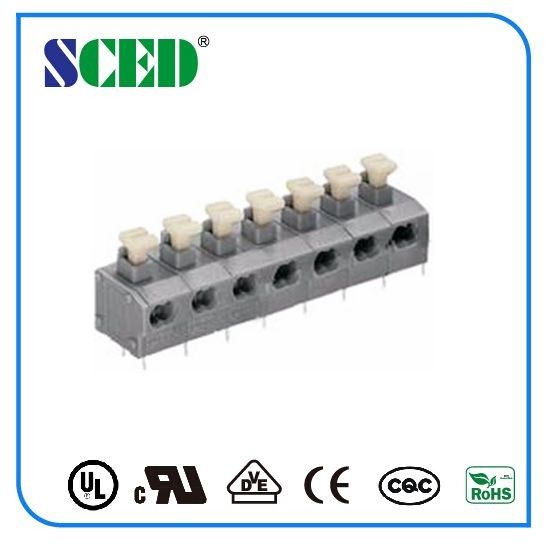

7.62mm Center Spacing Screwless Terminal Block Grey Spring Brass

7.62mm Center Spacing Screwless Terminal Block Grey Spring Brass

  • 7.62mm Center Spacing Screwless Terminal Block Grey Spring Brass
7.62mm Center Spacing Screwless Terminal Block Grey Spring Brass
Product Details:
Place of Origin: Guanfdong China
Brand Name: SCED
Certification: UL,CE,CUL,CQC,VDE etc.
Model Number: TJ508-13
Payment & Shipping Terms:
Minimum Order Quantity: 500 Piece/Pieces
Price: USD 0.03-0.08 Per Pole
Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
Delivery Time: 5-20 days
Payment Terms: L/C, T/T
Supply Ability: 1000000 Pole/Poles per Month
Contact Now
Detailed Product Description
Type: Screwless Pitch: 7.62mm
Color: Grey Insulation Resistance: Above DC500V, 500MΩ
Contact Resistance: Less Than 8mΩ Inflammability Class: UL94, V-0
Rated Surge Voltage: No Abnormal Within 1 Minute Plastic: PA66
Plating: Tin Plated Current: 10A
High Light:

screwless terminal block connector

,

spring terminal block connector

7.62mm Center Spacing Screwless Terminal Block Grey Spring Brass



Detailed product Description:



Pitch 7.62mm, 300V 10A, 2P-16P, Spring Terminal blocks, Screwless terminals

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Deck;  □Double decks;  □Triple decks

Standard color: Grey. Other colors also available.



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300/10



300/10

Wire Range                       AWG

18-24



18-24

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

400 / 10

630 / 10

1000 / 10

Rated Surge Voltage                 KV

4

6

6

Rated Connecting Capacity           mm2

1.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Spring / Plating

Stainless Steel / -

Terminal / Plating

Brass / Tin Plated

Other Data



PCB Hole Diameter                  mm

φ1.2

Stripping Length                    mm

9-10



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand7.62mm Center Spacing Screwless Terminal Block Grey Spring Brass 07.62mm Center Spacing Screwless Terminal Block Grey Spring Brass 1
