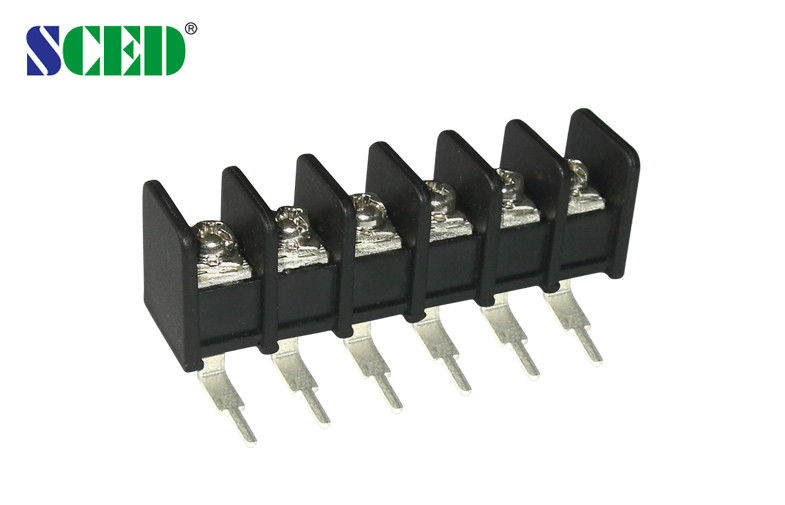

2-32 Poles Electrical Terminal Block Pitch 8.25mm 300V 20A PBT Brass

2-32 Poles Electrical Terminal Block Pitch 8.25mm 300V 20A PBT Brass

Products - Barrier Terminal Block
  • Highlight

    electrical terminal block

    ,

    barrier type terminal block

  • Pitch
    8.25mm
  • Color
    Black
  • Type
    Barrier
  • Plastic
    PBT
  • Current
    20A
  • Volt
    300V
  • Poles
    2-32 Poles
  • Plating
    Tin Plated
  • Stripping Length
    6-7mm
  • Wire Range
    12-26 AWG
  • Place of Origin
    Guangdong China
  • Brand Name
    SCED
  • Certification
    UL,CUL,CE,VDE etc.
  • Model Number
    TB825-01V
  • Minimum Order Quantity
    500 Piece/Pieces
  • Price
    USD 0.046-0.088
  • Packaging Details
    Packaging Details: Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198
  • Delivery Time
    5-20 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000000 Pole/Poles per Month

2-32 Poles Electrical Terminal Block Pitch 8.25mm 300V 20A PBT Brass

  • 2-32 Poles Electrical Terminal Block Pitch 8.25mm 300V 20A PBT Brass
  • 2-32 Poles Electrical Terminal Block Pitch 8.25mm 300V 20A PBT Brass
Get Price Contact Now

2-32 Poles Barrier Terminal Block Pitch 8.25mm 300V 20A PBT Brass





Detailed product Description:



Pitch 8.255mm, 300V 20A, 2P-32P, Barrier Terminal Blocks, Power Terminal Blocks

□Right angle wire inlet;  ■Vertical wire inlet;  □45 degree wire inlet

■Single Level;  □Double levels;  □Triple levels

Standard color: Black. Other colors also available.



Applications:

1.PCB, Frequency Converters, Server Site

2.Switch, Power Supply, Electric Lighting

3.Industry Control, Automation, Rail Transportation

4.Communication, Electric Power, Security.

5.Industry Control, Automation

6.Medicine Equipment, Military, Elevator, etc.



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 20



300 / 10

Wire Range                       AWG

12-26



12-26

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

320 / 32

400 / 32

630 / 32

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

4

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass /Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data



PCB Hole Diameter                  mm

φ1.6

Stripping Length                    mm

6-7

Screw / Torque                    / lbf.in

M 3 / 5-7



Competitive Advantage:



  1. Stable good quality
  2. Quickly response
  3. Competitive price
  4. Full range products for selection
  5. OEM and ODM service can be provided

2-32 Poles Electrical Terminal Block Pitch 8.25mm 300V 20A PBT Brass 0
