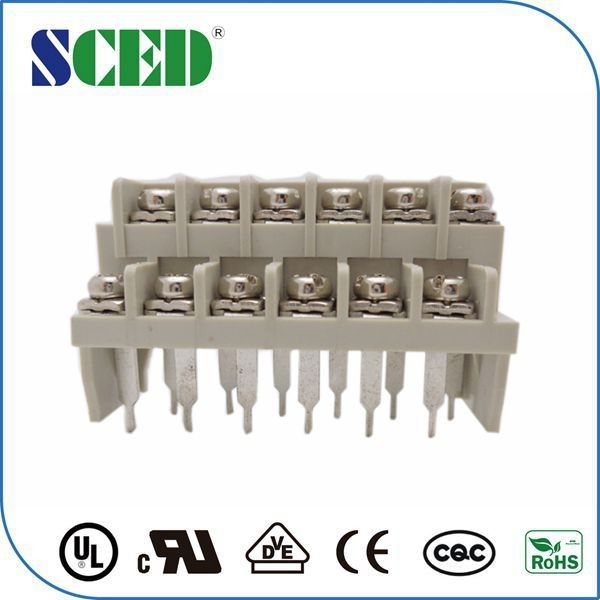

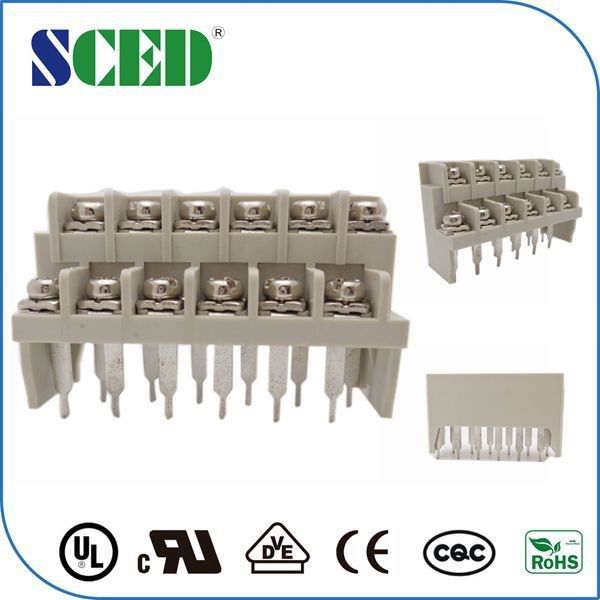

Spacing 7.62mm Barrier Terminal Block Grey Color 3 - 20P Number Of Contact Screw

Spacing 7.62mm Barrier Terminal Block Grey Color 3 - 20P Number Of Contact Screw

Products - Barrier Terminal Block
  • Highlight

    electrical terminal block

    ,

    barrier type terminal block

  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Number Of Contacts
    3-20 P
  • Pitch
    7.62mm
  • Rated Current
    10A / 15A
  • Rated Voltage
    300V
  • Type
    Barrier Terminal Block,Power Terminal Blocks, Electrical Terminal Blocks
  • Material
    PBT
  • Screw
    Steel M3
  • Place of Origin
    China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TB762-08-A2-D4
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Spacing 7.62mm Barrier Terminal Block Grey Color 3 - 20P Number Of Contact Screw

  • Spacing 7.62mm Barrier Terminal Block Grey Color 3 - 20P Number Of Contact Screw
  • Spacing 7.62mm Barrier Terminal Block Grey Color 3 - 20P Number Of Contact Screw
  • Spacing 7.62mm Barrier Terminal Block Grey Color 3 - 20P Number Of Contact Screw
Get Price Contact Now



Spacing 7.62mm Barrier Terminal Block Grey Color 3-20P Number of  Contact Screw





Parameter and Drawing Specifications:





UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 15



300 / 10

Wire Range                       AWG

14-22



14-22

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

250 / 24

320 / 24

400 / 24

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

2.5

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Phosphor Bronze/ Gold Plated

Screw / Plating

Steel / Nickel Plated

Other Data



PCB Hole Diameter                  mm

φ1.5

Stripping Length                    mm

7-8

Screw / Torque                    / lbf.in

M 3 / 5-7



TB762-08-A2-D4

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.



How to order:



 Spacing 7.62mm Barrier Terminal Block Grey Color 3 - 20P Number Of Contact Screw 1





Applications:





PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand



Spacing 7.62mm Barrier Terminal Block Grey Color 3 - 20P Number Of Contact Screw 2Spacing 7.62mm Barrier Terminal Block Grey Color 3 - 20P Number Of Contact Screw 3
