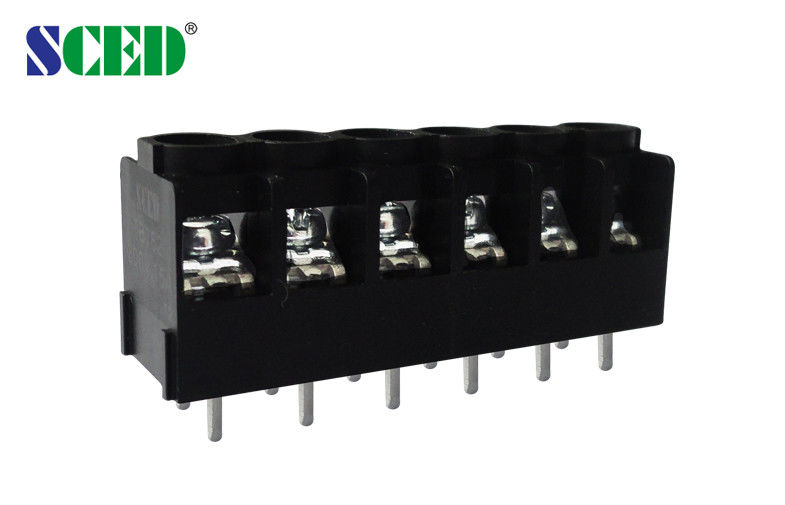

PBT Barrier Terminal Block 6.35mm Pitch 300V 15A Brass UL94 V0

PBT Barrier Terminal Block 6.35mm Pitch 300V 15A Brass UL94 V0

    • PBT Barrier Terminal Block 6.35mm Pitch 300V 15A Brass UL94 V0
    • PBT Barrier Terminal Block 6.35mm Pitch 300V 15A Brass UL94 V0
    • PBT Barrier Terminal Block 6.35mm Pitch 300V 15A Brass UL94 V0
  • PBT Barrier Terminal Block 6.35mm Pitch 300V 15A Brass UL94 V0

    Product Details:

    Place of Origin: Guangdong China
    Brand Name: SCED
    Certification: UL,CE,CUL,CQC,VDE etc.
    Model Number: TB762-16

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 Piece/Pieces
    Price: USD 0.035-0.068 Per Pole
    Packaging Details: Packaging Details: Standard export packing carton, or according to customers demand; Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198
    Delivery Time: 5-20 days
    Payment Terms: T/T, L/C
    Supply Ability: 1000000 Pole/Poles per Month
    Contact Now
    Detailed Product Description
    Plastic: PBT Color: Black
    Type: Barrier Current: 15A
    Volt: 300V Pitch: 6.35mm
    Poles: 2-24 Poles Inflammability: UL94 V0
    Terminal: Brass Screw: Steel

    PBT Barrier Terminal Block 6.35mm Pitch 300V 15A Brass UL94 V0



    Detailed product Description:



    Pitch 7.62mm, 300V 15A, 2P-24P, Barrier Terminal Blocks, Power Terminal Blocks

    ■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

    ■Single Level;  □Double levels;  □Triple levels

    Standard color: Black. Other colors also available.



    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

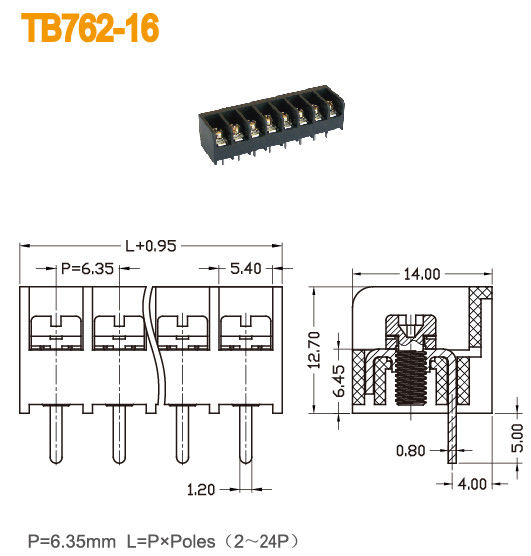

    Parameter and Drawing Specifications:

    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300/15



    300/10

    Wire Range                       AWG

    18-22



    18-22

    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current              V/A

    250 / 9

    320 / 9

    630 / 9

    Rated Surge Voltage                 KV

    4

    4

    4

    Rated Connecting Capacity           mm2

    0.75

    Material



    Insulation Material / Inflammability Class

    PBT / UL94, V-0

    Terminal / Plating

    Brass / Tin Plated

    Screw / Plating

    Steel / Nickel Plated

    Other Data



    PCB Hole Diameter                  mm

    φ1.9

    Stripping Length                    mm

    7-8

    Screw / Torque                    / lbf.in

    M 3 / 5-7



    Competitive Advantage:



    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand



    PBT Barrier Terminal Block 6.35mm Pitch 300V 15A Brass UL94 V0
