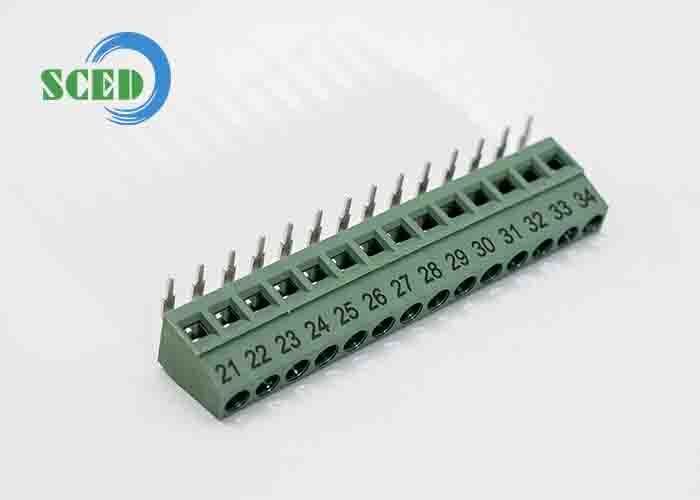

Spring Type Terminal Designed for 5A Current Providing Electrical Connections in Industrial and Commercial Applications

Product Description:

The Spring Terminal Block is an innovative and reliable electrical connector designed to provide efficient and secure wiring solutions for a wide range of applications. Featuring a spring type connection mechanism, this terminal block ensures a strong and stable electrical contact without the need for screws or other fastening methods. This design not only simplifies the installation process but also enhances the durability and longevity of the connection, making it an ideal choice for both industrial and commercial use.

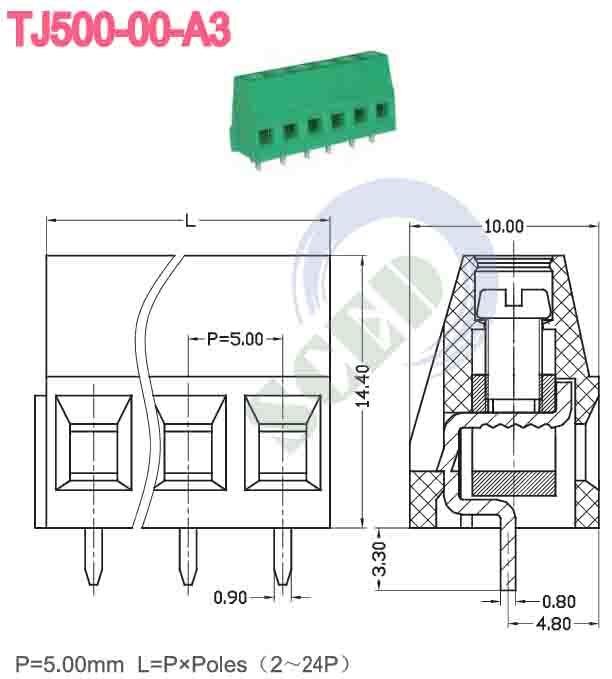

Available with a number of contacts ranging from 2P to 28P, the Spring Terminal Block offers exceptional flexibility to accommodate various wiring configurations. Whether you need to connect a few wires or manage more complex circuits, this terminal block can be tailored to meet your specific requirements. The contact pitch is set at 5.0mm, providing an optimal balance between compactness and ease of wiring. This pitch size is widely recognized and compatible with numerous electrical components, making integration seamless and efficient.

One of the key features of this terminal block is its tin-plated gold plating. The tin plating not only enhances the corrosion resistance of the terminals but also improves electrical conductivity, ensuring minimal signal loss and stable current flow. This plating is particularly beneficial in environments where moisture or other corrosive elements are present, as it helps maintain the integrity of the terminal over time. Consequently, users can rely on consistent performance and reduced maintenance needs.

The Spring Terminal Block is engineered to operate effectively within a broad temperature range of -40℃ to +105℃. This wide temperature tolerance allows it to function reliably in various environmental conditions, from extreme cold to high heat. Whether used in outdoor installations, industrial machinery, or electronic devices, the terminal block maintains its mechanical strength and electrical performance without degradation. This robustness makes it suitable for applications in harsh environments where temperature fluctuations are common.

In addition to its technical specifications, the Spring Terminal Block is designed with user convenience in mind. The spring-type mechanism allows for quick and tool-free wire insertion and removal, which significantly reduces wiring time and labor costs. This feature is especially advantageous during maintenance or system upgrades, where rapid disconnection and reconnection of wires are necessary. The terminal block’s compact design also helps save space within control panels and enclosures, contributing to a cleaner and more organized electrical setup.

Furthermore, safety is a paramount consideration in the design of this terminal block. The secure spring connection minimizes the risk of loose wires, which can lead to electrical shorts or interruptions. The tin-plated terminals provide excellent resistance to oxidation, preventing poor contact and potential hazards. These attributes ensure that the Spring Terminal Block not only meets but often exceeds industry standards for electrical connectivity and safety.

In summary, the Spring Terminal Block is a versatile and dependable terminal solution that supports a wide range of electrical applications. Its spring type design, combined with a contact range of 2P to 28P and a 5.0mm pitch, offers adaptability and ease of use. With tin-plated gold plating and a robust temperature range of -40℃ to +105℃, this terminal block guarantees excellent performance, durability, and safety under diverse operating conditions. Whether you are wiring control systems, industrial equipment, or electronic devices, this terminal provides a secure and efficient connection that meets modern electrical demands.

Features:

• Product Name: Spring Terminal Block
• Screw Type: Cross Recessed
• Temperature Range: -40℃ to +105℃
• Rated Current: 10A
• Current: 5A
• Contact Resistance: Less Than 8mΩ
• Reliable terminal connection ensuring stable electrical performance
• Durable terminal design suitable for various industrial applications
• Easy-to-use spring terminal for quick and secure wiring

Technical Parameters:

Applications:

The SCED Spring Terminal Block is an essential component widely used in various electrical and electronic applications, providing secure and reliable connections for wiring systems. Designed with a spring type mechanism, this terminal ensures quick, stable, and vibration-resistant connections, making it ideal for both industrial and commercial use. With a certification of CE and ISO9001, the SCED terminal block guarantees high quality and compliance with international standards, assuring users of its safety and performance.

This terminal block operates efficiently within a temperature range of -40℃ to +105℃, making it suitable for applications exposed to extreme environmental conditions. Its inflammability class UL94 V-0 rating further emphasizes its safety by ensuring resistance to fire hazards. The terminal block supports a rate voltage of 300V and offers a variety of contact options, ranging from 2P to 28P, catering to diverse wiring and circuit requirements.

In practical scenarios, the SCED Spring Terminal Block is commonly applied in industrial automation systems, control panels, power distribution, and machinery wiring. Its ability to maintain secure connections under vibrations makes it perfect for automotive, railway, and aerospace industries. Additionally, its user-friendly spring type design allows for easy installation and maintenance, reducing downtime and labor costs in manufacturing plants and electrical workshops.

For electrical engineers and technicians working on complex wiring configurations, the SCED terminal provides a dependable solution that ensures consistent electrical conductivity and mechanical stability. It is also widely used in renewable energy installations such as solar panels and wind turbines, where reliable electrical connections are critical for system efficiency and safety.

SCED offers this terminal block with a minimum order quantity of 500 pieces, packaged securely in carton boxes to prevent damage during transit. With a supply ability of 100,000 pieces per day and a delivery time of approximately 50 days, SCED ensures timely fulfillment of bulk orders. Customers can get the latest price and enjoy flexible payment terms including T/T, AliPay, and PayPal, facilitating smooth transactions worldwide.

Overall, the SCED Spring Terminal Block is a versatile, high-quality terminal solution that meets the rigorous demands of modern electrical systems. Its robust design, certified safety standards, and efficient performance make it an excellent choice for a wide range of terminal application occasions and scenarios.

Customization:

SCED offers customized Spring Terminal Block solutions designed to meet your specific requirements. Our terminals are CE and ISO9001 certified, ensuring high quality and reliability. We support a minimum order quantity of 500 units with a supply ability of up to 100,000 pcs per day, making it easy to fulfill large orders efficiently.

The Spring Terminal Blocks feature a current rating of 5A and come in various configurations ranging from 2P to 28P contacts. Each terminal is plated with nickel and tin for enhanced durability and corrosion resistance, while complying with UL94 V-0 inflammability standards for safety.

Packaging is done in secure carton boxes to protect the terminals during shipment. Delivery time is approximately 50 days, and we accept flexible payment terms including T/T, AliPay, and PayPal. Contact us to get the latest price and customize your terminal block order today.

Support and Services:

Our Spring Terminal Block product is designed to provide reliable and secure electrical connections with ease of use and maintenance. For technical support, we offer comprehensive assistance including installation guidance, troubleshooting, and customization options to fit your specific application needs.

We provide detailed product documentation, including datasheets, wiring diagrams, and user manuals to help you maximize the performance of your spring terminal blocks. Our technical team is available to assist with product selection, compatibility questions, and integration into your electrical systems.

In addition to support, we offer a range of services such as product testing, certification assistance, and training sessions to ensure proper handling and optimal use of the spring terminal blocks. Our commitment is to deliver high-quality support and services to enhance your experience and ensure safety and efficiency in your electrical installations.

Packing and Shipping:

Product Packaging: The Spring Terminal Block is carefully packaged to ensure maximum protection during transit. Each unit is individually wrapped in anti-static material and placed in a sturdy cardboard box. The boxes are then securely sealed and labeled with product information, batch number, and handling instructions. Bulk orders are packed in larger cartons with adequate cushioning to prevent damage.

Shipping: We offer reliable shipping options worldwide to deliver the Spring Terminal Block safely and promptly. Products are shipped via trusted carriers with tracking available for all orders. Shipping methods include standard ground, expedited, and express services depending on customer requirements. We ensure proper handling and timely dispatch from our warehouse to meet delivery schedules.

FAQ:

Q1: What certifications does the SCED Spring Terminal Block have?

A1: The SCED Spring Terminal Block is certified with CE and ISO9001, ensuring high quality and safety standards.

Q2: What is the minimum order quantity for the SCED Spring Terminal Block?

A2: The minimum order quantity for the SCED Spring Terminal Block is 500 pieces.

Q3: How can I get the price for the SCED Spring Terminal Block?

A3: To get the latest price for the SCED Spring Terminal Block, please contact our sales team or visit our official website for a quote.

Q4: What are the packaging details for this product?

A4: The SCED Spring Terminal Block is packaged securely in carton boxes to ensure safe delivery.

Q5: What payment methods are accepted for purchasing the SCED Spring Terminal Block?

A5: We accept T/T (Telegraphic Transfer), AliPay, and PayPal as payment methods.

Q6: What is the delivery time for orders of the SCED Spring Terminal Block?

A6: The standard delivery time for the SCED Spring Terminal Block is approximately 50 days after order confirmation.

Q7: What is the supply capacity for the SCED Spring Terminal Block?

A7: Our supply ability is up to 100,000 pieces per day, ensuring we can meet large volume demands.
