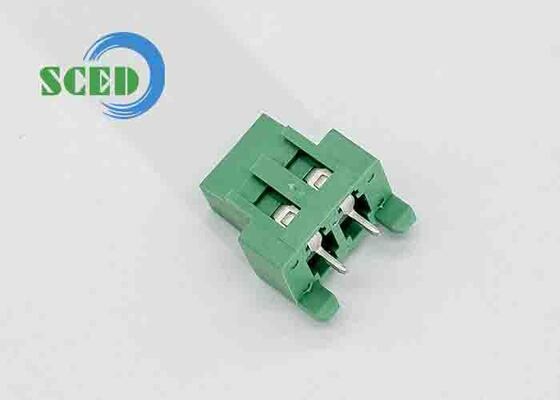

Nickel Plated Spring Terminal Block Featuring Tin Plated Gold Plating and Temperature Range Minus 40 to Plus 105 Degrees Celsius for Circuit Connections

Product Description:

The Spring Terminal Block is an advanced electrical connector designed to provide reliable and efficient connections in various industrial and commercial applications. Engineered with precision and quality materials, this terminal block ensures exceptional performance, safety, and durability, making it an ideal choice for professionals seeking dependable terminal solutions.

One of the standout features of this Spring Terminal Block is its superior inflammability rating. Classified under UL94 V-0, this product exhibits excellent flame retardant properties, ensuring that it meets stringent safety standards. The UL94 V-0 classification means that the terminal block can effectively resist ignition and self-extinguish flames quickly if exposed to fire, reducing the risk of fire hazards in electrical systems. This makes it particularly suitable for use in environments where fire safety is a critical concern, such as in industrial machinery, control panels, and electrical enclosures.

The Spring Type mechanism of this terminal block provides a robust and secure connection without the need for traditional screws to hold wires in place. This spring-loaded design allows for quick and easy wire insertion and removal, significantly reducing installation time and effort. It also ensures consistent contact pressure, which enhances the reliability of electrical connections by minimizing the risk of loose wires and improving overall conductivity. This feature is especially beneficial in applications where vibrations or frequent maintenance might otherwise compromise connections.

Contact resistance is a crucial factor in terminal block performance, as it directly affects the efficiency and safety of electrical connections. This Spring Terminal Block boasts an impressively low contact resistance of less than 8 milliohms (mΩ), which means it offers minimal resistance to electrical current flow. Low contact resistance is essential for reducing power loss, heat generation, and potential failures in electrical circuits. By maintaining such a low resistance level, this terminal block ensures optimal electrical performance and energy efficiency.

The terminal block is equipped with cross recessed screws, which are designed for enhanced usability and durability. The cross recessed screw type allows for secure tightening and loosening using standard Phillips screwdrivers, making installation and maintenance straightforward and convenient. This screw design also helps prevent stripping and damage during assembly, ensuring a long-lasting and reliable connection point. The combination of spring type terminals and cross recessed screws offers a versatile and user-friendly solution for various wiring needs.

To further enhance durability and resistance to corrosion, the terminal block contacts and screws are nickel plated. Nickel plating provides a protective layer that shields the metal components from oxidation, rust, and wear over time. This plating not only extends the lifespan of the terminal block but also maintains consistent electrical performance even in harsh environmental conditions. The nickel plating is particularly advantageous in applications exposed to moisture, chemicals, or abrasive elements, ensuring the terminal block remains functional and safe throughout its service life.

In summary, the Spring Terminal Block combines safety, reliability, and ease of use in a compact and efficient design. Its UL94 V-0 inflammability classification guarantees superior fire resistance, while the spring type mechanism facilitates quick and secure wire connections. With a contact resistance of less than 8mΩ, cross recessed screws for easy handling, and durable nickel plating, this terminal block stands out as a premium choice for electrical connection needs. Whether used in industrial control systems, electrical panels, or other wiring applications, this terminal block provides a dependable and efficient solution for managing electrical connections with confidence.

Features:

• Product Name: Spring Terminal Block
• Rated Current: 10A suitable for various terminal applications
• Housing Material: Durable PA66 ensuring reliable terminal performance
• Plating: Nickel Plated for enhanced corrosion resistance in the terminal
• Contact Resistance: Less Than 8mΩ for efficient terminal conductivity
• Screw Type: Cross Recessed for secure terminal connections

Technical Parameters:

Applications:

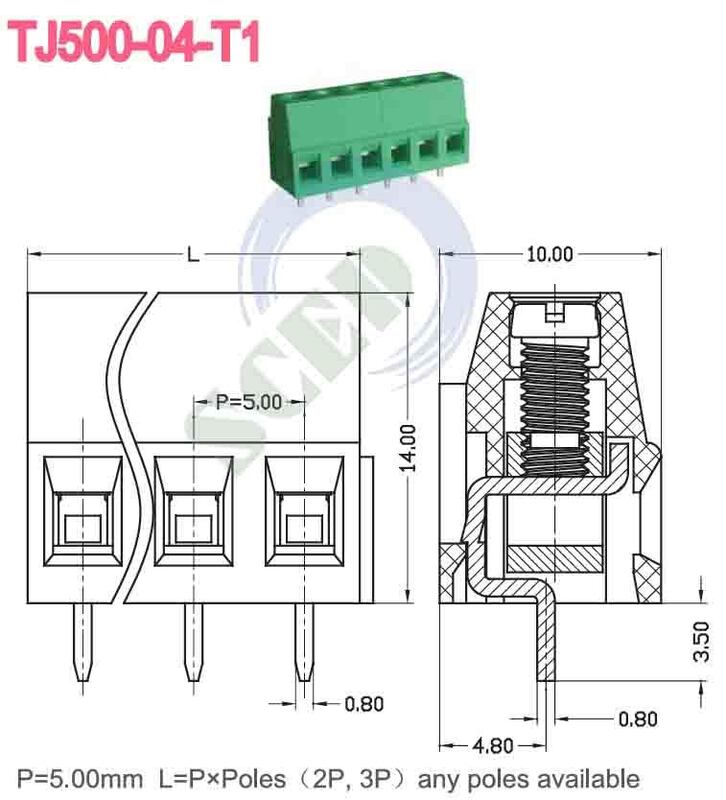

The SCED Spring Terminal Block is an essential component widely used in various electrical and electronic applications. Designed with a pitch of 5.0mm and accommodating 2P to 28P contacts, this terminal block provides reliable and efficient connectivity for numerous industrial and commercial scenarios. Its housing is made from high-quality PA66 material, ensuring durability and safety, while the inflammability class UL94 V-0 certification guarantees excellent resistance to fire hazards, making it suitable for environments where safety is paramount.

Thanks to its CE and ISO9001 certifications, the SCED Spring Terminal Block meets international quality standards, making it a trusted choice for professionals in electrical engineering, automation, and manufacturing sectors. The terminal block’s rated voltage of 300V allows it to handle a wide range of electrical loads, making it ideal for control panels, distribution boxes, and other electrical assemblies that require secure and stable connections.

In industrial automation, the SCED terminal block is commonly used for wiring control systems, sensors, and actuators, providing a fast and reliable connection method that reduces wiring time and maintenance costs. Its spring connection design ensures a firm grip on wires, preventing loosening due to vibration or thermal expansion, which is crucial in harsh industrial environments.

Furthermore, the terminal block is extensively applied in renewable energy systems, such as solar power installations and wind turbines, where dependable electrical connections are vital for uninterrupted power transmission. The product’s supply ability of 100000pcs/day and a minimum order quantity of 500 units make it suitable for large-scale projects and mass production needs. Packaging in sturdy carton boxes ensures safe delivery within the estimated 50-day lead time.

Payment flexibility with options including T/T, AliPay, and PayPal facilitates smooth transactions for customers worldwide. Whether you're assembling electrical panels, building machinery, or working on infrastructure projects, the SCED Spring Terminal Block offers a cost-effective and high-quality solution. For pricing details and to get the latest price, customers are encouraged to contact the supplier directly.

Customization:

SCED offers customized Spring Terminal Block products designed to meet your specific requirements. Our terminals are available with 2P to 28P contacts, featuring a 1 Level spring type design and a 5.0mm pitch for reliable and secure connections. Each terminal is nickel plated to ensure durability and excellent conductivity.

Certified with CE and ISO9001, our Spring Terminal Blocks guarantee high quality and safety standards. We support a minimum order quantity of 500 pieces, making it ideal for both small and large scale projects. Packaging is done securely in carton boxes to protect each terminal during shipment.

With a supply ability of up to 100,000 pcs per day and a delivery time of approximately 50 days, we ensure timely fulfillment of your orders. Payment terms are flexible, including T/T, AliPay, and PayPal options. Contact us to get the latest price and experience reliable terminal customization services with SCED.

Support and Services:

Our Spring Terminal Block product is designed to provide reliable and secure electrical connections with ease of installation and maintenance. For technical support, we offer detailed product documentation, including datasheets, wiring diagrams, and installation guides to help you achieve optimal performance.

If you encounter any issues or need assistance with your Spring Terminal Block, our technical support team is available to provide expert advice and troubleshooting. We also offer training sessions and webinars to help you better understand the product features and best practices for usage.

Additionally, we provide customization services to tailor the Spring Terminal Block to meet your specific application requirements. Our engineering team works closely with you to develop solutions that enhance functionality and efficiency.

For service and maintenance, we recommend regular inspection and cleaning to ensure long-term reliability. Replacement parts and accessories are readily available to support your ongoing needs.

Choose our Spring Terminal Block product for a durable, efficient, and user-friendly connection solution backed by comprehensive technical support and service options.

Packing and Shipping:

Product Packaging and Shipping for Spring Terminal Block

The Spring Terminal Block is carefully packaged to ensure protection during transit and delivery. Each unit is securely placed in an anti-static bag to prevent damage from electrostatic discharge. Multiple units are then packed into sturdy, corrugated cardboard boxes with adequate cushioning materials such as foam or bubble wrap to absorb shocks and vibrations.

Packaging dimensions and weight are optimized to reduce shipping costs while maintaining product safety. All boxes are clearly labeled with product information, handling instructions, and shipping details to facilitate smooth logistics and inventory management.

For shipping, we offer multiple options including standard ground shipping, expedited air freight, and international shipping services. Products are shipped with reliable carriers that provide tracking information to ensure timely and secure delivery. Special care is taken to comply with all relevant regulations and standards to guarantee the product arrives in perfect condition.

FAQ:

Q1: What certifications does the SCED Spring Terminal Block have?

A1: The SCED Spring Terminal Block is certified with CE and ISO9001, ensuring high quality and compliance with international standards.

Q2: What is the minimum order quantity for the SCED Spring Terminal Block?

A2: The minimum order quantity for the SCED Spring Terminal Block is 500 pieces.

Q3: What are the payment terms available for purchasing the SCED Spring Terminal Block?

A3: We accept payment via T/T (Telegraphic Transfer), AliPay, and PayPal for your convenience.

Q4: How long does it take to deliver the SCED Spring Terminal Block after placing an order?

A4: The delivery time for the SCED Spring Terminal Block is approximately 50 days.

Q5: How are the SCED Spring Terminal Blocks packaged for shipment?

A5: The terminal blocks are securely packaged in carton boxes to ensure safe delivery.

Q6: What is the supply capacity for the SCED Spring Terminal Block?

A6: We have a strong supply ability of up to 100,000 pieces per day to meet large volume demands.

Q7: How can I get the latest price for the SCED Spring Terminal Block?

A7: Please contact our sales team directly to get the latest price as it may vary depending on order quantity and market conditions.
