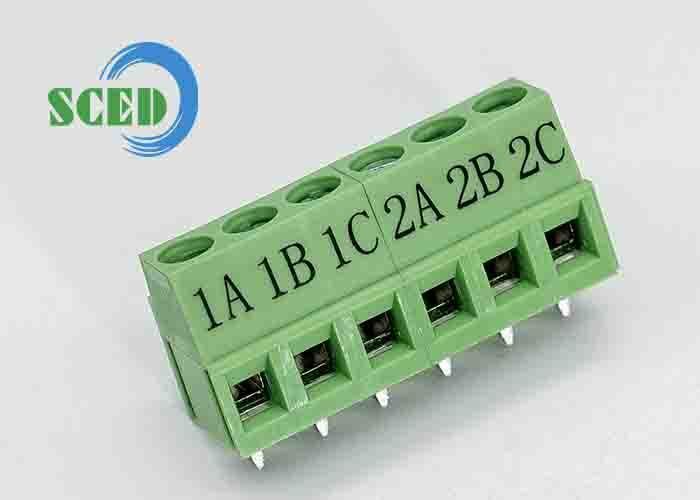

Nickel Plated Terminal Featuring Spring Type Construction Delivering Electrical Contact and Enhanced Mechanical Strength

Product Description:

The Spring Terminal Block is a highly reliable and efficient electrical connector designed to provide secure and stable connections in various electrical and electronic applications. This terminal block is engineered with precision and quality materials to ensure optimal performance, making it an ideal choice for professionals and industries that require dependable electrical connections.

One of the standout features of this Spring Terminal Block is its exceptionally low contact resistance, which is less than 8mΩ. This low resistance ensures minimal power loss and heat generation during operation, contributing to enhanced efficiency and reliability of the connected circuits. The low contact resistance is achieved through meticulous design and the use of high-quality materials, ensuring consistent electrical conductivity and long-lasting performance.

The terminal block offers a versatile range of configurations, accommodating from 2P up to 28P contacts. This wide variety allows users to select the perfect terminal block size for their specific application, whether it is for small-scale projects or large industrial systems. The multiple contact options provide flexibility in wiring and circuit design, enabling smooth integration into different electrical setups.

At the core of the connection mechanism is the innovative spring clamp technology. The spring clamp connection type provides a secure and vibration-resistant grip on the wires, ensuring a stable and reliable connection even in environments subject to mechanical stress or vibrations. This connection method eliminates the need for screws, reducing installation time and maintenance efforts while improving safety by preventing loose connections.

The housing material of the Spring Terminal Block is made from PA66, a high-performance polyamide known for its excellent mechanical strength, thermal stability, and resistance to chemicals and environmental factors. The use of PA66 ensures that the terminal block can withstand harsh operating conditions, including high temperatures and exposure to various industrial chemicals, without compromising its structural integrity or performance.

To enhance the durability and conductivity of the contact surfaces, the terminal block features tin plating instead of gold plating. Tin plating provides excellent corrosion resistance and reliable electrical contact, making it a cost-effective solution without sacrificing quality. This plating ensures that the terminal block maintains consistent performance over time, even in corrosive or humid environments.

The Spring Terminal Block is designed with ease of use and safety in mind. Its compact structure and color-coded design facilitate quick identification and installation, reducing the chances of wiring errors. The spring clamp mechanism allows for tool-free wire insertion and removal, making it convenient for technicians and electricians during installation or maintenance.

Ideal for various applications such as industrial control systems, automation equipment, electrical panels, and household appliances, this terminal block delivers robust performance and reliability. It supports a wide range of wire sizes and types, accommodating different electrical requirements and ensuring compatibility with numerous components and devices.

In summary, the Spring Terminal Block is an excellent choice for anyone seeking a dependable, efficient, and versatile terminal solution. Its low contact resistance of less than 8mΩ guarantees minimal electrical losses, while the availability of 2P to 28P contacts offers flexibility for diverse applications. The spring clamp connection type ensures secure and maintenance-free wiring connections, and the PA66 housing provides durable protection under demanding conditions. With tin plating on the contacts, this terminal block combines cost-effectiveness with reliable corrosion resistance. Whether for industrial, commercial, or residential use, this terminal block meets the highest standards of quality and performance, making it a trusted component in any electrical installation.

Features:

• Product Name: Spring Terminal Block
• Contact Resistance: Less Than 8mΩ ensuring reliable terminal connections
• Connection Type: Spring Clamp for secure and easy terminal wiring
• Temperature Range: -40℃ to +105℃ suitable for various terminal environments
• Rated Voltage: 300V for safe terminal operation

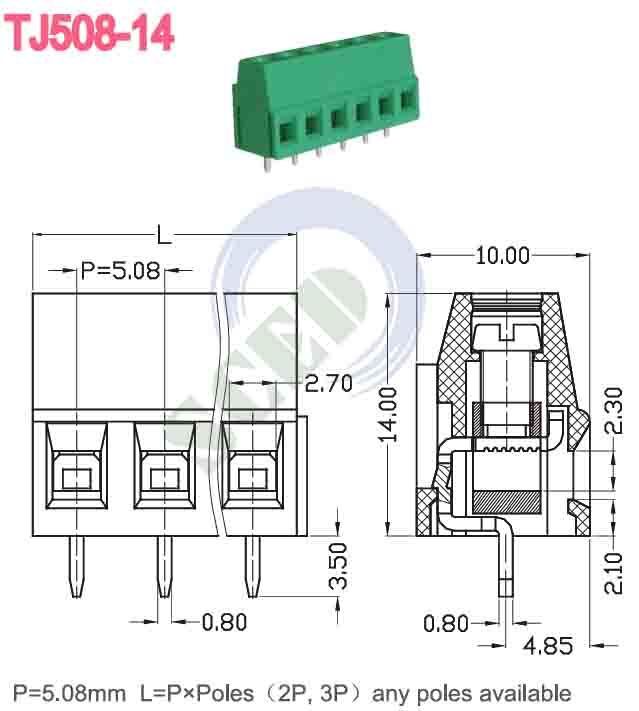

• Pitch: 5.0mm providing compact terminal spacing

Technical Parameters:

Applications:

The SCED Spring Terminal Block is an essential component widely used in various electrical and electronic applications. Designed as a spring type terminal, it offers reliable and secure connections that ensure optimal performance under diverse conditions. Certified by CE and ISO9001, this product guarantees high quality and safety standards, making it a trusted choice for professionals and industries alike.

This terminal block is ideal for use in industrial control panels, automation systems, and electrical distribution boards. Its tin-plated gold contacts provide excellent conductivity and corrosion resistance, resulting in a contact resistance of less than 8mΩ. With a rated voltage of 300V and an impressive temperature range from -40℃ to +105℃, this terminal can withstand harsh environments, making it suitable for both indoor and outdoor applications.

Thanks to the spring type design, the SCED terminal block allows for quick and tool-free wiring, which greatly enhances installation efficiency and reduces maintenance time. This feature is particularly beneficial in scenarios where frequent wiring changes or adjustments are necessary, such as in prototype development, testing laboratories, or dynamic manufacturing lines. The spring mechanism ensures a firm grip on wires of various sizes, eliminating the risk of loose connections.

The SCED Spring Terminal Block is also prevalent in renewable energy systems, such as solar panel installations and wind turbine connections, where reliable and durable terminals are crucial for consistent power transmission. Additionally, it finds applications in household appliances, automotive electronics, and communication equipment, demonstrating its versatility across multiple sectors.

With a supply ability of 100,000 pieces per day, a minimum order quantity of 500 units, and packaging details including carton boxes, SCED ensures timely delivery within 50 days. Customers can conveniently make payments through T/T, AliPay, or PayPal, and are encouraged to get the latest price for bulk orders. Overall, this spring terminal block is a dependable and efficient solution for any project requiring a high-quality terminal connection.

Customization:

SCED offers comprehensive product customization services for our Spring Terminal Block, ensuring it meets your specific requirements. Our terminal blocks are certified with CE and ISO9001, guaranteeing high quality and reliability for your applications.

With a pitch of 5.0mm and a rated voltage of 300V, our spring type terminals are designed to perform efficiently within a temperature range of -40℃ to +105℃. The terminal's inflammability class UL94, V-0 ensures safety and durability under various conditions.

We accept minimum order quantities of 500 pieces and provide flexible payment terms including T/T, AliPay, and PayPal. The products are securely packaged in carton boxes and have a delivery time of approximately 50 days. Our supply ability is robust, capable of producing up to 100,000 pcs per day.

Contact us to get the latest price and customize your terminal solution with SCED’s trusted Spring Terminal Block, designed to meet your terminal needs with precision and quality.

Support and Services:

Product Technical Support and Services for the Spring Terminal Block include comprehensive assistance throughout the product lifecycle. Our expert team provides detailed technical documentation, installation guidance, and troubleshooting help to ensure optimal performance and reliability.

We offer personalized support to help select the right Spring Terminal Block for your application, including compatibility and customization options. Our services also include training sessions, application advice, and maintenance tips to maximize the product's efficiency and lifespan.

For any technical inquiries, product updates, or service requests, our support team is ready to provide timely and professional assistance to meet your needs and ensure your satisfaction with the Spring Terminal Block.

Packing and Shipping:

Product Packaging: Each Spring Terminal Block is securely packaged in anti-static bags to prevent any damage during handling. The terminal blocks are then placed in sturdy cardboard boxes with appropriate cushioning materials to ensure protection against shocks and vibrations during transit. Packaging is labeled clearly with product information, quantity, and handling instructions.

Shipping: We offer multiple shipping options to meet your needs, including standard ground shipping, expedited air shipping, and international delivery. All shipments are processed promptly to ensure timely delivery. Tracking information will be provided once the order has been dispatched. We work with trusted carriers to guarantee safe and reliable delivery of your Spring Terminal Blocks.

FAQ:

Q1: What brand manufactures the Spring Terminal Block?

A1: The Spring Terminal Block is manufactured by the brand SCED.

Q2: Does the Spring Terminal Block have any certifications?

A2: Yes, the Spring Terminal Block is certified with CE and ISO9001 standards.

Q3: What is the minimum order quantity for the Spring Terminal Block?

A3: The minimum order quantity for the Spring Terminal Block is 500 pieces.

Q4: How is the Spring Terminal Block packaged for shipment?

A4: The product is packaged in carton boxes to ensure safe delivery.

Q5: What are the payment terms available for purchasing the Spring Terminal Block?

A5: Payment can be made via T/T, AliPay, or PayPal.

Q6: What is the typical delivery time for the Spring Terminal Block?

A6: The delivery time for the Spring Terminal Block is approximately 50 days.

Q7: What is the supply ability of the Spring Terminal Block?

A7: The supply ability is up to 100,000 pieces per day.

Q8: How can I get the price for the Spring Terminal Block?

A8: Please contact the supplier to get the latest price information for the Spring Terminal Block.
