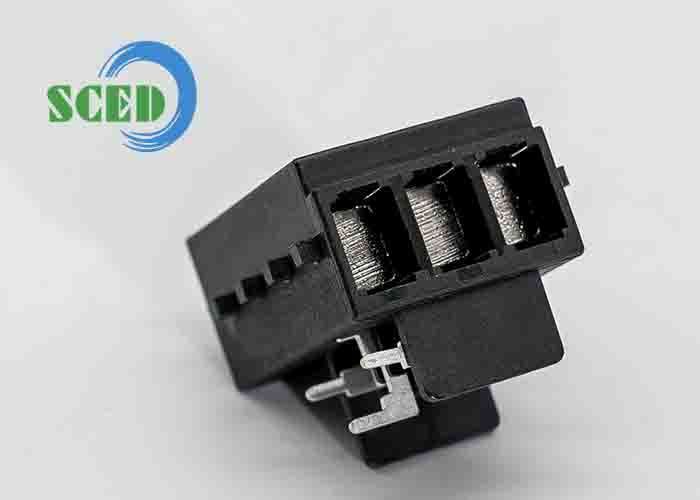

PA66 Material Housing Spring Terminal Block Rated Voltage 300V Inflammability Class V0 Ideal Electrical Connection Solution

Product Description:

The Spring Terminal Block is a highly reliable and versatile electrical connector designed to provide secure and efficient connections in various electronic and electrical applications. With a current rating of 5A and a rated current capability of up to 10A, this terminal block is engineered to handle moderate electrical loads while ensuring safety and performance. Operating at a rated voltage of 300V, it is suitable for a wide range of low to medium voltage circuits, making it an ideal choice for both industrial and commercial uses.

One of the standout features of this terminal block is its spring mechanism, which offers excellent contact reliability and ease of use. Unlike traditional screw-type terminals, the spring terminal ensures a firm grip on the wire without the risk of loosening over time due to vibration or thermal cycling. This makes it especially valuable in environments where stability and consistent electrical contact are critical. The spring terminal design also allows for quick installation and removal of wires, saving time during assembly and maintenance processes.

The terminal block is available in configurations ranging from 2P to 28P, meaning it can accommodate anywhere from 2 to 28 contacts. This flexibility allows users to select the appropriate number of poles based on their specific wiring requirements, whether they need a simple two-contact connection or a complex multi-contact setup. The wide range of contact options makes this terminal block adaptable for use in control panels, automation systems, lighting fixtures, and other electronic devices.

Constructed with tin-plated contacts, the terminal block offers enhanced corrosion resistance and improved conductivity. The tin plating ensures that the electrical connection remains stable and free from oxidation over time, which is essential for maintaining signal integrity and power transmission. This plating also contributes to the durability of the terminal, enabling it to withstand harsh environmental conditions without degradation.

In addition to its robust electrical characteristics, the Spring Terminal Block is designed with user convenience and safety in mind. The compact design minimizes space usage within electrical enclosures, allowing for more efficient layout of wiring systems. Moreover, the terminal housing is made from high-quality insulating materials that provide excellent resistance to heat and electrical stress, further ensuring safe operation under various conditions.

Overall, this terminal block is an excellent solution for engineers and technicians seeking a dependable, easy-to-use terminal for their wiring projects. Its current rating of 5A with a rate current of 10A and a rated voltage of 300V make it suitable for a broad spectrum of applications. The tin-plated contacts and spring mechanism guarantee both longevity and reliable electrical connections. Whether used in industrial automation, household appliances, or other electrical systems, this spring terminal block offers a combination of performance, safety, and convenience that is hard to match.

Choosing the right terminal is crucial for the success of any electrical installation, and the Spring Terminal Block stands out as a superior choice by delivering consistent quality and flexibility. Its range from 2P to 28P accommodates various wiring needs, while the spring-loaded terminal ensures that connections remain secure without the need for constant maintenance. This makes it an indispensable component in modern electrical design and assembly.

Features:

• Product Name: Spring Terminal Block
• Nickel plated for enhanced durability and corrosion resistance
• Rated current of 10A suitable for various electrical applications
• Spring clamp connection type ensures secure and reliable terminal connections
• Wide temperature range from -40℃ to +105℃ for versatile usage
• Rated voltage of 300V for safe electrical performance
• Designed as a terminal solution to provide stable and efficient terminal connections
• Ideal terminal component for industrial and commercial electrical systems

Technical Parameters:

Applications:

The SCED Spring Terminal Block is a versatile and reliable electrical connector designed to meet a wide range of application occasions and scenarios. Its robust construction and superior performance make it ideal for use in industrial automation, control panels, and electrical distribution systems. With certification from CE and ISO9001, the SCED terminal ensures compliance with international quality and safety standards, providing peace of mind for engineers and technicians alike.

Designed to operate efficiently within a temperature range of -40℃ to +105℃, the SCED Spring Terminal Block can withstand harsh environmental conditions, making it suitable for outdoor installations as well as indoor applications. Its UL94 V-0 inflammability class rating further guarantees enhanced safety by resisting ignition and preventing fire hazards in critical electrical setups.

Available in configurations ranging from 2P to 28P contacts, this terminal block offers flexibility to accommodate various wiring requirements. The nickel-plated contacts ensure excellent conductivity and corrosion resistance, which is crucial for maintaining stable electrical connections over time. The single-level design simplifies wiring processes, reducing installation time and minimizing the potential for wiring errors.

With a supply ability of 100,000 pieces per day and a minimum order quantity of 500 units, the SCED Spring Terminal Block is ideal for both small-scale projects and large manufacturing operations. The product is packaged securely in carton boxes to ensure safe delivery, with an estimated delivery time of 50 days. Payment can be conveniently made through T/T, AliPay, or PayPal, making procurement seamless for customers worldwide.

Typical application scenarios for the SCED terminal include use in electrical cabinets, power distribution boards, renewable energy systems, and machinery wiring. Its spring mechanism provides reliable and maintenance-free connections, which are especially valuable in environments subject to vibration or frequent thermal cycling. Whether for new installations or retrofitting existing systems, this terminal block offers a dependable solution that enhances electrical safety and performance.

In summary, the SCED Spring Terminal Block is a high-quality terminal that excels in diverse application occasions, combining durability, safety, and ease of use. Its certification, flexible contact options, and robust design make it an excellent choice for professionals seeking a dependable terminal for a variety of electrical and electronic projects.

Customization:

SCED offers customized Spring Terminal Block solutions that meet your specific requirements. Our terminal blocks are certified with CE and ISO9001, ensuring high quality and reliability. We provide a minimum order quantity of 500 pieces, with packaging details in sturdy carton boxes for safe delivery.

With a supply ability of 100,000 pcs per day, we guarantee timely delivery within 50 days. Our payment terms are flexible, accepting T/T, AliPay, and PayPal. The terminal block housing is made from durable PA66 material, designed as a 1 level terminal with a cross recessed screw type for secure connections.

The terminal features tin-plated gold plating and supports a rated current of 10A, making it suitable for various electrical applications. Contact us to get the latest price and customize your terminal block solutions with SCED.

Support and Services:

Our Spring Terminal Block product is designed to provide secure and reliable electrical connections with ease of installation and maintenance. For technical support, our team of experts is available to assist with product selection, installation guidance, troubleshooting, and customization to meet your specific application needs.

We offer comprehensive services including product training, application consulting, and on-site support to ensure optimal performance and customer satisfaction. Detailed technical documentation, including datasheets, wiring diagrams, and installation manuals, are available to support your use of the Spring Terminal Block.

In addition, we provide product testing and quality assurance services to guarantee compliance with industry standards and certifications. Whether you require assistance with standard configurations or custom solutions, our dedicated support team is committed to delivering timely and effective service to help you achieve your project goals.

Packing and Shipping:

Our Spring Terminal Block product is carefully packaged to ensure maximum protection during transit. Each unit is securely placed in individual compartments within sturdy, high-quality boxes to prevent movement and damage.

The packaging materials are chosen to provide cushioning and to resist moisture, dust, and impact, maintaining the integrity of the product throughout the shipping process.

For bulk orders, the individual boxes are consolidated into larger cartons, which are clearly labeled with product details and handling instructions.

We ship our Spring Terminal Blocks via reliable carriers, offering various shipping options including standard, expedited, and freight services to meet customer needs.

Tracking information is provided promptly after dispatch, allowing customers to monitor their shipment until delivery.

FAQ:

Q1: What certifications does the SCED Spring Terminal Block have?

A1: The SCED Spring Terminal Block is certified with CE and ISO9001, ensuring high quality and safety standards.

Q2: What is the minimum order quantity for the SCED Spring Terminal Block?

A2: The minimum order quantity for the SCED Spring Terminal Block is 500 pieces.

Q3: How can I get the price for the SCED Spring Terminal Block?

A3: To get the latest price for the SCED Spring Terminal Block, please contact the supplier directly as prices may vary based on order quantity and specifications.

Q4: What are the packaging details for the SCED Spring Terminal Block?

A4: The SCED Spring Terminal Block is packaged in carton boxes to ensure safe delivery.

Q5: What is the delivery time and supply ability for the SCED Spring Terminal Block?

A5: The delivery time is approximately 50 days, and the supply ability is 100,000 pieces per day.

Q6: What payment methods are accepted for purchasing the SCED Spring Terminal Block?

A6: The accepted payment methods include T/T (Telegraphic Transfer), AliPay, and PayPal.
