Contact Resistance Less Than 8mΩ Terminal Rated Voltage 300V Durable Industrial Terminal Solutions for Electrical Connections

Product Description:

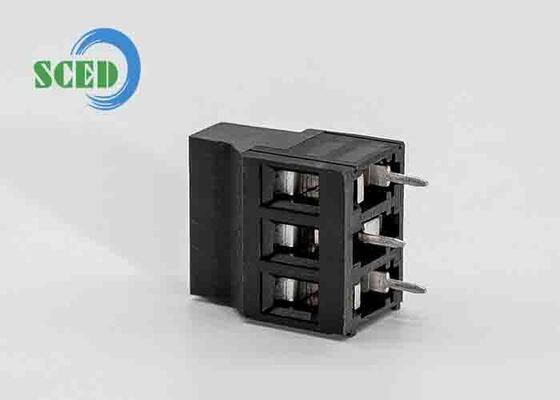

The Spring Terminal Block is an essential component designed to provide reliable and efficient electrical connections in a wide range of applications. Engineered with precision and durability in mind, this terminal block offers exceptional performance and safety features that make it a preferred choice for both industrial and commercial electrical systems. With a focus on quality, functionality, and user convenience, the Spring Terminal Block stands out as a versatile solution for connecting wires securely and efficiently.

One of the key attributes of this Spring Terminal Block is its adherence to the UL94 V-0 inflammability class. This classification ensures that the terminal block material is highly resistant to fire and self-extinguishes quickly in the event of ignition. The UL94 V-0 rating is a testament to the product’s commitment to safety, making it suitable for use in environments where fire hazards are a concern. This inflammability standard significantly reduces the risk of fire spreading through electrical installations, thereby enhancing overall safety and reliability.

Temperature resilience is another critical feature of the Spring Terminal Block. It is designed to operate efficiently within a broad temperature range of -40℃ to +105℃. This wide temperature tolerance allows the terminal to function flawlessly in both extremely cold and hot conditions without compromising its structural integrity or electrical performance. Whether installed in harsh outdoor environments or inside enclosed electrical panels, this terminal block maintains a stable connection, ensuring continuous and reliable power transmission.

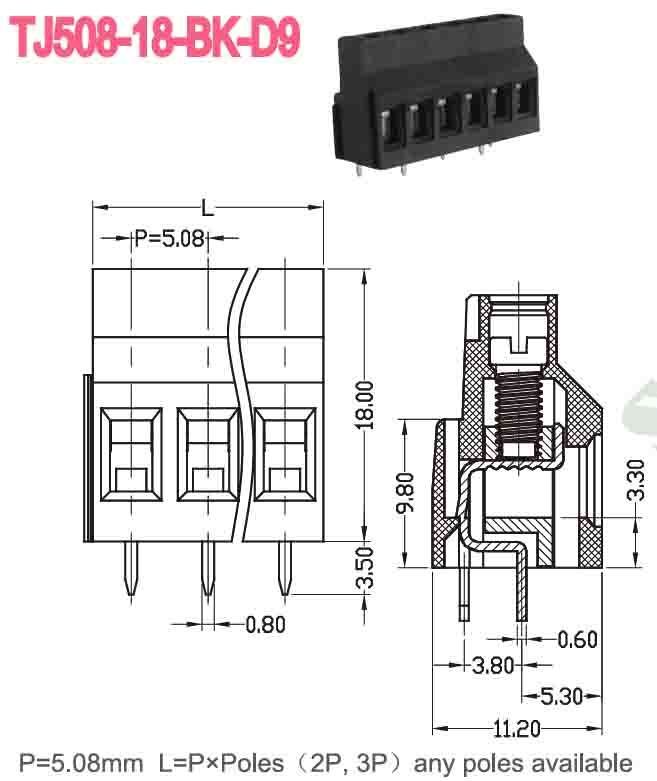

The terminal block boasts a pitch of 5.0mm, which refers to the center-to-center spacing between adjacent terminals. This pitch size strikes an ideal balance between compactness and ease of wiring, allowing for efficient use of space on circuit boards or within terminal enclosures. The 5.0mm pitch facilitates straightforward wire insertion and secure clamping, making the terminal block user-friendly for both installation and maintenance tasks.

In terms of electrical capacity, the Spring Terminal Block is rated to handle a current of up to 5A. This current rating makes it suitable for a variety of low to medium power applications, including control panels, automation equipment, and household appliances. The ability to safely conduct 5 amperes of current ensures that the terminal block can support reliable electrical connections without overheating or causing unnecessary power loss.

Flexibility in wiring configurations is offered through a wide range of contact options, with the number of contacts varying from 2P to 28P. This range allows users to select the appropriate terminal block size based on the specific requirements of their electrical system. Whether a simple two-contact connection or a complex multi-contact setup is needed, the Spring Terminal Block provides the scalability and adaptability necessary for diverse wiring projects.

Designed for ease of use, the spring mechanism within the terminal block facilitates quick and secure wire connections without the need for screws or additional tools. This spring-loaded terminal ensures a consistent and vibration-resistant connection, enhancing the overall durability and performance of the electrical system. The design minimizes installation time while maximizing connectivity reliability, making the terminal block an efficient choice for both professional electricians and DIY enthusiasts.

Overall, the Spring Terminal Block combines safety, durability, and convenience into a single, high-quality electrical component. Its UL94 V-0 inflammability rating, broad temperature range, 5.0mm pitch, 5A current capacity, and versatile contact options make it an ideal terminal solution for a wide array of applications. Whether used in industrial automation, control systems, or residential wiring, this terminal block ensures secure, efficient, and safe electrical connections every time. By choosing the Spring Terminal Block, users invest in a product that delivers consistent performance and peace of mind in their electrical installations.

Features:

• Product Name: Spring Terminal Block
• Pitch: 5.0mm for precise terminal spacing
• Gold Plating: Tin Plated for reliable conductivity
• Number of Contacts: 2P-28P to suit various terminal configurations
• Screw Type: Cross Recessed for secure terminal connections
• Plating: Nickel Plated for enhanced durability and corrosion resistance
• Designed as a robust terminal solution for electrical and electronic applications
• Ensures stable and secure terminal connections with spring mechanism
• Ideal terminal block for efficient wiring and easy installation

Technical Parameters:

Applications:

The SCED Spring Terminal Block is a highly reliable and versatile electrical connector designed for various industrial and commercial applications. With a 1-level structure and a 5.0mm pitch, this terminal block ensures secure and efficient wiring connections, making it an essential component in electrical systems. Its PA66 material housing offers excellent durability and resistance to high temperatures, with an operating temperature range from -40℃ to +105℃, which makes it suitable for use in harsh environments.

Certified by CE and ISO9001, the SCED Spring Terminal Block guarantees high-quality standards and safety compliance. This certification also reassures users of its excellent performance in electrical installations. The tin-plated gold plating further enhances corrosion resistance and conductivity, ensuring stable and long-lasting electrical connections. These features make the terminal block ideal for use in control panels, automation systems, power distribution units, and various industrial machinery.

This product is widely used in occasions where quick and reliable wiring is required. For example, it is perfect for electrical engineering projects, factory automation, HVAC systems, and renewable energy setups like solar power installations. The spring terminal design allows for easy and fast wiring without the need for screws, reducing installation time and maintenance costs. It is also suitable for use in building electrical wiring, railways, and telecommunications equipment where secure terminal connections are critical.

With a minimum order quantity of 500 pieces and a supply capacity of 100,000 pieces per day, SCED can meet the demands of both small and large-scale projects. The terminal blocks are carefully packaged in carton boxes to ensure safe delivery. Customers can get the latest price and enjoy flexible payment terms including T/T, AliPay, and PayPal. Delivery time is approximately 50 days, ensuring timely supply for project schedules.

In summary, the SCED Spring Terminal Block is an indispensable component for any electrical terminal application. Its robust design, certified quality, and user-friendly features make it a top choice for ensuring secure and efficient terminal connections across a wide range of scenarios and occasions.

Customization:

SCED offers customized Spring Terminal Block solutions that meet the highest industry standards with CE and ISO9001 certifications. Designed with a 5.0mm pitch and a rated voltage of 300V, this spring type terminal ensures reliable and secure connections using a spring clamp connection type. Our terminal blocks are available in a 1 level configuration, perfect for various electrical applications.

With a minimum order quantity of 500 pieces, we provide competitive pricing—please contact us to get the latest price. Each terminal is carefully packaged in a carton box to ensure safe delivery. We guarantee a delivery time of 50 days, supported by a strong supply ability of 100,000 pieces per day.

We accept flexible payment terms including T/T, AliPay, and PayPal, making it easy to customize and order your terminal blocks. Choose SCED for premium quality spring terminal blocks that meet your specific terminal requirements.

Support and Services:

Our Spring Terminal Block product is designed to provide reliable and efficient electrical connections with ease of use and safety in mind. For technical support, our team is available to assist with installation guidance, troubleshooting, and product specifications to ensure optimal performance in your applications.

We offer comprehensive services including product selection assistance, custom configuration options, and detailed documentation to support your project requirements. Our technical experts can provide advice on compatibility, wiring methods, and best practices for maintaining secure and stable connections.

In addition, we provide training resources and on-site support to help you maximize the benefits of the Spring Terminal Block system. Whether you need help with initial setup or ongoing maintenance, our support services are dedicated to ensuring your satisfaction and success.

For further information on product updates, firmware upgrades, and warranty services, please refer to the official product manual and online resources. We are committed to delivering high-quality support to meet the evolving needs of our customers.

Packing and Shipping:

Our Spring Terminal Block is carefully packaged to ensure maximum protection during transit. Each unit is securely placed in a sturdy box with anti-static and cushioning materials to prevent any damage or deformation.

The packaging is designed to keep the product clean, dry, and safe from external impacts. Clear labeling and handling instructions are included to facilitate smooth logistics and storage.

For shipping, we use reliable carriers with tracking options to ensure timely and safe delivery. Multiple units are palletized and shrink-wrapped for bulk orders to maintain stability and prevent shifting during transport.

We also offer customized packaging solutions upon request to meet specific needs or compliance requirements.

FAQ:

Q1: What certifications does the SCED Spring Terminal Block have?

A1: The SCED Spring Terminal Block is certified with CE and ISO9001, ensuring high quality and safety standards.

Q2: What is the minimum order quantity for the SCED Spring Terminal Block?

A2: The minimum order quantity for the SCED Spring Terminal Block is 500 pieces.

Q3: How can I get the price for the SCED Spring Terminal Block?

A3: To get the latest price for the SCED Spring Terminal Block, please contact the supplier directly for a quotation.

Q4: What are the packaging details for the SCED Spring Terminal Block?

A4: The SCED Spring Terminal Blocks are packaged in carton boxes to ensure safe delivery.

Q5: What payment methods are accepted for purchasing the SCED Spring Terminal Block?

A5: The accepted payment methods include T/T (Telegraphic Transfer), AliPay, and PayPal.

Q6: What is the typical delivery time for the SCED Spring Terminal Block?

A6: The delivery time for the SCED Spring Terminal Block is typically 50 days.

Q7: What is the supply capacity for the SCED Spring Terminal Block?

A7: The supply ability is up to 100,000 pieces per day, ensuring steady availability for large orders.
