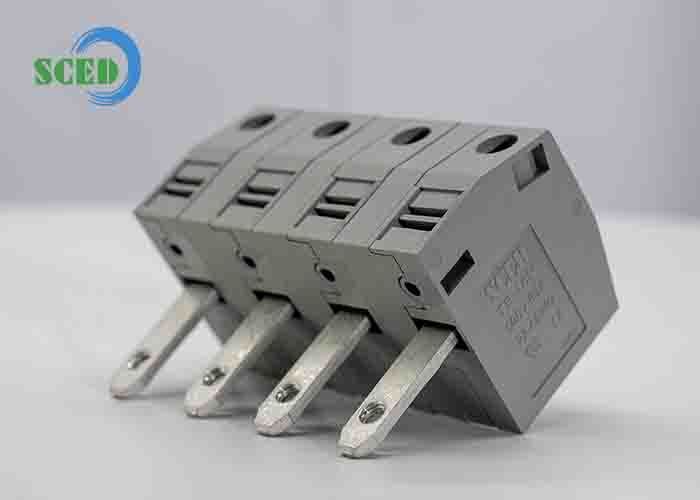

Terminal Width 10.00mm Panel Mounted Terminal Blocks with Nickel Plating Providing Electrical Contact in Harsh Environments

Product Description:

The Through Panel Terminal Blocks are an essential component for electrical and electronic applications requiring secure and reliable connections through a panel. Designed to facilitate efficient wiring and connectivity, these terminal blocks are ideal for use in various industrial and commercial settings. They provide a robust solution for connecting multiple circuits while ensuring ease of installation and maintenance.

One of the standout features of these Through Mount Terminal Blocks is their versatile number of poles, ranging from 2 to 24 poles. This wide range allows users to select the appropriate configuration based on their specific application needs, whether it’s a simple two-pole connection or a more complex multi-pole setup. With the number of positions also matching the number of poles, these terminal blocks offer flexibility and scalability for different wiring requirements.

Constructed with high-quality materials, the Through Panel Terminal Blocks feature a steel clamp cage that guarantees a secure and stable clamping mechanism. The steel clamp cage provides excellent mechanical strength and durability, ensuring that wires remain firmly in place even under vibration or mechanical stress. This feature is particularly important in industrial environments where reliability and safety are paramount.

Another critical attribute of these terminal blocks is the nickel plating applied to their metallic components. Nickel plating enhances corrosion resistance, which significantly extends the lifespan of the terminal blocks, especially in harsh or corrosive environments. This plating also improves the overall conductivity and minimizes electrical resistance, ensuring optimal performance of the electrical connections.

Safety and compliance are also key considerations for these Through Mount Terminal Blocks. They come with CE and RoHS certifications, demonstrating adherence to stringent European safety, health, and environmental standards. The CE certification ensures that the product meets the essential requirements of relevant European directives, while RoHS compliance guarantees that hazardous substances are restricted, making these terminal blocks an environmentally friendly choice.

These Panel Connection Blocks are designed to be mounted through the panel, providing a neat and organized solution for wiring assemblies. The through-panel mounting style simplifies the connection process by allowing cables to be connected on both sides of the panel, reducing wiring complexity and improving accessibility. This design is especially advantageous in control panels, distribution boards, and other electrical enclosures where space optimization and ease of maintenance are critical.

In addition to their functional benefits, the Through Mount Terminal Blocks offer excellent versatility, making them suitable for a wide range of applications including industrial automation, machinery, power distribution, and control systems. They are also ideal for use in renewable energy installations, transportation systems, and building automation due to their reliable performance and compliance with international standards.

Installation of these terminal blocks is straightforward, thanks to their user-friendly design and robust construction. The steel clamp cage mechanism allows for quick and secure wire clamping without the need for specialized tools, reducing installation time and labor costs. The nickel plating further ensures that the terminal blocks maintain their performance over time, even with frequent connection and disconnection cycles.

Overall, the Through Panel Terminal Blocks offer a comprehensive solution for secure, durable, and efficient electrical connections through panels. Their combination of nickel plating, a steel clamp cage, a flexible range of poles and positions, and compliance with CE and RoHS standards makes them a reliable choice for professionals seeking high-quality Panel Connection Blocks. Whether for new installations or retrofits, these terminal blocks provide the performance and safety required in today’s demanding electrical environments.

Features:

• Product Name: Through Panel Terminal Blocks
• Rated Surge Voltage: No Abnormal Within 1 Minute
• Stripping Length: 11mm
• Mounting Type: Through Panel Mounting
• Number of Poles: 2 To 24 Poles
• Clamp Cage Material: Steel
• Designed as Panel Insertion Terminal Blocks for easy installation
• Reliable Panel mounted terminal blocks ensuring secure connections
• Durable Through-wall Terminal Blocks suitable for various applications

Technical Parameters:

Applications:

SCED Through Panel Terminal Blocks are designed to offer reliable and efficient electrical connections in a variety of industrial and commercial applications. These Panel Placement Terminal Blocks are ideal for situations where secure, easy-to-maintain wiring is essential, making them a popular choice across numerous sectors. With a rated voltage of 600V and a terminal width of 10.00mm, these terminal blocks provide robust performance for medium to high voltage electrical systems.

Thanks to their nickel plating, SCED Through Panel Terminal Blocks offer excellent corrosion resistance and durability, ensuring long-term stability even in harsh environments. The 24mm stripping length allows for precise wire insertion and secure connection, which is critical in maintaining consistent electrical contact and preventing accidental disconnections. These features make the product highly suitable for panel placement in control cabinets, distribution boards, and electrical enclosures.

SCED’s Panel Placement Terminal Blocks are widely used in industries such as automation, power generation, manufacturing, and building electrical installations. They are particularly effective in applications requiring through-panel mounting, where wiring needs to pass securely through the panel for organized and space-saving electrical layouts. The product’s conformity to CE and ISO9001 standards ensures that it meets international safety and quality requirements, providing confidence to engineers and installers alike.

The supply ability of 100,000 pieces per day guarantees that large-scale projects can be supported without delay. With a minimum order quantity of 500 pieces, businesses can procure these terminal blocks efficiently, while the packaging in sturdy carton boxes ensures safe delivery. SCED offers flexible payment terms including T/T, AliPay, and PayPal, making transactions straightforward and convenient. Typically, the delivery time is around 30 days, which aligns well with project timelines.

In summary, SCED Through Panel Terminal Blocks are an excellent choice for panel placement applications that demand high quality, reliable performance, and compliance with international standards. Whether used in industrial control panels, electrical distribution systems, or any scenario requiring secure through-panel wiring, these terminal blocks deliver consistent and safe electrical connections, backed by strong manufacturing capabilities and customer-focused service.

Customization:

SCED offers professional product customization services for our Through Panel Terminal Blocks, ensuring they meet your specific requirements. Our Terminal Junction Blocks and Panel Insertion Terminal Blocks are designed with a terminal width of 10.00mm and feature screw connection types for reliable and secure wiring.

Manufactured with high-quality PA66 housing rated UL 94V-0 and nickel plating, our Through Panel Terminal Blocks provide excellent durability and electrical insulation, supporting a rated voltage of 600V. All products are certified with CE and ISO9001, guaranteeing compliance with international quality standards.

We cater to bulk orders with a minimum order quantity of 500 pieces and a supply ability of 100,000 pcs per day. Packaging is done carefully in carton boxes to ensure safe delivery. Our standard delivery time is 30 days.

For payment, we accept T/T, AliPay, and PayPal, providing flexible options for our customers. Contact us to get the latest price and customize your Terminal Junction Blocks, Panel Insertion Terminal Blocks, and Through Panel Terminal Blocks to fit your project needs perfectly.

Support and Services:

Our Through Panel Terminal Blocks are designed to provide reliable and secure electrical connections in a wide range of industrial and commercial applications. For technical support, please ensure you have the product model number and specifications available to facilitate prompt assistance.

Installation guidance includes ensuring proper panel thickness compatibility and correct torque settings for terminal screws to maintain optimal electrical conductivity and mechanical stability.

For troubleshooting, check for secure wire connections, absence of corrosion, and verify that the terminal block is not subjected to voltages or currents beyond its rated capacity.

We offer comprehensive services including customization options, application consulting, and replacement parts to support your project needs and maintain system performance.

Refer to the product datasheets and user manuals available on our website for detailed technical information, wiring diagrams, and safety instructions to ensure proper use and compliance with industry standards.

Packing and Shipping:

Our Through Panel Terminal Blocks are carefully packaged to ensure maximum protection during transit. Each unit is securely placed in anti-static bags to prevent any damage from electrostatic discharge. The terminal blocks are then arranged in sturdy, corrugated cardboard boxes with adequate cushioning materials to absorb shocks and vibrations.

For bulk orders, the terminal blocks are packed in larger cartons with clear labeling for easy identification and handling. All packages are sealed tightly to prevent moisture ingress and contamination.

We offer reliable shipping options worldwide, utilizing trusted carriers to guarantee timely and safe delivery. Tracking information is provided for all shipments to keep you informed of your order status from dispatch to arrival.

Special packaging requests and custom labeling are available upon request to meet your specific requirements.

FAQ:

Q1: What certifications does the SCED Through Panel Terminal Blocks have?

A1: The SCED Through Panel Terminal Blocks are certified with CE and ISO9001, ensuring high quality and compliance with international standards.

Q2: What is the minimum order quantity for the SCED Through Panel Terminal Blocks?

A2: The minimum order quantity for these terminal blocks is 500 pieces.

Q3: How are the SCED Through Panel Terminal Blocks packaged?

A3: The terminal blocks are securely packaged in carton boxes to ensure safe delivery.

Q4: What is the typical delivery time for an order of SCED Through Panel Terminal Blocks?

A4: The usual delivery time is 30 days after order confirmation.

Q5: What payment methods are accepted for purchasing SCED Through Panel Terminal Blocks?

A5: We accept payments via T/T (Telegraphic Transfer), AliPay, and PayPal for your convenience.

Q6: What is the supply capacity of SCED for Through Panel Terminal Blocks?

A6: SCED has a supply ability of 100,000 pieces per day, ensuring timely fulfillment of large orders.

Q7: How can I get the price for SCED Through Panel Terminal Blocks?

A7: Please contact us directly to get the latest price, as it may vary depending on order quantity and specifications.
