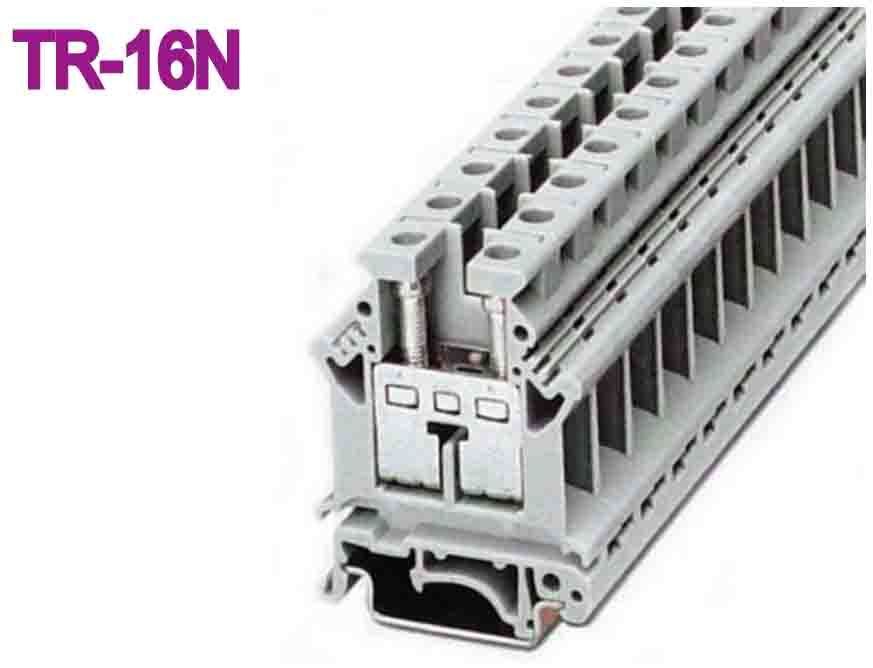

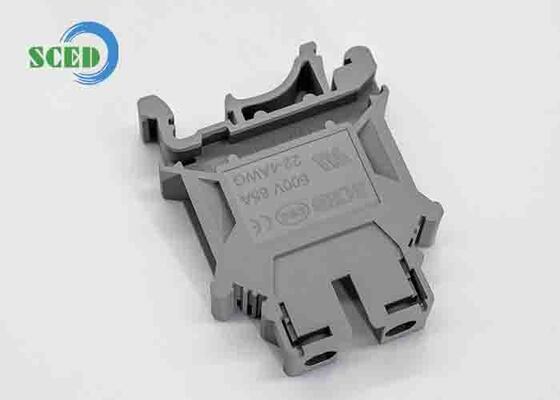

Gray Panel Mounting Terminal Blocks Number of Poles 2 To 24 Poles Providing and Durable Electrical Connection Solutions

Product Description:

Through Panel Terminal Blocks are essential components in modern electrical and electronic systems, designed to provide secure and reliable connections across panels. These terminal blocks are specifically engineered for panel mounting applications, offering a robust solution for connecting wires through a panel with ease and efficiency. Among the various types available, the Through Panel Terminal Blocks stand out for their unique ability to facilitate connections that pass directly through a panel, making them ideal for complex wiring configurations and control cabinets.

One of the key features of these terminal blocks is their screw connection type, which ensures a strong and stable electrical connection. The screw connection mechanism allows for easy insertion and tightening of wires, providing a secure hold that minimizes the risk of loose connections or electrical faults. This type of connection is highly favored in industrial and commercial settings due to its reliability and ease of maintenance, enabling quick wire replacements or adjustments without compromising the integrity of the connection.

The design of these terminal blocks includes a stripping length of 24mm, which is optimized to accommodate standard wire sizes while ensuring sufficient exposed conductor length for a secure connection. This stripping length strikes a balance between providing enough conductor exposure for reliable contact and minimizing excess exposed wire that could lead to short circuits or other safety hazards.

In terms of dimensions, the terminal width of 10.00mm makes these Through Panel Terminal Blocks compact yet spacious enough to handle the required wire sizes comfortably. This width allows for efficient use of panel space, enabling denser wiring configurations without sacrificing accessibility or ease of installation. The compact size also contributes to the neat and organized appearance of electrical panels, which is crucial for both functionality and aesthetics in professional installations.

Safety and compliance are paramount when selecting terminal blocks, and these Through Panel Terminal Blocks meet stringent industry standards. They come with CE and RoHS certifications, ensuring that they comply with European safety, health, and environmental requirements. The CE certification guarantees that the product meets all relevant European directives, while the RoHS certification confirms that the materials used are free from hazardous substances, making them environmentally friendly and safe for use in various applications.

Another significant attribute of these terminal blocks is their rated surge voltage capability, which is designed to withstand abnormal voltage conditions for at least one minute without damage or failure. This feature is critical in protecting electrical systems from transient voltage spikes, which can occur due to lightning strikes, switching operations, or other electrical disturbances. By maintaining stability under surge conditions, these terminal blocks enhance the overall reliability and longevity of the electrical system.

Panel Insertion Terminal Blocks, as a subset of Through Panel Terminal Blocks, offer the added benefit of easy installation through simple insertion into the panel cutouts. This design facilitates quick assembly and disassembly, making maintenance and upgrades more efficient. The combination of panel mounting and insertion capabilities makes these terminal blocks highly versatile, suitable for a broad range of applications including industrial control panels, automation systems, power distribution units, and more.

In summary, Through Panel Terminal Blocks represent a critical element in electrical connection technology, combining ease of installation, secure screw connections, optimal stripping length, compact terminal width, and robust safety certifications. Their ability to handle rated surge voltages and compliance with CE and RoHS standards further underline their suitability for demanding industrial environments. Whether referred to as Panel Mounting Terminal Blocks, Through Panel Terminal Blocks, or Panel Insertion Terminal Blocks, these components deliver dependable performance, safety, and convenience for electrical wiring and panel assembly tasks.

Features:

• Product Name: Through Panel Terminal Blocks
• Suitable for Panel Connection Blocks and Through-wall Terminal Blocks applications
• Stripping Length: 11mm
• Stripping Length for Wire: 24mm
• Rated Surge Voltage: No Abnormal Within 1 Minute
• Available Number of Poles: 2 to 24 Poles
• Certifications: CE, RoHS

Technical Parameters:

Applications:

SCED Through Panel Terminal Blocks are engineered to provide reliable and efficient electrical connections in a wide range of applications. These terminal blocks, certified by CE and ISO9001, ensure high quality and safety standards, making them ideal for use in demanding industrial and commercial environments. With a supply ability of 100,000 pcs per day and a minimum order quantity of 500 units, SCED offers a dependable solution for large-scale projects requiring robust electrical connections.

Designed for through panel mounting, SCED’s Through Panel Terminal Blocks are perfect for applications where secure and stable panel insertion terminal blocks are required. These terminal blocks support 2 to 24 poles, accommodating various wiring needs and configurations. The 24mm stripping length allows for precise wire preparation, ensuring optimal electrical contact and reducing installation time. Additionally, their rated surge voltage capability guarantees no abnormal performance within 1 minute under surge conditions, enhancing the safety and durability of electrical systems.

Panel Mounting Terminal Blocks by SCED are widely used in electrical cabinets, control panels, and distribution boards where neat and organized wiring is essential. Their through mount terminal blocks design facilitates easy installation and maintenance while providing excellent mechanical stability. These terminal blocks are suitable for use in automation systems, industrial machinery, electrical power distribution, and renewable energy installations, where reliable and safe electrical connections are critical.

SCED provides flexible payment terms including T/T, AliPay, and PayPal, catering to various customer preferences. The product is packaged securely in carton boxes to prevent damage during transportation, with a delivery time of approximately 30 days. Priced competitively with options to get the latest price upon inquiry, SCED Through Panel Terminal Blocks offer a cost-effective solution without compromising quality.

In summary, SCED Through Panel Terminal Blocks are the ideal choice for anyone seeking durable, certified, and versatile panel insertion terminal blocks. Their through mount terminal blocks design combined with CE and RoHS certifications ensures compliance with international standards, making them suitable for a variety of electrical installation scenarios where safety, reliability, and ease of use are paramount.

Customization:

SCED offers high-quality Through Panel Terminal Blocks, designed specifically for efficient Panel Mounting Terminal Blocks applications. Our Panel Insertion Terminal Blocks feature a robust PA66 housing with UL 94V-0 flame retardant rating, ensuring safety and durability. Certified by CE and ISO9001, these Panel Connector Blocks guarantee reliable performance with a rated surge voltage of no abnormality within 1 minute.

With a minimum order quantity of 500 pieces, SCED provides competitive pricing—get the latest price by contacting us directly. Each terminal block is supplied in secure carton box packaging to maintain product integrity during shipping. Our supply ability is 100,000 pieces per day, ensuring prompt fulfillment of your orders.

The Through Panel Mounting design allows easy installation and secure connections, with a stripping length of 24mm and a stylish gray color that fits seamlessly into your electrical panel setups. We offer flexible payment terms including T/T, AliPay, and PayPal, with a standard delivery time of 30 days.

Choose SCED for premium Panel Mounting Terminal Blocks, Panel Insertion Terminal Blocks, and Panel Connector Blocks that meet your industrial needs with exceptional quality and service.

Support and Services:

Our Through Panel Terminal Blocks are designed to provide reliable and secure electrical connections in various industrial applications. For technical support, please refer to the product datasheet and installation manual available on our website, which provide detailed information on specifications, mounting, wiring, and safety instructions.

If you encounter any issues during installation or operation, ensure that the terminal blocks are mounted correctly through the panel, and that all connections are tightened to the recommended torque values. Verify compatibility with your system voltage and current ratings to prevent any malfunction.

We offer comprehensive services including product customization, application consulting, and troubleshooting assistance to help optimize your use of Through Panel Terminal Blocks. Our technical team is equipped to support integration into your systems and address any specific requirements you may have.

For additional resources, you can access FAQs, instructional videos, and software tools designed to facilitate your project planning and implementation. Regular updates and new product releases are also communicated through our official channels to keep you informed about the latest advancements.

Our commitment is to ensure maximum performance and safety of your electrical connections through high-quality terminal block solutions combined with expert technical support and responsive service.

Packing and Shipping:

Each Through Panel Terminal Block is carefully packaged to ensure maximum protection during transit. The products are securely placed in anti-static bags and cushioned with foam inserts to prevent damage from shocks and vibrations. Multiple units are then packed into sturdy cardboard boxes, clearly labeled with product information and handling instructions.

For shipping, we use reliable carriers that offer tracking and insurance options to guarantee safe and timely delivery. Our packaging is designed to withstand various shipping conditions, maintaining the integrity and quality of the terminal blocks until they reach the customer.

FAQ:

Q1: What certifications does the SCED Through Panel Terminal Blocks have?

A1: The SCED Through Panel Terminal Blocks are certified with CE and ISO9001, ensuring high quality and compliance with international standards.

Q2: What is the minimum order quantity for these terminal blocks?

A2: The minimum order quantity for SCED Through Panel Terminal Blocks is 500 pieces.

Q3: How is the product packaged for shipping?

A3: The Through Panel Terminal Blocks are securely packaged in carton boxes to ensure safe delivery.

Q4: What are the payment terms available for purchasing these terminal blocks?

A4: We accept payment via T/T (Telegraphic Transfer), AliPay, and PayPal for your convenience.

Q5: What is the typical delivery time for orders of SCED Through Panel Terminal Blocks?

A5: The standard delivery time is approximately 30 days after order confirmation.
