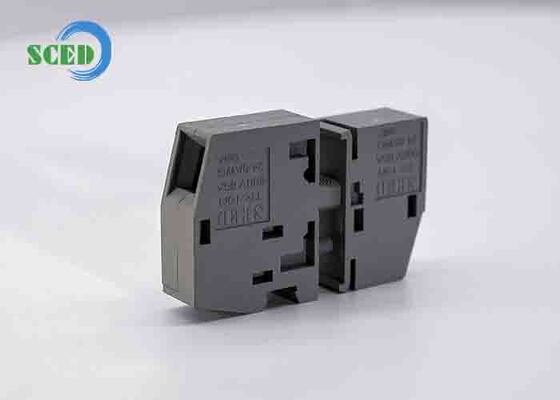

CE Certified Through Panel Terminal Blocks Featuring Stripping Length 11mm and Number Of Positions 2 To 24 for Panel Wiring

Product Description:

The Through Panel Terminal Blocks are an essential component designed for secure and efficient electrical connections in various industrial and commercial applications. These terminal blocks are specifically engineered to facilitate through panel mounting, providing a reliable and robust solution for connecting wires through a panel or enclosure. With a focus on durability and ease of installation, these terminal blocks stand out as an excellent choice for engineers and technicians seeking dependable panel connector blocks.

One of the key features of these terminal blocks is their mounting type: through panel mounting. This design allows the terminal block to be securely fixed through the panel, ensuring a stable and vibration-resistant connection point. This is particularly beneficial in environments where mechanical stress or movement is a concern, as the terminal block remains firmly in place, maintaining consistent electrical contact. This mounting method also simplifies wiring layouts by allowing connections to be accessible from both sides of the panel, enhancing maintenance and troubleshooting efficiency.

In addition to their practical mounting design, these terminal blocks boast a nickel plating finish. Nickel plating is renowned for its excellent corrosion resistance and enhanced durability, making these terminal blocks suitable for use in harsh environments or applications where longevity is critical. The plating not only protects the metal surfaces from oxidation and wear but also contributes to a more reliable electrical connection by preventing the formation of insulating layers on contact surfaces.

Compliance with industry standards is a priority for these through panel terminal blocks. They carry CE and RoHS certifications, ensuring that the product meets stringent safety, health, and environmental requirements. The CE mark indicates adherence to European standards for health, safety, and environmental protection, while the RoHS certification confirms that the terminal blocks are free from hazardous substances, making them environmentally friendly and safe for use in electronic equipment.

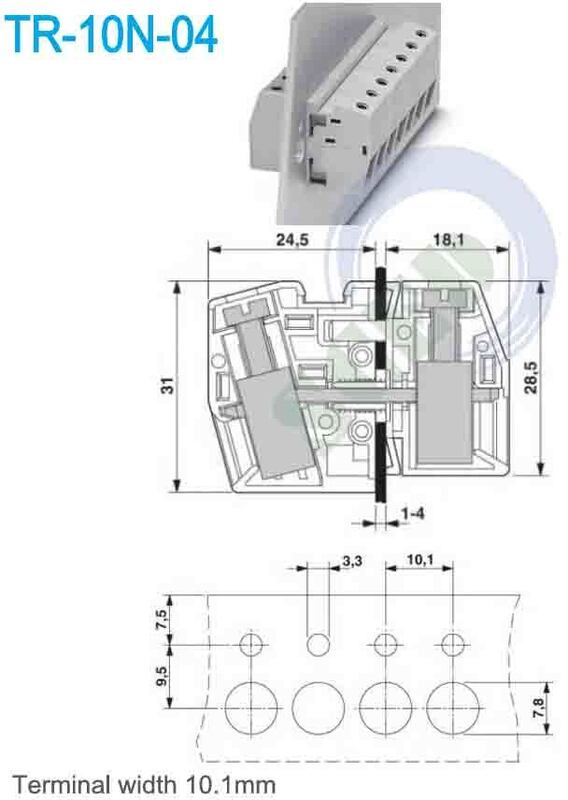

With a terminal width of 10.00mm, these panel mounting terminal blocks provide ample space for wire insertion and secure connection. This width is optimized to balance compactness with ease of use, allowing for straightforward wiring without compromising on connection stability. The generous terminal width also facilitates the accommodation of various wire sizes, making these terminal blocks versatile and adaptable to different wiring needs.

The connection type employed in these terminal blocks is screw connection, a widely used and trusted method for securing electrical wires. Screw connections offer a strong mechanical bond and excellent electrical conductivity, ensuring that wires remain firmly attached even under vibration or thermal cycling conditions. This type of connection is also user-friendly, allowing for easy installation and removal of wires without specialized tools, which is ideal for maintenance and modifications.

Collectively, these features make the Through Panel Terminal Blocks a superior choice for applications requiring reliable panel connector blocks. Whether used in control panels, distribution boards, or other electrical enclosures, these panel insertion terminal blocks provide a secure, durable, and compliant solution for managing electrical connections through panels. Their design and certifications ensure they meet the demands of modern electrical systems while supporting ease of installation and maintenance.

In summary, the Through Panel Terminal Blocks combine through panel mounting convenience, nickel plating durability, CE and RoHS certifications, a practical 10.00mm terminal width, and reliable screw connection technology. These attributes collectively ensure that the product delivers high performance, safety, and environmental compliance, making it an indispensable component for any panel mounting terminal block application. Whether you are upgrading existing systems or designing new electrical panels, these panel connector blocks offer the quality and reliability you need for effective electrical connectivity.

Features:

• Product Name: Through Panel Terminal Blocks
• Connection Type: Screw Connection for secure and reliable wiring
• Number of Poles: Available in 2 to 24 poles to suit various applications
• Housing Material: Made from PA66 with UL 94V-0 flame retardant rating
• Rated Surge Voltage: No abnormality within 1 minute, ensuring safety and durability
• Certifications: Complies with CE and RoHS standards
• Designed as Panel Insertion Terminal Blocks for easy installation
• Functions effectively as Panel Connector Blocks for versatile panel mounting
• Specifically engineered Through Panel Terminal Blocks for robust electrical connections

Technical Parameters:

This product belongs to the category of Through Mount Terminal Blocks, offering reliable and secure Panel Mounting Terminal Blocks solutions. It is also recognized as Panel Placement Terminal Blocks, designed for efficient and safe electrical connections through panels.

Applications:

The SCED Through Panel Terminal Blocks are designed to provide reliable and efficient electrical connections in a wide range of application occasions and scenarios. These high-quality panel insertion terminal blocks are ideal for industrial control systems, automation equipment, power distribution panels, and electrical cabinets. Their robust construction and advanced features make them suitable for use in manufacturing plants, electrical workshops, and assembly lines where stable and secure panel connection blocks are essential for system integrity and safety.

Thanks to their versatile design, SCED Through Panel Terminal Blocks can be used in various industrial sectors such as automotive, telecommunications, energy management, and building automation. They are particularly useful in scenarios requiring multiple connection points, as they support a number of positions ranging from 2 to 24. This flexibility allows for easy expansion and customization of electrical circuits, making them perfect for complex wiring systems and control panels.

These terminal blocks have been certified with CE and ISO9001, ensuring compliance with international quality and safety standards. Additionally, they meet RoHS requirements, making them an environmentally responsible choice for modern electrical installations. The steel clamp cage combined with nickel plating provides excellent durability and corrosion resistance, ensuring stable electrical contact and long service life even under demanding conditions.

With a rated surge voltage capability of no abnormality within 1 minute, SCED Through Panel Terminal Blocks guarantee safety and reliability in preventing electrical surges and transient voltages. Their packaging in carton boxes ensures secure transportation and storage, and with a supply ability of 100,000 pcs per day, SCED can accommodate large orders efficiently. The minimum order quantity is 500 units, and customers can obtain the latest price by contacting the supplier directly.

Delivery time is typically around 30 days, and flexible payment terms including T/T, AliPay, and PayPal are supported to facilitate smooth transactions. Whether used in new installations or maintenance projects, SCED panel insertion terminal blocks and panel connection blocks offer a dependable solution for ensuring seamless and secure electrical connections across a broad range of industrial and commercial applications.

Customization:

SCED offers customized Through Panel Terminal Blocks designed to meet your specific requirements. Our panel mounted terminal blocks are available with 2 to 24 positions and poles, featuring a terminal width of 10.00mm and a stripping length of 11mm for precise and reliable connections. With screw connection type, these panel placement terminal blocks ensure secure and stable wiring solutions for your applications.

All SCED Through Panel Terminal Blocks are manufactured under strict quality standards and come certified with CE and ISO9001, guaranteeing excellent performance and safety. We support a minimum order quantity of 500 pieces, with a supply ability of 100,000 pcs per day to meet both small and large scale demands.

Our packaging details include sturdy carton boxes to ensure safe delivery, with a delivery time of approximately 30 days. Payment terms are flexible, accepting T/T, AliPay, and PayPal for your convenience. Contact us to get the latest price and experience the quality of our panel mounted terminal blocks tailored for your needs.

Support and Services:

Our Through Panel Terminal Blocks are designed for reliable and secure electrical connections in various industrial applications. For technical support, please refer to the product manual for installation guidelines, wiring instructions, and safety precautions to ensure optimal performance.

We offer comprehensive services including product selection assistance, customization options, and troubleshooting support to meet your specific requirements. Our technical team is available to help with system integration, compatibility questions, and maintenance tips to maximize the lifespan of your terminal blocks.

For additional resources, you can access detailed datasheets, CAD files, and application notes on our website. We also provide training sessions and webinars to help you understand the best practices for using Through Panel Terminal Blocks effectively.

Regular maintenance and inspection are recommended to prevent connection failures and ensure consistent electrical conductivity. If you encounter any issues, please consult the troubleshooting section of the product documentation or contact our technical support team for further assistance.

Packing and Shipping:

Our Through Panel Terminal Blocks are carefully packaged to ensure maximum protection during transit. Each terminal block is individually secured in anti-static material and placed in a sturdy, corrugated cardboard box. The packaging is designed to prevent damage from moisture, dust, and mechanical impact, maintaining product integrity until delivery.

For shipping, we use reliable carriers with tracking options to guarantee timely and safe delivery. Bulk orders are palletized and shrink-wrapped to provide additional stability and protection. We also offer customized packaging solutions to meet specific customer requirements. All shipments include detailed packing lists and handling instructions to facilitate smooth receiving and installation processes.

FAQ:

Q1: What certifications do SCED Through Panel Terminal Blocks have?

A1: SCED Through Panel Terminal Blocks are certified with CE and ISO9001, ensuring high quality and safety standards.

Q2: What is the minimum order quantity for SCED Through Panel Terminal Blocks?

A2: The minimum order quantity for SCED Through Panel Terminal Blocks is 500 pieces.

Q3: How can I get the price for SCED Through Panel Terminal Blocks?

A3: To get the latest price for SCED Through Panel Terminal Blocks, please contact our sales team directly.

Q4: What are the payment terms available for purchasing SCED Through Panel Terminal Blocks?

A4: We accept payment via T/T, AliPay, and PayPal for your convenience.

Q5: What is the typical delivery time and packaging for SCED Through Panel Terminal Blocks?

A5: The delivery time is typically 30 days, and the products are securely packaged in carton boxes to ensure safe shipment.
