Rated Surge Voltage No Abnormal Within 1 Minute Gray Through Panel Terminal Blocks Providing Electrical Connections for Industrial

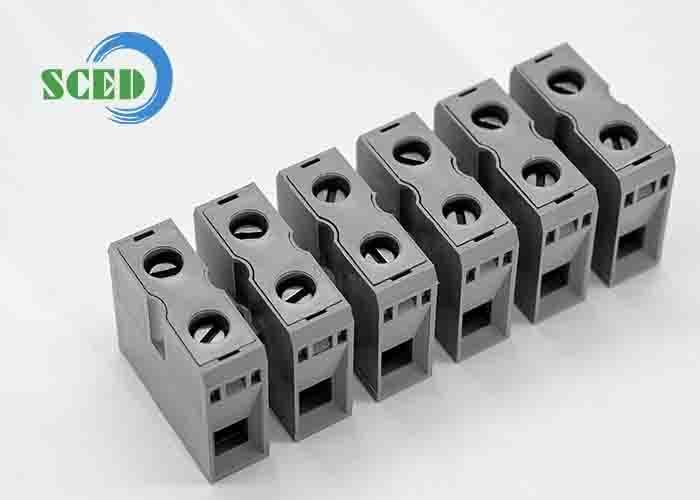

Product Description:

The Through Panel Terminal Blocks are an essential component in modern electrical and electronic applications, providing a reliable and efficient means of connecting wires through a panel with ease and security. Designed to accommodate a range of wiring needs, these terminal blocks are available with a number of poles ranging from 2 to 24, making them versatile enough to suit various industrial, commercial, and residential projects.

One of the standout features of these Through Panel Terminal Blocks is their precise stripping length of 11mm. This specification ensures that wires are stripped to the optimal length for secure connection, reducing the risk of loose contacts or electrical faults. The consistent stripping length also simplifies the installation process, making it quicker and more efficient for technicians and engineers working on complex wiring systems.

Constructed with durability in mind, the terminal blocks feature nickel plating, which provides excellent corrosion resistance and enhances the longevity of the product. Nickel plating also improves the conductivity of the connection points, ensuring stable and uninterrupted electrical flow even in demanding environments. This plating is especially beneficial in applications exposed to moisture or varying temperatures, where corrosion could otherwise compromise the integrity of the electrical connections.

These terminal blocks are specifically designed as Through Mount Terminal Blocks, allowing them to be securely mounted through a panel. This method of mounting provides a robust mechanical connection, minimizing vibrations and movement that could disrupt electrical contacts. Through panel mounting also facilitates easier maintenance and inspection, as the terminal blocks are accessible from both sides of the panel.

Available in configurations ranging from 2 to 24 poles, these Panel Connector Blocks offer flexibility to accommodate different wiring schemes and circuit requirements. Whether a project requires just a few connections or a more complex network of wires, these terminal blocks can be tailored to meet the specific needs. The range of poles also allows for neat and organized wiring layouts, which is critical in maintaining safety standards and simplifying troubleshooting.

Compliance with industry standards is a key consideration in the design of these Panel Connector Blocks. They are certified with CE and RoHS certifications, ensuring that they meet stringent safety, environmental, and quality requirements. The CE certification guarantees that the product adheres to European safety directives, while the RoHS certification confirms that the terminal blocks are free from hazardous substances, making them environmentally friendly and safe for use in various applications.

In summary, the Through Panel Terminal Blocks are an excellent choice for anyone seeking reliable, durable, and versatile panel connector blocks. Their precise 11mm stripping length, robust nickel plating, and wide range of pole options make them suitable for a diverse array of applications. The through mount design ensures secure installation and ease of maintenance, while the CE and RoHS certifications provide assurance of quality and safety. Whether used in industrial control panels, machinery, or electrical distribution systems, these terminal blocks deliver dependable performance and long-term reliability.

Features:

• Product Name: Through Panel Terminal Blocks
• Mounting Type: Through Panel Mounting for secure installation
• Stripping Length: 11mm for efficient wire preparation
• Certifications: CE and RoHS compliant ensuring safety and environmental standards
• Number of Poles: Available from 2 to 24 poles to suit various applications
• Rated Voltage: 600V suitable for a wide range of electrical systems
• Designed as Panel Insertion Terminal Blocks for easy and reliable panel integration
• Functions as Terminal Junction Blocks providing efficient circuit connections
• Specialized Through Panel Terminal Blocks for robust and secure panel mounting

Technical Parameters:

Applications:

The SCED Through Panel Terminal Blocks are engineered to provide reliable and secure electrical connections in a wide range of industrial and commercial applications. Known for their robust construction and high-quality materials, these panel mounted terminal blocks are ideal for use in electrical control panels, distribution boards, and machinery where dependable terminal junction blocks are required. The through mounting design ensures easy installation and firm attachment to panels, making them suitable for environments that demand stable and vibration-resistant connections.

Certified with CE and ISO9001, SCED Through Panel Terminal Blocks meet stringent international quality and safety standards, ensuring that your electrical systems maintain optimal performance and safety. The terminal blocks feature a PA66 housing with UL 94V-0 flame retardant rating, providing excellent durability and resistance to high temperatures. Additionally, the steel clamp cage enhances the mechanical strength and electrical conductivity of the terminal junction blocks, making them suitable for demanding electrical applications.

These terminal blocks are designed to withstand rated surge voltages with no abnormalities within 1 minute, making them a reliable choice for protecting electrical circuits against transient voltage spikes. Their through panel mounting type facilitates secure attachment through the panel, which is essential for applications requiring robust and accessible wiring solutions.

SCED offers a minimum order quantity of 500 pieces, with competitive pricing available upon request. The products are carefully packaged in carton boxes to ensure safe delivery and are supplied with a daily capacity of 100,000 pieces, supporting large-scale projects and rapid deployment. Delivery time is typically 30 days, and flexible payment terms including T/T, AliPay, and PayPal are accepted, ensuring a convenient procurement process for customers worldwide.

Typical application scenarios for SCED Through Mount Terminal Blocks include industrial automation systems, electrical switchgear, control cabinets, power distribution units, and various panel assembly tasks. Their reliable clamp cage mechanism and secure mounting make them indispensable components in both new installations and maintenance operations. Whether you need terminal junction blocks for signal transmission, power distribution, or grounding, SCED’s through panel terminal blocks offer a high-quality, certified solution tailored to meet the rigorous demands of modern electrical infrastructure.

Customization:

SCED offers customizable Through Panel Terminal Blocks designed to meet your specific requirements. Our Terminal Junction Blocks come with certifications including CE, ISO9001, and RoHS, ensuring high quality and compliance with international standards. With a supply ability of 100,000 pcs per day, we can efficiently fulfill large orders with a minimum order quantity of 500 pieces.

These Panel Insertion Terminal Blocks are available with 2 to 24 positions and poles, supporting a rated voltage of 600V. The terminals feature durable nickel plating for enhanced corrosion resistance and long-lasting performance. Packaging is done securely in carton boxes to ensure safe delivery.

We offer flexible payment terms including T/T, AliPay, and PayPal, with a typical delivery time of 30 days. Contact us to get the latest price and experience the quality and reliability of SCED’s Panel Insertion Terminal Blocks for your electrical and industrial applications.

Support and Services:

Our Through Panel Terminal Blocks are designed to provide reliable and secure electrical connections for various industrial and commercial applications. These terminal blocks offer excellent durability, ease of installation, and maintenance convenience, ensuring optimal performance in your electrical systems.

For technical support, our team of experts is available to assist you with product selection, installation guidance, troubleshooting, and customization options to meet your specific requirements. We provide detailed documentation, including datasheets, wiring diagrams, and application notes to help you understand and utilize our Through Panel Terminal Blocks effectively.

We also offer tailored services such as product training, on-site support, and repair services to ensure the longevity and efficiency of your terminal blocks. Our commitment is to deliver superior customer service and technical expertise to support your projects from start to finish.

Whether you need assistance with integrating our Through Panel Terminal Blocks into your system or require after-sales service, we are dedicated to providing prompt and professional support to maximize your satisfaction and operational success.

Packing and Shipping:

Our Through Panel Terminal Blocks are carefully packaged to ensure maximum protection during transit. Each unit is securely placed in individual compartments within sturdy, high-quality cardboard boxes to prevent movement and damage. Protective foam inserts and anti-static materials are used as needed to safeguard the terminals from impact and electrostatic discharge.

For bulk orders, terminal blocks are organized in labeled trays or reels to facilitate easy handling and inventory management. All packaging materials are compliant with environmental standards, ensuring sustainability and safety.

Shipping is carried out through reliable carriers with options for expedited or standard delivery, depending on customer requirements. Each shipment includes a detailed packing list and documentation to ensure smooth customs clearance and prompt delivery. Tracking information is provided to customers for real-time shipment monitoring.

FAQ:

Q1: What certifications do SCED Through Panel Terminal Blocks have?

A1: SCED Through Panel Terminal Blocks are certified with CE and ISO9001, ensuring high quality and compliance with international standards.

Q2: What is the minimum order quantity for SCED Through Panel Terminal Blocks?

A2: The minimum order quantity for SCED Through Panel Terminal Blocks is 500 pieces.

Q3: How can I get the price for SCED Through Panel Terminal Blocks?

A3: You can get the latest price by contacting SCED directly or through their authorized distributors.

Q4: What are the packaging details for the Through Panel Terminal Blocks?

A4: The terminal blocks are packaged in carton boxes to ensure safe delivery.

Q5: What is the typical delivery time and payment terms for ordering SCED Through Panel Terminal Blocks?

A5: The delivery time is typically 30 days. Payment can be made via T/T, AliPay, or PayPal.

Q6: What is SCED's supply ability for Through Panel Terminal Blocks?

A6: SCED can supply up to 100,000 pieces per day, supporting large volume orders efficiently.
