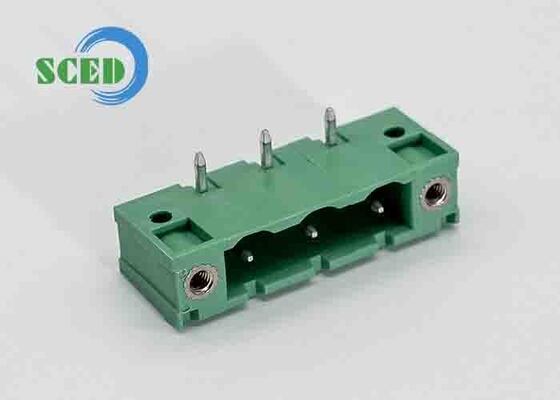

Electrical Connector Plug In Terminal Block Wire Range 16-30 AWG Designed for Din Rail Terminal Block in Control Systems

Product Description:

The Plug In Terminal Block is a highly reliable and efficient electrical component designed to provide secure and stable connections in a wide range of electrical applications. Crafted with precision and quality materials, this terminal block stands out as an essential component for both industrial and commercial electrical systems, ensuring safety, durability, and ease of use.

One of the key features of this Plug In Terminal Block is its robust housing material. Made from PA66, a type of polyamide known for its excellent mechanical strength and resistance to heat and chemicals, the housing is UL 94 V-0 rated. This classification means the material is self-extinguishing and flame retardant, providing an additional layer of safety in electrical installations. The high-quality PA66 housing ensures that the terminal block can withstand harsh operating conditions without compromising performance or safety.

The electrical specifications of this terminal block are equally impressive. It is rated for voltages ranging from 300V to 600V, making it suitable for a variety of applications that require moderate to high voltage handling capabilities. This wide voltage range allows the terminal block to be used in diverse environments, including industrial control panels, power distribution systems, and electronic devices. The ability to handle such voltages reliably makes it a versatile choice for engineers and technicians.

In terms of design, the Plug In Terminal Block features a PCB hole diameter of φ1.2mm. This precise dimension facilitates easy and secure mounting onto printed circuit boards, ensuring stable electrical connections and mechanical support. The terminal block is designed to integrate seamlessly with standard PCB layouts, simplifying the assembly process and improving overall system reliability.

Another important aspect of this product is the wire range it supports. The terminal block accommodates wire gauges from 16 to 30 AWG, covering a broad spectrum of wire sizes commonly used in electrical wiring. This flexibility allows users to connect various types of wires, from relatively thick conductors used for power transmission to thinner wires used for signal and control circuits. The wide wire range enhances the terminal block’s applicability across multiple electrical and electronic projects.

The production of this Plug In Terminal Block is carried out by experienced workers who bring their expertise and attention to detail to every unit manufactured. This skilled craftsmanship ensures that each terminal block meets stringent quality standards, providing consistent performance and reliability. The combination of advanced materials and expert production techniques results in a product that users can trust for their critical electrical connections.

This terminal block functions effectively as an Electrical Terminal Block, offering a secure and insulated connection point for electrical conductors. Its design facilitates easy installation and maintenance, reducing downtime and improving the overall efficiency of electrical systems. Furthermore, it serves as a Feedthrough Terminal Block, allowing electrical signals or power to pass through a panel or enclosure without compromising safety or connection integrity.

Additionally, the terminal block acts as an Insulated Terminal Connector, providing insulation between the conductive parts and the external environment. This insulation is crucial for preventing electrical shorts, protecting users from electrical shock, and complying with safety regulations. The PA66 housing material's flame-retardant properties further enhance the insulation and safety characteristics of the terminal block.

In summary, the Plug In Terminal Block is a versatile, safe, and reliable component ideal for a wide array of electrical applications. Its high-quality PA66 housing with UL 94 V-0 flame retardancy, voltage rating between 300V and 600V, precise PCB hole diameter of φ1.2mm, and flexible wire range from 16 to 30 AWG make it an excellent choice for engineers seeking dependable electrical terminal solutions. Manufactured by experienced workers, this terminal block ensures consistent quality and performance, making it a trusted component in the realms of Electrical Terminal Blocks, Feedthrough Terminal Blocks, and Insulated Terminal Connectors.

Features:

• Product Name: Plug In Terminal Block
• Wire Range: 16-30 AWG
• Voltage Rating: 300V - 600V
• Insulated Terminal Connector for enhanced safety
• Type: Electrical Terminal Block
• Barrier Terminal Block design for reliable electrical isolation
• Produced by experienced workers ensuring high quality
• PCB Hole Diameter: φ1.2mm
• Housing Material: PA66, UL 94, V-0 rated for flame retardancy

Technical Parameters:

Applications:

The SCED Plug In Terminal Block is an essential component widely used in various electrical and electronic applications. Manufactured in China, this high-quality product is certified by CE and ISO9001, ensuring reliable performance and safety. Designed primarily for wire connecting, the terminal block supports a voltage rating ranging from 300V to 600V, making it suitable for both low and medium voltage applications. Its compact size of 19.2x9.5mm (with variations available as per drawing) and a PCB hole diameter of φ1.2mm allow for easy integration into different circuit boards and electrical panels.

One of the most common application occasions for the SCED Plug In Terminal Block is in industrial automation systems. These systems often require secure and efficient connections of wires to various control devices, sensors, and actuators. The terminal block’s poles, ranging from 2P to 24P, offer flexibility to accommodate different wiring needs, allowing users to customize their setups according to specific project requirements. This makes it an ideal choice for creating robust Barrier Terminal Blocks or Feed Through Terminal Blocks that ensure safe and organized connections.

In addition to industrial automation, these terminal blocks are extensively used in power distribution panels, control cabinets, and junction boxes. The Feed Through Terminal Block design enables easy wiring of input and output cables, facilitating seamless electrical continuity and simplifying maintenance or system upgrades. Their ability to handle multiple poles makes them suitable for complex wiring configurations often encountered in these scenarios.

The SCED Plug In Terminal Block also finds applications in renewable energy systems such as solar panel installations and wind turbines, where reliable electrical connections are critical. Its sturdy construction and compliance with international standards guarantee long-term durability even in harsh environmental conditions. The product is packaged securely in carton boxes to prevent damage during transportation, with a supply ability of up to 100,000 pieces per day ensuring timely delivery for large projects.

For customers, the minimum order quantity is 500 units, with flexible payment options including T/T, AliPay, and PayPal. Delivery time is approximately 50 days, making it suitable for both small-scale and large-scale procurement needs. By choosing the SCED Plug In Terminal Block, users benefit from a trusted brand that combines quality, safety, and efficiency in wire connecting solutions across various application occasions and scenarios.

Customization:

SCED offers comprehensive product customization services for our Plug In Terminal Block, ensuring it meets your specific requirements. Manufactured in China and certified with CE and ISO9001, our Barrier Terminal Blocks are designed for high reliability and safety. With a minimum order quantity of 500 units, you can get the latest price tailored to your order size.

Our Plug In Terminal Blocks feature a contactor made of phosphor bronze and come in a compact size of 19.2x9.5mm, with other sizes available upon request as per the drawing specifications. The connectors terminal supports various connection types including screw, spring clamp, or push-in, accommodating diverse installation needs.

Certified additionally with CE and RoHS, these Din Rail Terminal Blocks handle voltage ratings from 300V to 600V, making them suitable for a wide range of electrical applications. Packaging is done in sturdy carton boxes to ensure safe delivery.

We maintain a strong supply ability of 100,000 pieces per day, with a typical delivery time of 50 days. Payment terms are flexible, accepting T/T, AliPay, and PayPal to facilitate smooth transactions. Trust SCED for customized, high-quality terminal block solutions tailored to your industrial needs.

Support and Services:

Our Plug In Terminal Block product is designed to provide reliable and secure electrical connections for a wide range of applications. For technical support, troubleshooting assistance, and detailed product information, our dedicated team is available to help you maximize the performance and durability of your terminal blocks. We offer comprehensive services including installation guidance, maintenance tips, and replacement part identification to ensure seamless operation. Please refer to the product manual for detailed specifications and safety instructions. We are committed to delivering exceptional support to meet your technical needs and enhance your overall experience with our Plug In Terminal Block solutions.

Packing and Shipping:

Product Packaging: Each Plug In Terminal Block is carefully packaged in a protective blister pack or a sturdy cardboard box to prevent damage during transit. The packaging includes clear labeling with product specifications, quantity, and barcode for easy identification. Multiple units are securely packed in larger cartons with cushioning materials to ensure safe delivery.

Shipping: We offer reliable shipping options worldwide, using trusted carriers to ensure timely and safe delivery of the Plug In Terminal Block. Orders are processed promptly, and tracking information is provided for all shipments. We also provide customized shipping solutions for bulk orders to meet your specific requirements.

FAQ:

Q1: What is the brand name of the Plug In Terminal Block?

A1: The brand name of the Plug In Terminal Block is SCED.

Q2: Where is the Plug In Terminal Block manufactured?

A2: The Plug In Terminal Block is made in China.

Q3: What certifications does the Plug In Terminal Block have?

A3: The Plug In Terminal Block is certified with CE and ISO9001.

Q4: What is the minimum order quantity for the Plug In Terminal Block?

A4: The minimum order quantity is 500 pieces.

Q5: What are the payment terms available for purchasing the Plug In Terminal Block?

A5: Payment can be made via T/T, AliPay, or PayPal.

Q6: How long is the delivery time for the Plug In Terminal Block?

A6: The delivery time is approximately 50 days.

Q7: What is the packaging type for the Plug In Terminal Block?

A7: The product is packaged in a carton box.

Q8: What is the supply ability of the Plug In Terminal Block?

A8: The supply ability is 100,000 pieces per day.

Q9: How can I get the price for the Plug In Terminal Block?

A9: Please contact the supplier to get the latest price information.
