Experience Worker Make Production High Current Terminal Block Brass Metal Parts Durable Electrical Connection Solutions

Product Description:

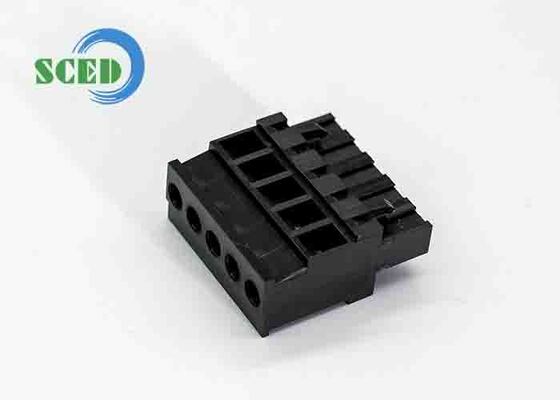

The Plug In Terminal Block is a highly reliable and versatile electrical connector designed to meet the demanding requirements of modern electrical installations. As an essential component in many industrial and commercial applications, this terminal block offers a robust solution for connecting wires securely and efficiently. Its design is optimized for ease of use, durability, and safety, making it an ideal choice for various electrical wiring projects.

This product is classified as an electrical connector, specifically engineered to facilitate the quick and secure connection of multiple electrical wires. Known commonly as a Din Rail Terminal Block, it is compatible with standard DIN rails, allowing for straightforward mounting and integration within electrical panels and distribution boards. The terminal block’s ability to clip onto DIN rails ensures a neat, organized, and modular setup, which is critical for maintenance and scalability in complex electrical systems.

One of the standout features of this Plug In Terminal Block is its housing material. Constructed from PA66, a high-performance polyamide, the housing is rated UL 94 V-0, indicating excellent flame retardancy and safety compliance. This material choice not only provides mechanical strength and durability but also ensures that the terminal block can withstand harsh environmental conditions without compromising safety or performance. The flame-retardant properties are particularly important in preventing fire hazards in electrical installations, adding an extra layer of protection for both equipment and personnel.

The physical size of the terminal block is compact yet functional, measuring 19.2 x 9.5 mm, with additional sizes available as specified in the product drawing. This size is ideal for maximizing space efficiency within electrical enclosures, allowing more connections to be made in a limited area without sacrificing accessibility or reliability. The compact design also contributes to easier handling and installation, reducing labor time and costs.

The Plug In Terminal Block features a vertical wire inlet, which simplifies the wiring process by enabling wires to be inserted from above. This vertical orientation is particularly beneficial in tight spaces or configurations where horizontal access is restricted. It ensures a secure and stable connection, minimizing the risk of loose wires or accidental disconnections, which can lead to electrical faults or downtime.

With a range of poles available from 2P up to 24P, this terminal block is highly adaptable to different wiring needs. Whether the application requires just a few connections or a large number of poles, this product can accommodate the demand efficiently. The wide selection of poles makes it suitable for diverse electrical systems, from small control panels to complex industrial automation setups.

Another key aspect of this product is its function as a Feed Through Terminal Block, also known as a Feedthrough Terminal Block. This means it allows current to pass through from one side of the terminal block to the other, providing a continuous electrical path. This feature is critical for many wiring configurations where multiple circuits need to be connected in series or parallel, ensuring reliable and uninterrupted electrical flow.

In summary, the Plug In Terminal Block combines the benefits of a durable PA66 UL 94 V-0 housing, a compact and space-saving design, vertical wire inlet convenience, and a versatile range of poles from 2P to 24P. Its compatibility with DIN rail mounting systems and its role as a Feed Through Terminal Block make it an indispensable component in electrical wiring installations. Whether used in industrial control panels, electrical distribution systems, or automation equipment, this terminal block offers a dependable, safe, and efficient wiring solution tailored to meet a wide range of application requirements.

Features:

• Product Name: Plug In Terminal Block
• Housing Material: PA66, UL 94, V-0 rated for high safety
• Voltage Rating: 300V - 600V suitable for various electrical applications
• Metal Parts: Made of Brass and other quality materials for durability

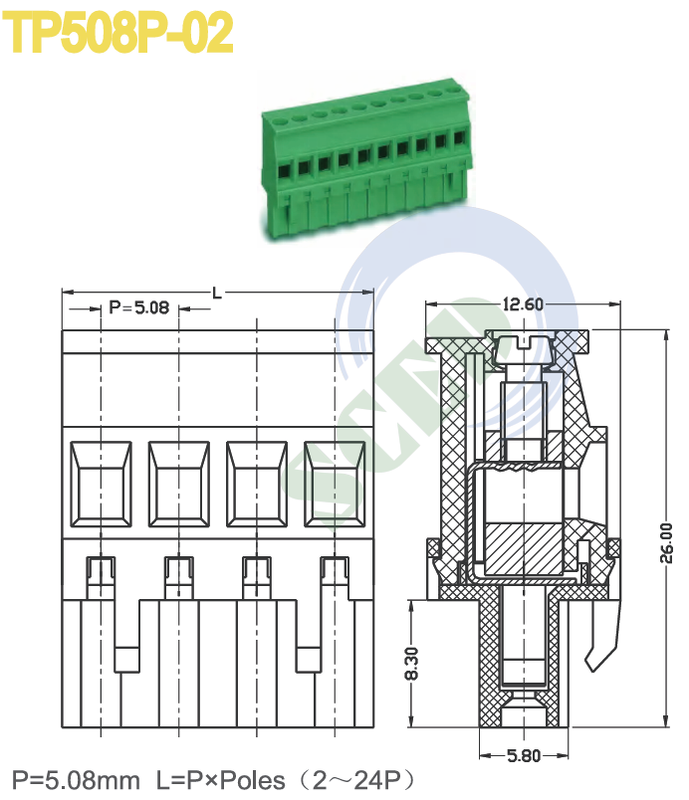

• Size: 19.2x9.5mm, other sizes available, see drawing for details
• Function: Wire Connecting for secure and reliable electrical connections
• Type: Insulated Terminal Connector providing excellent insulation and safety
• Compatible with Din Rail Terminal Block systems for easy installation and maintenance
• Ensures secure and efficient wire connections as an Insulated Terminal Connector

Technical Parameters:

Applications:

The SCED Plug In Terminal Block, manufactured in China, is a versatile and reliable electrical connector designed to meet various industrial and commercial needs. Certified by CE and ISO9001, this product guarantees high quality and safety standards, making it a trusted choice for professionals worldwide. With a minimum order quantity of 500 units, it is ideal for both small-scale projects and large production demands, supported by a supply ability of 100,000 pcs/day.

This terminal block is perfectly suited for applications requiring a Din Rail Terminal Block, offering easy installation and secure mounting on standard DIN rails. Its design supports high current conduction, making it an excellent High Current Terminal Block option for power distribution and control panels where efficient current handling is critical. The feedthrough design allows seamless electrical connection from one side to another, making it a reliable Feedthrough Terminal Block for continuous circuit flow without interruption.

The SCED Plug In Terminal Block features a pcb hole diameter of φ1.2mm, which ensures compatibility with various printed circuit boards. The contactor is made from phosphor bronze, known for its excellent conductivity and corrosion resistance, while the metal parts are crafted from durable brass and other high-quality materials to ensure longevity and robust performance. Users can choose from multiple connection types including screw, spring clamp, or push-in, allowing flexibility based on the specific wiring requirements.

With a vertical wire inlet, this terminal block design facilitates efficient wiring and space-saving configurations, especially beneficial in compact electrical panels and control cabinets. The product is packaged securely in carton boxes, ensuring safe delivery within 50 days of order confirmation. Payment terms are flexible, accepting T/T, AliPay, and PayPal, catering to global customers with ease.

Typical application occasions for the SCED Plug In Terminal Block include industrial automation systems, electrical distribution boards, machinery control panels, and building electrical installations. It is also widely used in renewable energy systems, transportation equipment, and communication devices, where reliable and safe electrical connections are paramount. Whether for new installations or maintenance and upgrades, this terminal block offers a high-performance solution that meets stringent industry standards.

Customization:

SCED offers professional product customization services for our High Current Terminal Block, designed to meet diverse electrical connection needs. Manufactured in China, our Electrical Terminal Block products are certified with CE and ISO9001, ensuring high quality and reliability. We require a minimum order quantity of 500 units, with pricing available upon request to provide you with the latest price information.

Our Electrical Terminal Block features a vertical wire inlet and a PCB hole diameter of φ1.2mm, making it suitable for various electrical applications. The contactor is made from high-quality phosphor bronze, providing excellent conductivity and durability. Each unit is produced by experienced workers who ensure precision and consistency in every product.

Packaging is done carefully in carton boxes to protect the products during transit. We have a strong supply ability of 100,000 pieces per day and a delivery time of 50 days to meet your large-scale demands. Payment terms are flexible, accepting T/T, AliPay, and PayPal to facilitate smooth transactions.

Choose SCED for your Electrical Terminal Block needs and benefit from our certified, reliable, and expertly crafted High Current Terminal Block solutions.

Support and Services:

Our Plug In Terminal Block product is designed to provide reliable and efficient electrical connections for a wide range of applications. To ensure optimal performance and longevity, it is important to follow proper installation and maintenance guidelines.

For installation, make sure to securely insert the wires into the terminal slots and tighten the screws to the recommended torque specifications. Avoid over-tightening to prevent damage to the terminal block or the wires.

Regular inspection of the terminal block is advised to check for any signs of wear, corrosion, or loosening of connections. Clean the contacts as needed using appropriate cleaning agents that do not damage the material.

If you encounter any issues or require assistance with the Plug In Terminal Block, our technical support team is available to provide guidance and troubleshooting help. We also offer a range of services including product customization, application support, and replacement parts to meet your specific needs.

For detailed product manuals, installation guides, and warranty information, please refer to the documentation provided with your product or visit our official website.

Packing and Shipping:

Each Plug In Terminal Block is carefully packaged to ensure protection during transit. The product is placed in a sturdy, custom-fitted box that prevents movement and minimizes the risk of damage. Inside the box, anti-static materials and cushioning are used to safeguard the terminal block from shocks and vibrations.

For shipping, we use reliable carriers that offer tracking and insurance options to guarantee safe and timely delivery. Multiple units are securely packed together on pallets or in larger cartons, with clear labeling for easy identification and handling. Our packaging and shipping process is designed to maintain product integrity and provide a satisfactory experience from our facility to your doorstep.

FAQ:

Q1: What is the brand name of the Plug In Terminal Block?

A1: The brand name of the Plug In Terminal Block is SCED.

Q2: Where is the Plug In Terminal Block manufactured?

A2: The Plug In Terminal Block is manufactured in China.

Q3: What certifications does the Plug In Terminal Block have?

A3: The Plug In Terminal Block is certified with CE and ISO9001.

Q4: What is the minimum order quantity for the Plug In Terminal Block?

A4: The minimum order quantity for the Plug In Terminal Block is 500 pieces.

Q5: What are the payment terms available for purchasing the Plug In Terminal Block?

A5: Payment can be made via T/T, AliPay, or PayPal.

Q6: How long does it take to deliver the Plug In Terminal Block?

A6: The delivery time for the Plug In Terminal Block is approximately 50 days.

Q7: What is the packaging method for the Plug In Terminal Block?

A7: The Plug In Terminal Block is packaged in carton boxes.

Q8: What is the supply capacity of the Plug In Terminal Block?

A8: The supply ability is 100,000 pieces per day.

Q9: How can I get the price for the Plug In Terminal Block?

A9: Please contact the supplier directly to get the latest price for the Plug In Terminal Block.
