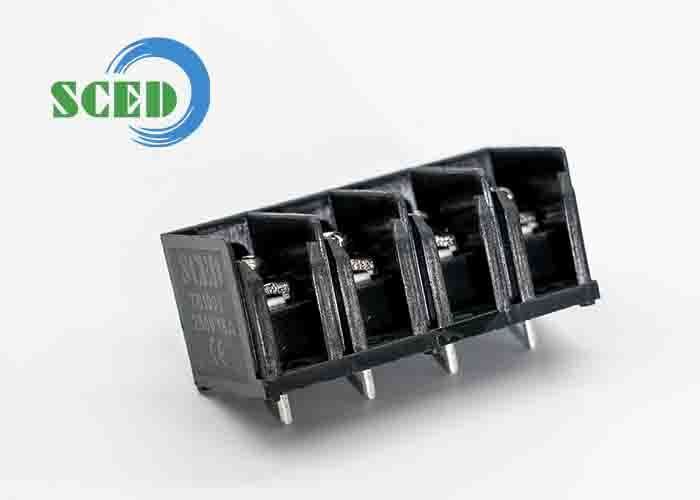

Rated Connecting 2.5mm2 Barrier Terminal Block Terminal Connecting Block Providing Stable and Easy to Connection Points

Product Description:

The Barrier Terminal Block is an essential component widely used in electrical and electronic applications to ensure secure and reliable connections. Designed to accommodate a rated connecting capacity of 2.5mm², this product is ideal for a variety of wiring tasks where safety and durability are paramount. Its robust construction and user-friendly design make it a preferred choice for professionals and hobbyists alike who require a dependable solution for connecting multiple wires.

One of the standout features of this Barrier Connecting Block is its screw mechanism, which utilizes M4 screws. These screws provide a strong and stable connection, ensuring that wires remain firmly attached even in environments subject to vibrations or mechanical stress. The M4 screws are engineered to be durable and resistant to corrosion, contributing to the long-lasting performance of the terminal block.

Torque is a critical factor when dealing with terminal blocks, as it directly influences the security of the wire connection. This Barrier Terminal Block is designed to be tightened within a torque range of 18-20 Lbf.in. This precise torque specification ensures that the screws are neither over-tightened, which could damage the components, nor under-tightened, which might result in loose connections. Maintaining the correct torque is essential for optimal electrical conductivity and safety.

Versatility is another key advantage of the Barrier Terminal Block. It is available in configurations ranging from 2 to 24 poles, allowing users to select the appropriate number of connection points for their specific needs. Whether a simple two-pole connection or a more complex multi-pole setup is required, this product can be tailored to suit various applications, including control panels, distribution boards, and industrial machinery.

The Barrier Terminal Board design incorporates insulated barriers between poles, which serve to prevent accidental contact and short circuits. These barriers provide an added layer of safety by isolating each connection point, reducing the risk of electrical faults and enhancing overall system reliability. This feature is particularly important in environments where multiple wires are routed close together, as it minimizes the chance of cross-connection and electrical hazards.

Manufactured with high-quality materials, the Barrier Connecting Block offers excellent resistance to heat, chemical exposure, and mechanical wear. This durability ensures consistent performance even under demanding conditions, making it suitable for use in industrial, commercial, and residential electrical systems. The materials used also comply with relevant industry standards, providing peace of mind regarding safety and compliance.

Installation of the Barrier Terminal Block is straightforward, thanks to its well-thought-out design. The clear labeling of poles and the accessible screw terminals simplify the wiring process, reducing installation time and minimizing the potential for errors. This ease of use is particularly beneficial for large-scale projects where efficiency and accuracy are crucial.

In summary, the Barrier Terminal Block is a reliable, versatile, and safe solution for electrical connections. Its rated connecting capacity of 2.5mm², M4 screw fastening system, and precise torque specification of 18-20 Lbf.in ensure secure and stable connections. With options ranging from 2 to 24 poles and an insulated barrier design, it caters to a wide range of applications while enhancing safety and performance. Whether referred to as a Barrier Connecting Block, Barrier Terminal Board, or simply Barrier Terminal Block, this product stands out as a trusted choice for professionals seeking quality and dependability in electrical connection components.

Features:

• Product Name: Barrier Terminal Block
• Flammability Rating: UL94 V-0 for enhanced safety
• Terminal Material: Durable PBT ensuring long-lasting performance
• Rated Current: Supports up to 30 Amps
• Rated Connecting Capacity: 2.5mm² for reliable connections
• Voltage Rating: 600V suitable for various electrical applications
• Functions as a Terminal Connecting Block for secure wiring
• Designed as a Barrier Connecting Block to prevent short circuits
• Serves as a Barrier Terminal Board for organized electrical setups

Technical Parameters:

Applications:

The SCED Barrier Terminal Block is an essential component widely used in various electrical and industrial applications. Designed with high-quality PA66 plastic and featuring a flammability rating of UL94 V-0, this product ensures superior safety and durability in demanding environments. Certified by CE and ISO9001, the Barrier Terminal Block guarantees compliance with international quality standards, making it a reliable choice for professional use. With a rated connecting capacity of 2.5mm² and a two-pole design, this Terminal Connecting Block is ideal for secure and efficient wiring connections in control panels, distribution boards, and electrical cabinets.

One of the primary application occasions for the SCED Barrier Connecting Block is in industrial automation systems. It facilitates stable and organized electrical connections between various control devices and sensors, ensuring seamless operation of automated machinery. Additionally, it is commonly used in power distribution systems for dividing and connecting electrical circuits safely. The robust construction and fire-retardant properties make it suitable for use in environments where fire safety is critical, such as manufacturing plants, chemical processing units, and building infrastructure.

In commercial and residential electrical installations, the Barrier Terminal Block serves as a dependable solution for connecting wiring systems. Electricians and engineers prefer this product for its ease of installation, efficient space utilization, and enhanced insulation properties. It is also frequently employed in renewable energy projects, such as solar panel arrays and wind turbines, where reliable electrical connections are vital for system performance and safety.

The packaging of the SCED Barrier Connecting Block in sturdy carton boxes ensures safe transportation and storage. With a supply ability of 100,000 pcs/day and a delivery time of 50 days, customers can rely on timely procurement for large-scale projects. The minimum order quantity of 500 units makes it accessible for both medium and large enterprises. Payment terms are convenient with T/T options, facilitating smooth business transactions.

Overall, the SCED Barrier Terminal Block is a versatile and trustworthy component suitable for a wide range of electrical applications. Whether used as a Terminal Connecting Block in control systems or as a Barrier Connecting Block in power distribution, it consistently delivers performance, safety, and reliability.

Customization:

SCED offers customized Barrier Terminal Block solutions designed to meet your specific requirements. Our Barrier Connecting Block products come with CE and ISO9001 certifications, ensuring high quality and reliability. We can provide Barrier Terminal Board options with a number of poles ranging from 2 to 24, accommodating 2P to 24P contacts and supporting a voltage rating of up to 600V. The insulation material used is durable PBT, guaranteeing safety and long-lasting performance.

We support a minimum order quantity of 500 units, with packaging details consisting of secure carton boxes to protect the products during transit. Our supply ability is robust, capable of producing up to 100,000 pieces per day, while the typical delivery time is around 50 days. Payment terms are flexible with T/T accepted.

Whether you require a simple 2-pole Barrier Terminal Block or a more complex Barrier Connecting Block with multiple poles, SCED is equipped to customize the product to your exact specifications, ensuring seamless integration into your electrical systems.

Support and Services:

Our Barrier Terminal Blocks are designed to provide secure and reliable electrical connections in various industrial and commercial applications. For technical support, we offer comprehensive assistance including product selection guidance, installation instructions, troubleshooting tips, and maintenance advice to ensure optimal performance and safety.

We provide detailed datasheets and wiring diagrams to help you understand the specifications and proper usage of the terminal blocks. Our technical support team is equipped to assist with customization requests and compatibility questions to meet your unique project requirements.

Additionally, we offer training services and on-site support to help your team effectively manage and utilize our Barrier Terminal Blocks. Regular updates on product improvements and industry standards are also available to keep your operations up-to-date.

Our commitment is to deliver high-quality support and services that enhance the reliability and efficiency of your electrical connections with our Barrier Terminal Block products.

Packing and Shipping:

Our Barrier Terminal Blocks are securely packaged to ensure maximum protection during transit. Each unit is carefully placed in a sturdy, corrosion-resistant box with adequate cushioning materials to prevent damage from shocks and vibrations.

For bulk orders, the terminal blocks are organized in labeled trays or reels, then packed into reinforced cartons to facilitate easy handling and inventory management.

We offer various shipping options including air freight, sea freight, and courier services to meet your delivery requirements. All shipments are tracked and insured to guarantee safe and timely arrival at your destination.

Custom packaging solutions are also available upon request to comply with specific industry standards or customer preferences.

FAQ:

Q1: What certifications does the SCED Barrier Terminal Block have?

A1: The SCED Barrier Terminal Block is certified with CE and ISO9001, ensuring quality and safety standards.

Q2: What is the minimum order quantity for the SCED Barrier Terminal Block?

A2: The minimum order quantity for the SCED Barrier Terminal Block is 500 pieces.

Q3: How is the SCED Barrier Terminal Block packaged for delivery?

A3: The SCED Barrier Terminal Block is packaged securely in carton boxes to ensure safe transportation.

Q4: What is the typical delivery time for an order of SCED Barrier Terminal Blocks?

A4: The delivery time for the SCED Barrier Terminal Block is approximately 50 days after order confirmation.

Q5: What payment terms are accepted for purchasing SCED Barrier Terminal Blocks?

A5: Payments for SCED Barrier Terminal Blocks are accepted via T/T (Telegraphic Transfer).
