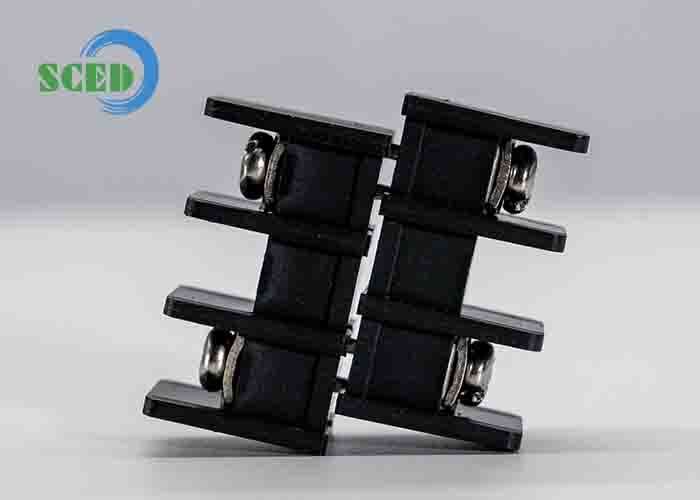

Torque 18-20 Lbf.in Barrier Terminal Block Incorporating M4 Screw and PBT Terminal Designed for Secure Electrical Wiring

Product Description:

The Barrier Terminal Block is a highly reliable and versatile electrical component designed to facilitate safe and efficient wiring connections in a wide range of industrial and commercial applications. Known for its robust construction and excellent performance, this terminal block is an essential part of any electrical installation that demands durability, safety, and ease of use. The product is often referred to as a Terminal Barrier Block or Barrier Terminal Board, highlighting its role in providing secure and organized terminal connections.

One of the key features of the Barrier Terminal Block is its terminal made from PBT (Polybutylene Terephthalate), a thermoplastic engineering polymer known for its excellent electrical insulation properties, mechanical strength, and resistance to heat and chemicals. This makes the terminal not only safe to use under high voltage conditions but also ensures long-lasting performance even in harsh industrial environments. The use of PBT in the terminal construction significantly contributes to the overall reliability and safety of the Barrier Terminal Block.

The Barrier Terminal Block is available with a number of contacts ranging from 2P to 24P, allowing for flexible configurations depending on the requirements of the electrical system. Whether you need just a couple of connections or a more complex array, this terminal block can accommodate various wiring setups. This range of contacts makes it an ideal solution for different applications, from simple control panels to more intricate electrical assemblies.

Constructed from high-quality PA66 (Polyamide 66) plastic, the Barrier Terminal Block housing offers excellent durability and resistance to impact, heat, and electrical stress. PA66 is widely recognized for its strength and stability under demanding conditions, ensuring that the Barrier Terminal Board maintains structural integrity and insulation over time. The use of PA66 plastic not only enhances the safety and reliability of the terminal block but also contributes to its ability to withstand continuous use in industrial environments.

Another significant attribute of the Barrier Terminal Block is its impressive voltage rating of 600V. This high voltage rating makes the product suitable for a wide variety of electrical applications, including industrial machinery, control panels, power distribution systems, and more. The 600V rating guarantees that the terminal block can handle substantial electrical loads without compromising safety or performance, which is crucial in preventing electrical faults and hazards.

The Barrier Terminal Block’s design includes barriers between each terminal contact, which physically separates and insulates each connection point. This feature minimizes the risk of short circuits and electrical interference, enhancing the overall safety and reliability of the electrical system. The barriers also make it easier to identify and organize wiring, simplifying installation and maintenance tasks. This practical design aspect is one of the reasons why the Barrier Terminal Block is preferred for complex electrical setups where clear separation of circuits is necessary.

In summary, the Barrier Terminal Block stands out as a premium-quality Terminal Barrier Block solution, combining robust materials, versatile contact options, and a high voltage rating to meet the demands of modern electrical systems. Its construction from PBT terminals and PA66 plastic housing ensures durability, safety, and excellent insulation properties, while the range of 2P to 24P contacts provides adaptability for various wiring configurations. The 600V voltage rating and barrier-separated design further elevate its suitability for industrial and commercial applications. Whether you are looking for a reliable Barrier Terminal Board for new installations or a replacement component for existing systems, this Barrier Terminal Block offers an optimal blend of performance, safety, and ease of use.

Features:

• Product Name: Barrier Terminal Block
• Number of Contacts: 2P-24P
• Poles: 2-24 P for versatile applications
• Terminal Material: Durable PBT ensuring long-lasting performance
• Insulation Material: High-quality PBT for excellent electrical insulation
• Flammability Rating: UL94 V-0 for enhanced safety and fire resistance
• Reliable Terminal Barrier Block design for secure connections
• Suitable as a Terminal Connecting Block in various electrical systems
• Robust Terminal Barrier Block construction for stable and safe wiring

Technical Parameters:

Applications:

The SCED Terminal Barrier Block is an essential component widely used in various electrical and industrial applications. Designed with high-quality PBT insulation material and rated to handle currents up to 30 Amps, this product ensures reliable and safe electrical connections. Its robust construction, featuring 2 poles and a conductor cross section of 2.5 mm², makes it ideal for environments requiring secure and efficient wiring solutions.

One of the primary application occasions for the SCED Barrier Terminal Block is in control panels and distribution boards. Here, the Barrier Terminal Board serves as a crucial interface for managing multiple electrical circuits, facilitating easy organization and maintenance. Its durable insulation and sturdy terminal design help prevent accidental short circuits and enhance overall system safety, making it a preferred choice for industrial automation and machinery control systems.

Moreover, the SCED Barrier Terminal Board finds extensive use in building electrical installations. Electricians rely on these terminal blocks to connect wiring in residential, commercial, and industrial buildings, ensuring stable and long-lasting electrical connections. The product's compliance with CE and ISO9001 certifications guarantees high standards of quality and reliability, which are vital in construction and infrastructure projects.

In addition to construction and industrial applications, the Terminal Barrier Block is also suitable for use in renewable energy systems such as solar panel installations. Its capability to handle a rated current of 30 Amps and accommodate a conductor cross section of 2.5 mm² makes it effective for connecting solar arrays and managing power distribution safely and efficiently.

SCED offers this Barrier Terminal Board with a minimum order quantity of 500 units, packaged securely in carton boxes to ensure safe delivery. With a supply ability of 100,000 pieces per day and a delivery time of 50 days, SCED can meet large-scale project demands efficiently. Payment terms are flexible with T/T options, making procurement straightforward for businesses.

In summary, the SCED Terminal Barrier Block is perfectly suited for a wide range of application scenarios including industrial control panels, building electrical wiring, and renewable energy systems. Its high-quality PBT insulation, strong current rating, and internationally recognized certifications make it a reliable and versatile choice for professionals seeking dependable barrier terminal solutions.

Customization:

SCED offers customized Terminal Barrier Block solutions that meet your specific requirements. Our Barrier Terminal Block products are certified with CE and ISO9001, ensuring high quality and reliability.

We support a minimum order quantity of 500 units, making it suitable for both small and large scale projects. Each Terminal Barrier Block is designed to handle a voltage rating of 600V and accommodates conductor cross sections of 2.5 mm².

Manufactured using premium PA66 plastic with PBT insulation material, our Barrier Terminal Block products boast a flammability rating of UL94 V-0, ensuring safety and durability in various applications.

Products are carefully packed in carton boxes to protect them during transportation. With a supply ability of 100,000 pieces per day and a delivery time of 50 days, SCED guarantees timely fulfillment of your orders.

Payment terms are flexible and processed via T/T, facilitating a smooth transaction experience. Trust SCED for customized Terminal Barrier Block solutions that combine quality, safety, and efficiency.

Support and Services:

Our Barrier Terminal Block product is designed to provide reliable and secure electrical connections in a wide range of industrial and commercial applications. For technical support, please refer to the product documentation which includes installation guides, wiring diagrams, and specifications to ensure proper usage and safety.

We offer comprehensive services including product selection assistance, troubleshooting, and replacement parts to help maintain optimal performance of your barrier terminal blocks. Our technical team is dedicated to providing expert advice on compatibility, load ratings, and environmental considerations to meet your specific application needs.

Additionally, we provide training resources and maintenance tips to extend the lifespan of your barrier terminal blocks and prevent common issues such as corrosion and loosening of connections. Whether you are installing new systems or upgrading existing ones, our support services aim to facilitate a smooth and efficient process.

For further information on product features, certifications, and compliance standards, please consult our detailed product catalog and technical datasheets available on our website.

Packing and Shipping:

Our Barrier Terminal Blocks are securely packaged to ensure maximum protection during transit. Each unit is carefully placed in a durable, anti-static plastic bag to prevent damage from moisture and dust. The blocks are then arranged in sturdy cardboard boxes with adequate cushioning materials to absorb shocks and vibrations.

For bulk orders, multiple boxes are consolidated into larger cartons, clearly labeled with product information and handling instructions. We use reliable shipping partners to guarantee timely and safe delivery to your specified location. Tracking details are provided to keep you informed throughout the shipping process.

Whether shipping domestically or internationally, our packaging meets all regulatory requirements to ensure the Barrier Terminal Blocks arrive in perfect condition, ready for immediate installation and use.

FAQ:

Q1: What certifications does the SCED Barrier Terminal Block have?

A1: The SCED Barrier Terminal Block is certified with CE and ISO9001, ensuring high quality and safety standards.

Q2: What is the minimum order quantity for the SCED Barrier Terminal Block?

A2: The minimum order quantity for the SCED Barrier Terminal Block is 500 pieces.

Q3: How is the SCED Barrier Terminal Block packaged for shipment?

A3: The SCED Barrier Terminal Block is packaged in carton boxes to ensure safe delivery.

Q4: What is the typical delivery time for an order of SCED Barrier Terminal Blocks?

A4: The typical delivery time is 50 days after the order is confirmed.

Q5: What payment terms are accepted for purchasing the SCED Barrier Terminal Block?

A5: Payment is accepted via T/T (Telegraphic Transfer).

Q6: What is the supply capacity of SCED for the Barrier Terminal Block?

A6: SCED has a supply ability of 100,000 pieces per day, ensuring a steady and reliable supply.
