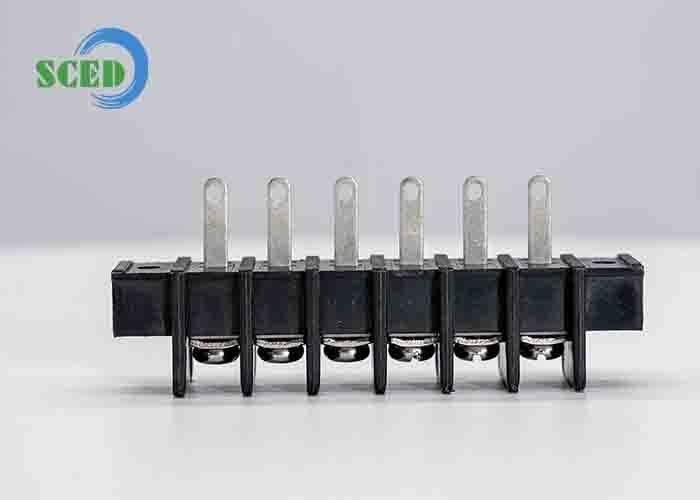

PBT Insulation Material Barrier Terminal Block 2 to 24 Poles Number of Contacts 2P to 24P Electrical Connection Terminal

Product Description:

The Barrier Terminal Block is a highly reliable and versatile electrical component designed to facilitate secure and efficient connections in a wide range of electrical and electronic applications. Engineered to meet rigorous industry standards, this product is an essential solution for ensuring safe and organized wiring in control panels, distribution boards, and various electrical assemblies.

One of the defining features of the Barrier Terminal Block is its robust construction, made from high-quality PA66 plastic. This material not only provides excellent mechanical strength but also offers superior resistance to heat, chemicals, and wear. The PA66 plastic used in the Barrier Terminal Board ensures durability and longevity, making it suitable for demanding environments where reliability is paramount.

The terminal block is designed with a voltage rating of 600V, making it suitable for a wide array of electrical systems, from industrial machinery to residential electrical setups. This high voltage rating ensures that the Terminal Connecting Block can safely handle substantial electrical loads without compromising performance or safety. It provides peace of mind to engineers and electricians by minimizing the risk of electrical faults or failures.

Safety is further enhanced by the product’s UL94 V-0 flammability rating. This rating certifies that the Barrier Terminal Block plastic housing is highly flame-retardant, extinguishing itself quickly in the event of a fire and preventing the spread of flames. This critical safety feature is essential for maintaining fire safety standards in electrical installations, particularly in commercial and industrial environments where fire hazards must be minimized.

The Barrier Terminal Block is available in a comprehensive range of configurations, accommodating between 2 and 24 poles. This flexibility allows users to select the exact number of contacts needed for their specific application, ensuring optimal wiring organization and space utilization. Whether connecting just a few wires or managing complex electrical circuits, the Terminal Connecting Block offers scalable solutions to meet diverse requirements.

With options ranging from 2P to 24P, the Barrier Terminal Board provides versatility for various electrical projects. The number of contacts corresponds directly to the number of poles, allowing for precise and neat wiring layouts. This modularity simplifies installation and maintenance, reducing downtime and improving overall efficiency in electrical systems management.

Designed with clear barriers between contacts, the Barrier Terminal Block ensures isolation and prevents accidental short circuits. This feature is particularly important in high-density wiring scenarios where wires are closely spaced. By maintaining electrical separation between connections, the Terminal Connecting Block enhances operational safety and reliability.

Moreover, the Barrier Terminal Block’s design facilitates easy and secure wire termination. It supports various wire sizes and types, and the screw-tightening mechanism ensures a firm connection that resists vibration and loosening over time. This reliable connection method is crucial for maintaining consistent electrical conductivity and preventing connection-related failures.

In summary, the Barrier Terminal Block is an indispensable component for anyone involved in electrical installation and maintenance. Its combination of high voltage capacity, excellent flame retardancy, durable PA66 construction, and a wide range of pole configurations makes it a top choice for both professional electricians and engineers. Whether you need a compact Terminal Connecting Block for a small project or a multi-pole Barrier Terminal Board for complex wiring systems, this product delivers unmatched performance, safety, and ease of use.

Investing in a high-quality Barrier Terminal Block ensures organized wiring, enhanced safety, and reliable operation across your electrical applications. Its proven design and robust features make it an essential part of modern electrical infrastructure, providing a dependable foundation for efficient and secure electrical connections.

Features:

• Product Name: Barrier Terminal Block
• Also known as Barrier Connecting Block and Terminal Barrier Block
• Insulation Material: PBT (Polybutylene Terephthalate)
• Conductor Cross Section: 2.5 mm²
• Available Poles: 2 to 24 poles
• Rated Current: 30 Amps
• Reliable electrical connection and insulation
• Suitable for various industrial and commercial applications
• Durable and heat-resistant construction

Technical Parameters:

Applications:

The SCED Barrier Terminal Block is an essential component widely used in various electrical and industrial applications. Designed with a voltage rating of 600V and a robust M4 screw mechanism, this Barrier Connecting Block ensures secure and reliable electrical connections in complex wiring systems. Its superior build quality meets the stringent standards of CE and ISO9001 certifications, guaranteeing safety and performance in demanding environments.

In industrial automation, the SCED Terminal Connecting Block is frequently employed to organize and manage wiring in control panels and machinery. Its UL94 V-0 inflammability rating and UL94-V0 class ensure excellent flame resistance, making it suitable for use in environments where fire safety is paramount. The torque specification of 18-20 Lbf.in allows for precise tightening, ensuring stable connections that prevent loosening due to vibrations or thermal cycling.

The Barrier Terminal Board is also ideal for use in power distribution systems, providing a neat and efficient way to connect multiple circuits. Its design facilitates easy installation and maintenance, which is invaluable in large-scale electrical setups or when quick troubleshooting is necessary. Packaged securely in carton boxes, SCED ensures that each unit arrives in perfect condition, ready for immediate use.

With a substantial supply ability of 100,000 pieces per day and a minimum order quantity of 500 units, SCED can support both small and large projects efficiently. Typical delivery time is 50 days, with payment terms on T/T, making procurement straightforward for businesses worldwide. Whether used in commercial buildings, manufacturing plants, or renewable energy systems, the SCED Barrier Terminal Block offers unmatched reliability and ease of use.

In summary, the SCED Barrier Connecting Block, Terminal Connecting Block, and Barrier Terminal Board are highly versatile products designed to meet the needs of modern electrical installation and maintenance. Their certified quality, flame retardant properties, and user-friendly features make them indispensable for professionals seeking safe, durable, and efficient terminal connection solutions.

Customization:

SCED offers customized Barrier Terminal Block solutions designed to meet your specific requirements. Our Barrier Terminal Board products are certified with CE and ISO9001, ensuring high quality and reliability. We specialize in Barrier Connecting Block units with a rated connecting capacity of 2.5mm² and a rated current of 30 Amps, made from durable PA66 plastic and PBT insulation material for enhanced safety and performance.

With a minimum order quantity of 500 pieces, we provide flexible packaging options using sturdy carton boxes to protect the products during shipment. Our supply ability reaches up to 100,000 pcs per day, guaranteeing timely delivery within 50 days. Payment terms are convenient and secure, based on T/T transactions.

Choose SCED for your Barrier Terminal Block customization needs and benefit from our expertise in producing reliable, high-quality Barrier Terminal Boards and Barrier Connecting Blocks tailored to your application.

Support and Services:

Our Barrier Terminal Block product is designed to provide reliable and secure electrical connections in various industrial and commercial applications. For technical support, our knowledgeable team is available to assist with product selection, installation guidance, troubleshooting, and maintenance tips to ensure optimal performance.

We offer comprehensive services including custom configuration, testing, and quality assurance to meet your specific requirements. Detailed product documentation, wiring diagrams, and compatibility information are provided to facilitate easy integration into your systems.

In addition, training sessions and technical workshops are available to help your staff become proficient in using and maintaining Barrier Terminal Blocks effectively. We are committed to delivering exceptional support and services to enhance your operational efficiency and safety.

Packing and Shipping:

Product Packaging: The Barrier Terminal Block is securely packaged in durable, anti-static materials to prevent damage during transit. Each unit is individually wrapped and placed in a custom-fitted box to ensure stability and protection. Multiple units are then packed into a sturdy carton with cushioning materials to minimize movement and absorb shocks.

Shipping Information: We offer reliable shipping options worldwide with tracking available for all orders. The Barrier Terminal Block is shipped via trusted carriers to ensure timely and safe delivery. Orders are processed within 1-2 business days, and shipping times vary depending on the destination. Proper documentation and labeling are included for smooth customs clearance.

FAQ:

Q1: What brand manufactures the Barrier Terminal Block?

A1: The Barrier Terminal Block is manufactured by the brand SCED.

Q2: Does the Barrier Terminal Block have any certifications?

A2: Yes, the Barrier Terminal Block is certified with CE and ISO9001.

Q3: What is the minimum order quantity for the Barrier Terminal Block?

A3: The minimum order quantity for the Barrier Terminal Block is 500 pieces.

Q4: How is the Barrier Terminal Block packaged for delivery?

A4: The Barrier Terminal Block is packaged in a carton box for safe delivery.

Q5: What are the payment terms and delivery time for the Barrier Terminal Block?

A5: Payment is accepted via T/T, and the delivery time is approximately 50 days.

Q6: What is the supply ability of the Barrier Terminal Block?

A6: The supply ability is 100,000 pieces per day, ensuring large volume availability.
