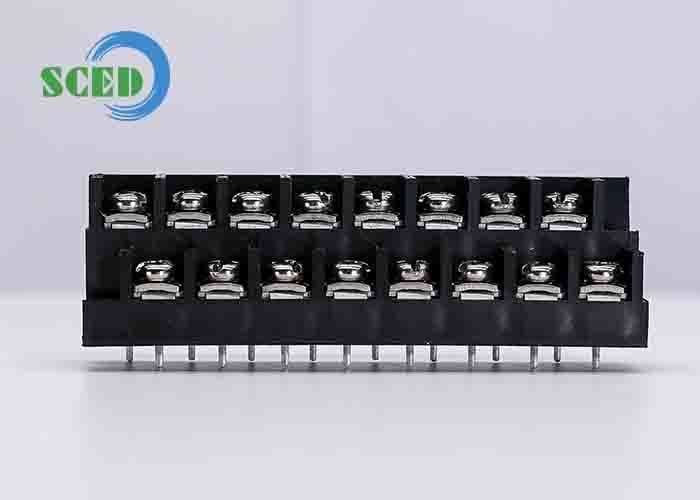

PBT Insulation Material Terminal Barrier Block UL94 V0 Flammability Rating Designed for Secure and Electrical Connections

Product Description:

The Barrier Terminal Block, also known as a Barrier Connecting Block, is an essential component widely used in electrical and electronic applications to provide a secure and reliable connection point for multiple wires. Designed to accommodate from 2 up to 24 poles, this versatile product ensures flexibility and adaptability for a wide range of wiring configurations, making it an ideal choice for both industrial and commercial electrical installations.

One of the standout features of this Barrier Terminal Block is its robust construction, ensuring long-lasting durability and consistent performance under demanding conditions. The insulation material used in the Barrier Terminal Block is high-quality PBT (Polybutylene Terephthalate), which offers excellent electrical insulation properties, mechanical strength, and resistance to heat and chemicals. This ensures that the terminal block maintains safety and operational integrity even in environments subject to high temperatures or exposure to harsh substances.

The Barrier Terminal Block is engineered to handle a rated current of up to 30 Amps, making it suitable for a broad spectrum of electrical applications. Whether used in control panels, distribution boards, or machinery wiring, this product can efficiently carry substantial current loads without compromising safety or functionality. The current rating ensures that the Barrier Connecting Block can meet the demands of various electrical circuits without overheating or failure.

Another critical attribute of this Barrier Terminal Block is its screw mechanism. Equipped with M4 screws, the terminal block provides a secure and stable connection for wires. The M4 screw size strikes a perfect balance between ease of handling and strong clamping force, ensuring that wires remain firmly attached without the risk of loosening due to vibrations or external forces. This feature enhances the reliability of the electrical connections and reduces maintenance requirements over time.

In terms of installation and maintenance, the Barrier Terminal Block is designed with user convenience in mind. The torque specification for the screws is set between 18 to 20 Lbf.in, which ensures optimal tightening without damaging the terminal block or the wires. This precise torque range allows electricians and technicians to achieve consistent connections that comply with industry standards and safety regulations. Additionally, the clear barrier sections between poles prevent accidental short circuits by isolating adjacent connections, thereby enhancing the overall safety of the electrical system.

The Barrier Connecting Block is well-suited for a variety of applications, including industrial automation, control systems, power distribution, and building wiring. Its modular design allows for easy expansion or modification of electrical circuits, making it a flexible solution for evolving electrical needs. Furthermore, the Barrier Terminal Block’s compact form factor allows for efficient use of panel space, which is crucial in complex assemblies where space optimization is a priority.

Manufactured with precision and adherence to stringent quality standards, this Barrier Terminal Block guarantees reliable performance and longevity. Its combination of high current capacity, durable insulation, secure screw connections, and flexible pole options makes it a preferred choice among engineers, electricians, and system integrators seeking dependable and efficient terminal blocks.

In summary, the Barrier Terminal Block (also referred to as a Barrier Connecting Block) is a high-performance electrical component designed to provide safe, reliable, and efficient wire connections. With poles ranging from 2 to 24, a rated current of 30 Amps, durable PBT insulation, M4 screws, and a recommended torque of 18-20 Lbf.in, this product delivers excellent electrical and mechanical properties. Its robust design, ease of installation, and safety features make it an indispensable part of modern electrical systems, ensuring optimal connectivity and operational reliability across diverse applications.

Features:

• Product Name: Barrier Terminal Block
• Also known as Terminal Barrier Block and Terminal Connecting Block
• Inflammability Class: UL94-V0 (Flammability rating UL94 V-0)
• Material: High-quality PA66 plastic
• Number of Contacts: Available from 2P to 24P
• Ensures safe and reliable electrical connections
• Durable and resistant to high temperatures
• Ideal for industrial and commercial electrical applications

Technical Parameters:

Applications:

The SCED Barrier Terminal Block is an essential component widely used in various electrical and industrial applications where secure and reliable electrical connections are paramount. Featuring certification from CE and ISO9001, this Terminal Connecting Block guarantees high quality and safety standards, making it ideal for both commercial and industrial environments. With a supply ability of 100,000 pieces per day and a minimum order quantity of 500 units, SCED ensures timely delivery and consistent availability to meet large-scale project demands.

This Barrier Connecting Block is designed with a screw size of M4 and supports a rated connecting conductor cross section of 2.5 mm², accommodating current carrying needs efficiently. The number of contacts ranges from 2P to 24P, providing versatile options for diverse wiring configurations. The terminal barrier block’s UL94 V-0 flammability rating ensures excellent fire resistance, enhancing safety in critical electrical installations.

Ideal application occasions for the SCED Barrier Terminal Block include industrial control panels, electrical distribution systems, automation equipment, and machinery wiring. Its robust design and reliable terminal connecting features make it perfect for use in power plants, manufacturing facilities, and building electrical infrastructure. The barrier connecting block is particularly suitable for scenarios requiring clear separation between adjacent terminals to prevent accidental short circuits and improve overall system safety.

In addition to industrial uses, the terminal barrier block also finds application in renewable energy systems, such as solar panel arrays and wind turbine connections, where durability and secure terminal connections are crucial. The packaging in sturdy carton boxes ensures protection during transport, complementing the 50-day delivery timeframe and payment terms via T/T, which facilitate smooth procurement processes.

Overall, the SCED Terminal Connecting Block is a reliable and versatile solution for connecting electrical conductors safely and efficiently across a wide range of applications. Its combination of high-quality materials, certified safety standards, and flexible contact options makes it an indispensable component for engineers and electricians working in demanding electrical connection scenarios.

Customization:

SCED offers customized Barrier Terminal Block products designed to meet your specific requirements. Our Barrier Terminal Board comes with a number of contacts ranging from 2P to 24P, accommodating poles from 2 to 24 P, and supports a rated current of 30 Amps. Made from high-quality PA66 plastic, our Terminal Connecting Block ensures durability and reliable electrical insulation.

With a conductor cross section of 2.5 mm², the Terminal Barrier Block is certified with CE and ISO9001, guaranteeing compliance with international quality standards. We maintain a supply ability of 100,000 pcs per day, with a minimum order quantity of 500 units to cater to both small and large scale projects.

Our packaging details include secure carton boxes to protect the products during shipment. Delivery time typically takes 50 days, and payment terms are set as T/T for your convenience. Trust SCED for premium quality and customizable Barrier Terminal Blocks tailored to your needs.

Support and Services:

Our Barrier Terminal Blocks are designed to provide reliable and secure electrical connections in various industrial and commercial applications. To ensure optimal performance and longevity of the product, please follow the installation guidelines and maintenance procedures outlined in the product manual.

For installation, make sure to use the appropriate tools to tighten the screws without over-tightening, which could damage the terminal block or the connected wires. Always verify that the wire size is compatible with the terminal block specifications to ensure a proper fit and electrical contact.

Regular inspection and maintenance are recommended to prevent corrosion and ensure stable electrical connections. Clean the terminal blocks periodically and check for any signs of wear or damage. Replace any components that show signs of deterioration to maintain safety and functionality.

If you experience any issues with the Barrier Terminal Blocks or require technical assistance, our support team is available to provide guidance on troubleshooting, product selection, and application advice. We also offer customization services to meet specific project requirements.

For detailed product information, installation instructions, and safety precautions, please refer to the product datasheet and user manual available on our website.

Packing and Shipping:

Our Barrier Terminal Block product is securely packaged to ensure maximum protection during transit. Each unit is carefully wrapped with anti-static materials and placed in a sturdy, custom-designed box to prevent any damage. The packaging is labeled clearly with product specifications and handling instructions to facilitate easy identification and safe handling.

For shipping, we use reliable carriers and provide tracking information to all customers. The Barrier Terminal Blocks are shipped in bulk or in smaller quantities based on order requirements, with additional cushioning to absorb shocks and vibrations. We prioritize timely delivery and ensure that all shipments comply with international shipping standards to reach you safely and promptly.

FAQ:

Q1: What certifications does the SCED Barrier Terminal Block have?

A1: The SCED Barrier Terminal Block is certified with CE and ISO9001, ensuring high quality and safety standards.

Q2: What is the minimum order quantity for the SCED Barrier Terminal Block?

A2: The minimum order quantity for the SCED Barrier Terminal Block is 500 pieces.

Q3: How is the SCED Barrier Terminal Block packaged for shipment?

A3: The SCED Barrier Terminal Block is packaged in carton boxes to ensure safe delivery.

Q4: What is the typical delivery time for orders of the SCED Barrier Terminal Block?

A4: The delivery time for the SCED Barrier Terminal Block is approximately 50 days.

Q5: What payment terms are accepted for purchasing the SCED Barrier Terminal Block?

A5: The accepted payment term for the SCED Barrier Terminal Block is T/T (Telegraphic Transfer).

Q6: What is the daily supply ability of the SCED Barrier Terminal Block?

A6: SCED can supply up to 100,000 pieces of Barrier Terminal Blocks per day.
