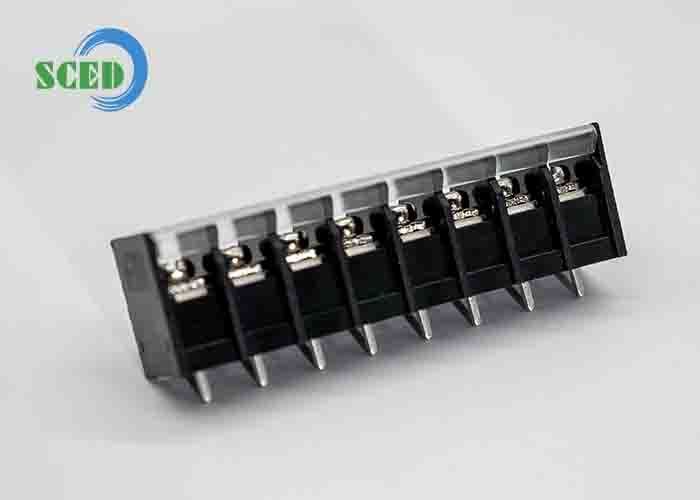

Rated Connecting 25mm2 Barrier Terminal Block UL94V0 Inflammability Class Terminal Connector Ideal for Electrical Panels

Product Description:

The Barrier Terminal Block is a highly reliable and versatile component designed for efficient electrical connections in various industrial and commercial applications. Engineered to meet rigorous standards, this Terminal Connecting Block offers a robust solution for organizing and securing electrical wiring while ensuring safety and durability. With a conductor cross section of 2.5 mm², it is perfectly suited for medium-duty wiring tasks, providing an optimal balance between compact size and current-carrying capacity.

One of the standout features of this Barrier Terminal Block is its voltage rating of 600V, making it suitable for a wide range of low to medium voltage electrical circuits. This high voltage rating ensures that the Terminal Connecting Block can handle demanding electrical environments without compromising performance or safety. Whether used in control panels, distribution boards, or machinery, this component guarantees reliable electrical connections that maintain integrity under varying loads.

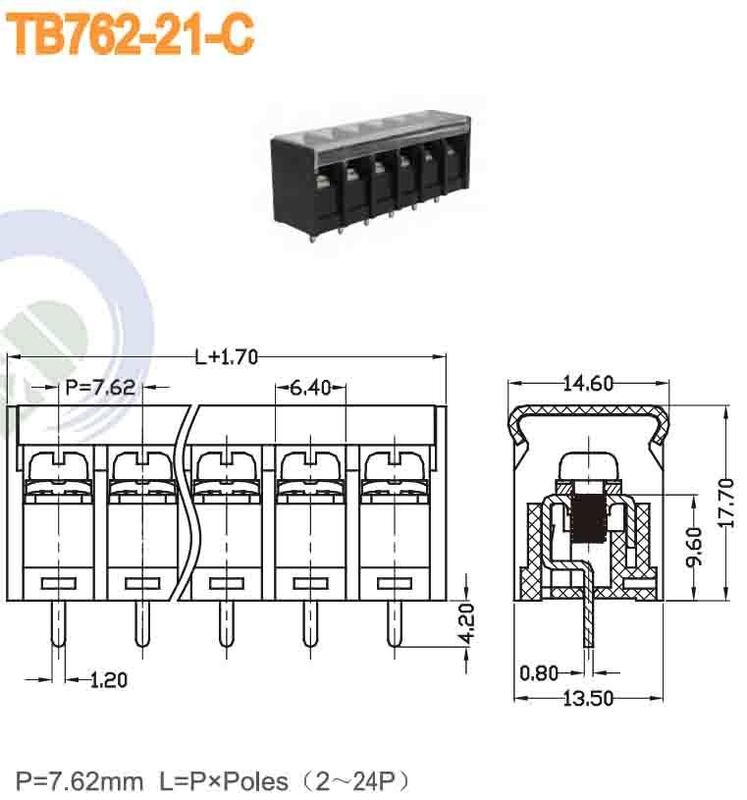

The design of the Barrier Terminal Block incorporates two poles, providing a simple yet effective configuration for connecting multiple wires. The number of contacts ranges from 2P to 24P, allowing for flexibility in application depending on the complexity and scale of the wiring system. This range makes the Barrier Terminal Board adaptable to both small-scale projects and larger installations, offering modularity and ease of expansion when necessary.

Rated connecting capacity is another critical attribute of this Terminal Connecting Block. With a rated connecting capacity of 2.5 mm², it supports a wide variety of wire sizes commonly used in industrial settings. This ensures compatibility with many types of conductors, facilitating seamless integration into existing electrical systems. The rated connecting capacity also guarantees secure and stable connections, minimizing the risk of loose wires or electrical faults.

The Barrier Terminal Block is designed with safety and convenience in mind. The barriers between terminals prevent accidental contact and short circuits, enhancing the overall safety of the electrical installation. This feature is particularly important in environments where multiple connections are made in close proximity, as it reduces the risk of electrical hazards. Additionally, the clear separation of terminals simplifies troubleshooting and maintenance, saving time and effort for electricians and technicians.

Installation of this Terminal Connecting Block is straightforward due to its user-friendly design. It can be easily mounted on DIN rails or panels, adapting to various mounting requirements. The compact size and efficient layout contribute to space-saving installations, which is crucial in modern electrical cabinets where space is often limited. The robust construction of the Barrier Terminal Board ensures long-lasting performance even in harsh conditions, including exposure to vibration, temperature fluctuations, and mechanical stress.

In summary, the Barrier Terminal Block is an essential component for any electrical wiring project that demands reliability, safety, and efficiency. Its conductor cross section of 2.5 mm², voltage rating of 600V, and flexible number of poles and contacts make it a versatile choice for a wide range of applications. Whether you need a simple two-pole connection or a more complex setup with up to 24 poles, this Terminal Connecting Block provides the necessary features to meet your needs. Its robust design, safety barriers, and ease of installation ensure that your electrical systems remain organized, secure, and functioning optimally.

Choosing this Barrier Terminal Board means investing in quality and performance. It is an ideal solution for electrical engineers, technicians, and DIY enthusiasts who seek dependable terminal connecting blocks that do not compromise on safety or functionality. With this product, you can achieve clean, efficient, and safe wiring connections that stand the test of time.

Features:

• Product Name: Barrier Terminal Block
• Also known as Terminal Barrier Block and Barrier Terminal Board
• Flammability Rating: UL94 V-0
• Inflammability Class: UL94-V0
• Material: High-quality PA66 plastic
• Rated Current: 30 Amps
• Voltage Rating: 600V

Technical Parameters:

Applications:

The SCED Barrier Terminal Block is an essential component widely used in various electrical and industrial applications for secure and reliable wire connections. Known for its robust construction and excellent performance, this product is designed to meet the highest standards of safety and efficiency, certified by CE and ISO9001. With a voltage rating of 600V and a rated current of 30 Amps, the Barrier Terminal Block supports a wide range of electrical loads, making it ideal for both commercial and industrial environments.

One of the primary application occasions for the SCED Barrier Terminal Block is in electrical control panels and distribution boards, where it serves as a Terminal Connecting Block to facilitate organized and safe wiring. Its design, featuring 2P to 24P contact options, allows for versatile configurations to suit various circuit requirements. The barrier design ensures excellent insulation between contacts, minimizing the risk of accidental short circuits and enhancing overall safety.

In industrial automation and machinery, the Barrier Terminal Board plays a critical role in connecting sensors, actuators, and other control devices. The torque rating of 18-20 Lbf.in ensures secure fastening of wires, preventing loosening due to vibrations or mechanical stress. This makes the Barrier Connecting Block an indispensable component in manufacturing plants, HVAC systems, and conveyor systems, where reliable electrical connections are crucial for uninterrupted operation.

The SCED Barrier Terminal Block is also widely used in renewable energy systems, such as solar power installations, where high current and voltage handling capabilities are required. Thanks to its sturdy construction and compliance with international quality standards, it guarantees long-term durability and performance under harsh environmental conditions.

For procurement, SCED offers a minimum order quantity of 500 pieces, packaged conveniently in carton boxes to ensure safe transportation and handling. With a supply ability of 100,000 pieces per day and a delivery time of approximately 50 days, SCED can efficiently meet large-scale project demands. Payment terms are flexible with T/T options, making it convenient for global customers.

In summary, the SCED Barrier Terminal Block is an ideal solution for any electrical installation requiring a reliable, safe, and easy-to-install Terminal Connecting Block, Barrier Terminal Board, or Barrier Connecting Block. Its combination of high performance, certification, and supply capability makes it a trusted choice for professionals across various industries.

Customization:

SCED offers comprehensive product customization services for our Barrier Terminal Block, designed to meet the specific needs of your applications. Our Terminal Barrier Block, also known as Barrier Connecting Block or Barrier Terminal Board, is crafted to ensure high performance and reliability.

With a rated current of 30 Amps and a rated connecting capacity of 2.5mm², our Barrier Terminal Block provides robust electrical connections. The product features an M4 screw for secure fastening, and it is available with 2 poles to suit various wiring requirements.

Safety and quality are guaranteed with certifications including CE and ISO9001, and the product meets the flammability rating of UL94 V-0, ensuring superior fire resistance and durability.

We support large-scale orders with a minimum order quantity of 500 pieces and a supply ability of 100,000 pcs per day. Each unit is carefully packed in a carton box to ensure safe delivery.

Delivery time is approximately 50 day(s) from order confirmation, and payment terms are T/T for your convenience. Trust SCED for your Barrier Terminal Board customization needs, combining quality, efficiency, and reliability in every order.

Support and Services:

Our Barrier Terminal Block product is designed to provide secure and reliable electrical connections in various industrial and commercial applications. For technical support, we offer comprehensive assistance including installation guidance, troubleshooting tips, and maintenance advice to ensure optimal performance and safety.

We provide detailed product documentation, including datasheets, wiring diagrams, and specification sheets to help you understand and utilize the Barrier Terminal Block effectively. Our technical support team is equipped to answer any questions related to product compatibility, customization options, and best practices for integration into your electrical systems.

Additionally, we offer repair and replacement services for Barrier Terminal Blocks that are damaged or malfunctioning within the warranty period. Our service options include on-site support and remote diagnostics to minimize downtime and maintain continuous operation of your electrical installations.

For training and consultation, we provide expert sessions tailored to your specific application needs, ensuring your staff is knowledgeable about the safe and efficient use of Barrier Terminal Blocks. Whether you are upgrading existing systems or designing new installations, our technical support and services are dedicated to helping you achieve reliable and long-lasting electrical connections.

Packing and Shipping:

Product Packaging:

The Barrier Terminal Block is securely packaged to ensure protection during transportation and handling. Each unit is individually wrapped in anti-static material to prevent electrostatic discharge damage. The wrapped units are then placed in sturdy cardboard boxes with adequate cushioning to minimize movement and impact. Packaging is clearly labeled with product details, handling instructions, and barcodes for easy identification and inventory management.

Shipping Information:

Products are shipped using reliable carriers with options for standard or expedited delivery. All shipments include tracking information for real-time status updates. The Barrier Terminal Blocks are carefully palletized and shrink-wrapped when shipping in bulk to maintain stability and prevent damage. We comply with all applicable shipping regulations to ensure safe and timely delivery to our customers worldwide.

FAQ:

Q1: What certifications does the SCED Barrier Terminal Block have?

A1: The SCED Barrier Terminal Block is certified with CE and ISO9001, ensuring high quality and safety standards.

Q2: What is the minimum order quantity for the SCED Barrier Terminal Block?

A2: The minimum order quantity for the SCED Barrier Terminal Block is 500 pieces.

Q3: How is the SCED Barrier Terminal Block packaged for delivery?

A3: The SCED Barrier Terminal Block is packaged in carton boxes to ensure safe and secure shipment.

Q4: What is the typical delivery time for orders of the SCED Barrier Terminal Block?

A4: The delivery time for the SCED Barrier Terminal Block is typically 50 days after order confirmation.

Q5: What payment terms are accepted for purchasing the SCED Barrier Terminal Block?

A5: Payment for the SCED Barrier Terminal Block is accepted via T/T (Telegraphic Transfer).

Q6: What is the supply ability of the SCED Barrier Terminal Block?

A6: SCED can supply up to 100,000 pieces of Barrier Terminal Blocks per day to meet large volume demands.
