12-24 AWG Pluggable Terminal Block with Insulation Resistance Above DC500V and PA66 Plastic Material for Secure Wire Connections
-
Insulation ResistanceAbove DC500V, 500MΩ
-
Withstanding Voltage3000V AC/minute
-
Key WordsPluggable Male Terminal
-
Numberofpositions2 To 24
-
Wiresizerange12-24 AWG
-
Inflammability ClassUL94-V0
-
PlasticPA66
-
Rated Surge VoltageNo Abnormal Within 1 Minute
-
Brand NameSCED
-
CertificationUL, CE, ISO9001
-

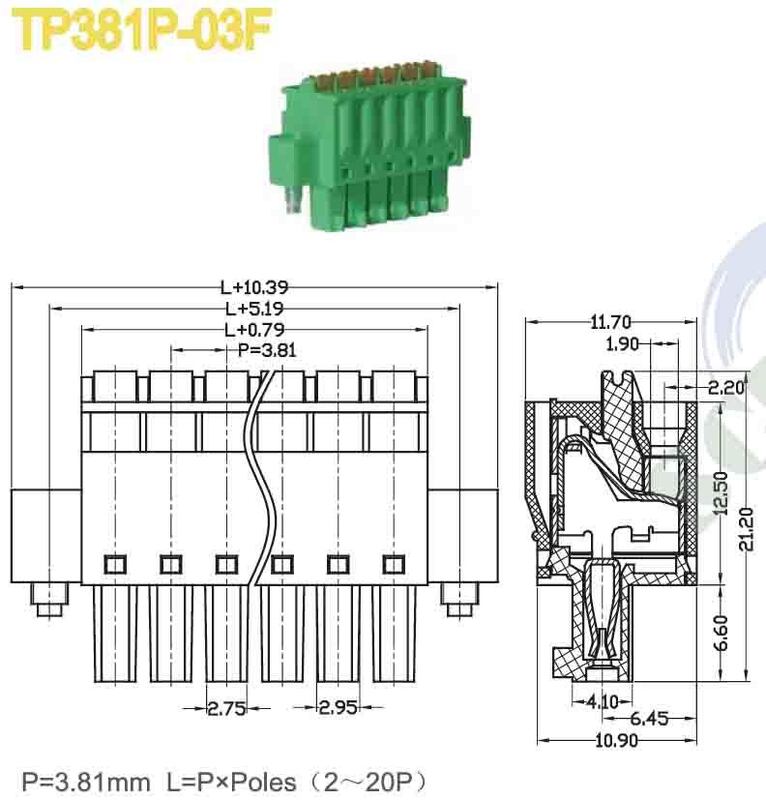

Model Numbertp381p-03f
-
Minimum Order Quantity500
-
PriceGet Latest Price
-
Packaging DetailsCarton Box
-
Delivery Time50 Day(s)
-
Payment TermsT/T,AliPay,PayPal
-
Supply Ability100000pcs/day
12-24 AWG Pluggable Terminal Block with Insulation Resistance Above DC500V and PA66 Plastic Material for Secure Wire Connections
Wiresize range 12-24 AWG Pluggable Terminal Block
Featuring Insulation Resistance Above DC500V and PA66 Plastic Material for Wire Connections
Product Overview

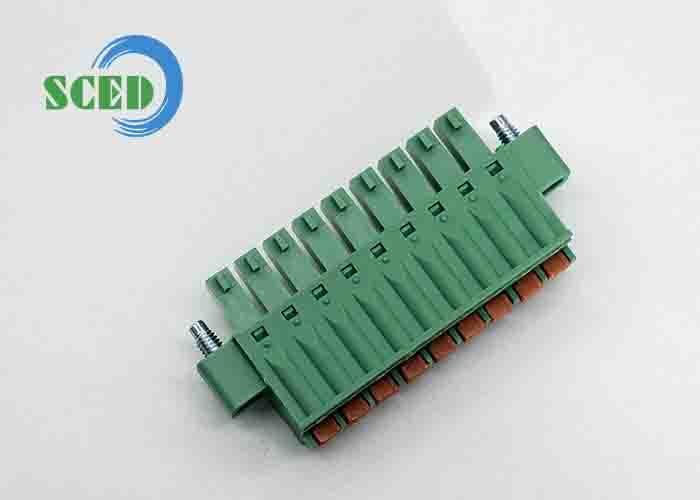

The Pluggable Terminal Block is an essential component designed to provide reliable and secure electrical connections in a wide range of applications. This pluggable solution ensures ease of installation and maintenance, making it ideal for both industrial and commercial electrical systems.
Featuring a pluggable male terminal design, it allows for quick and efficient wiring, reducing downtime and improving overall system performance. The right angle wire inlet facilitates easier wiring in confined spaces and complex panel layouts.
Key Features
- Product Name: Pluggable Terminal Block connector
- Terminal Material: High-quality Phosphor Bronze for excellent conductivity
- Wire Size Range: Supports 12-24 AWG wires for versatile applications
- Certifications: CE and RoHS certified ensuring safety and environmental compliance
- Inflammability Class: UL94-V0 rated for superior flame retardance
- Screw Size: M2 screws for secure and reliable connections
- Designed as a pluggable connector for easy installation and maintenance
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -40°C To +105°C |
| Terminal | Phosphor Bronze |
| Number of Positions | 2 To 24 |
| Rated Surge Voltage | No Abnormal Within 1 Minute |
| Clamp Cage | Brass |
| Plastic | PA66 |
| Withstanding Voltage | 3000V AC/minute |
| Wire Inlet | Right Angle Wire Inlet |
| Insulation Resistance | Above DC500V, 500MΩ |
Applications
The SCED Pluggable Terminal Block is designed for secure and efficient PCB connections in various electronic applications. With configurations from 2 to 24 positions, it offers flexibility for diverse circuit designs.
Ideal for industrial control systems, automation equipment, communication devices, power supply units, control panels, and electronic instrumentation where quick and safe disconnection is necessary.
Customization
SCED offers customized Pluggable Terminal Block solutions designed to meet specific requirements. Manufactured with premium materials including PA66 plastic and brass clamp cages, ensuring excellent durability and performance.
Minimum order quantity: 500 pieces. Supply capacity: 100,000 pcs per day. Delivery time: approximately 50 days. Contact for pricing and custom requirements.
Frequently Asked Questions
What certifications does the SCED Pluggable Terminal Block have?
The SCED Pluggable Terminal Block is certified with UL, CE, and ISO9001, ensuring high quality and safety standards.
Where is the SCED Pluggable Terminal Block manufactured?
It is manufactured in Suzhou, China.
What is the minimum order quantity for the SCED Pluggable Terminal Block?
The minimum order quantity is 500 pieces.
What are the payment terms available for purchasing the SCED Pluggable Terminal Block?
We accept payment via T/T, AliPay, and PayPal.
How long does it take to deliver the SCED Pluggable Terminal Block?
The delivery time is approximately 50 days.
