12-24 AWG Pluggable Terminal Block with Rated Surge Voltage and High Insulation Resistance for PCB Connectivity
-
CertificationsCE, RoHS
-
Rated Surge VoltageNo Abnormal Within 1 Minute
-
ScrewM2
-
Insulation ResistanceAbove DC500V, 500MΩ
-
Clamp CageBrass
-
Wire InletRight Angle Wire Inlet
-
Key WordsPluggable Male Terminal
-
Wiresizerange12-24 AWG
-
Brand NameSCED
-
CertificationUL, CE, ISO9001
-

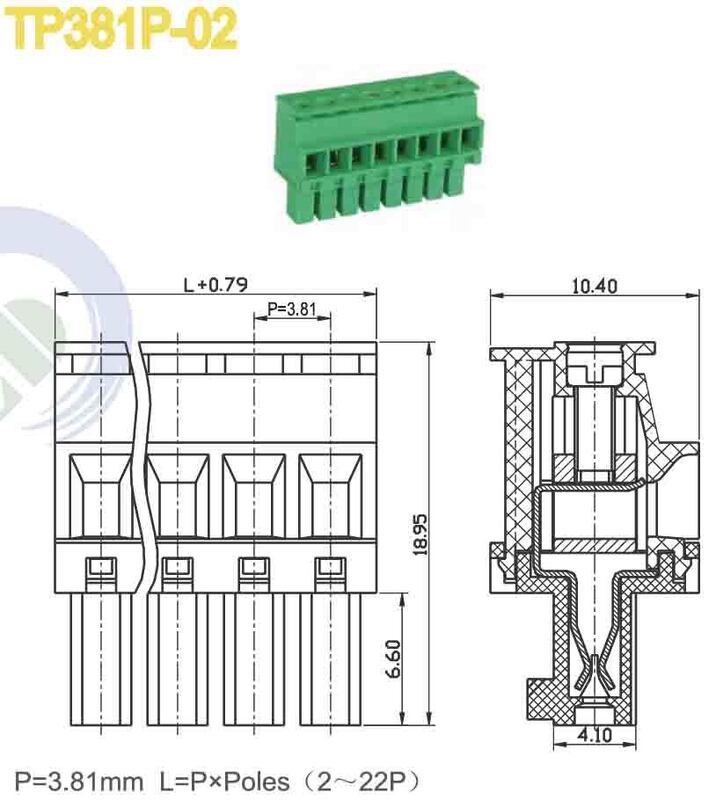

Model Numbertp381p-02
-
Minimum Order Quantity500
-
PriceGet Latest Price
-
Packaging DetailsCarton Box
-
Delivery Time50 Day(s)
-
Payment TermsT/T,AliPay,PayPal
-
Supply Ability100000pcs/day
12-24 AWG Pluggable Terminal Block with Rated Surge Voltage and High Insulation Resistance for PCB Connectivity

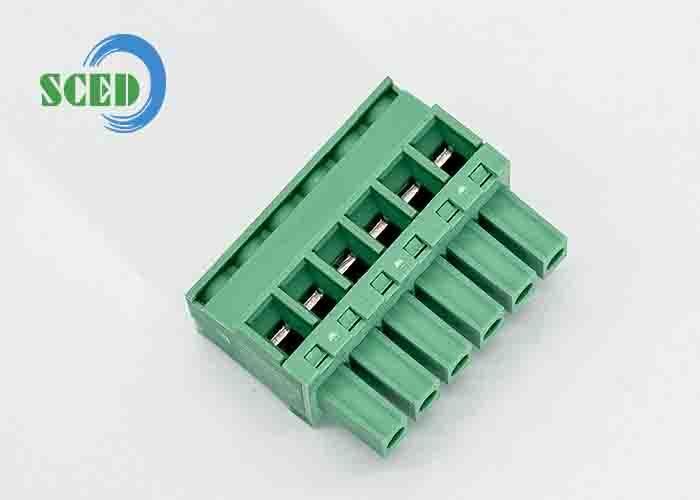

Pluggable Terminal Block
12-24 AWG Wire Size Range Connector Offering Rated Surge Voltage No Abnormal Within 1 Minute Designed for Power and Signal Connectivity
Product Overview
The Pluggable Terminal Block is a highly reliable and versatile connector designed to provide secure and efficient electrical connections in a wide range of applications. Engineered to meet demanding requirements of modern electronic and electrical systems, this connector ensures both safety and performance with excellent insulation resistance rated above DC500V and 500MΩ.
Key Features
- Product Name: Pluggable Terminal Block
- Type: Pluggable connector for easy installation and replacement
- Insulation Resistance: Above DC500V, 500MΩ ensuring high safety standards
- Inflammability Class: UL94-V0 for excellent fire resistance
- Clamp Cage Material: Brass for durable and reliable connections
- Withstanding Voltage: 3000V AC/minute for robust electrical performance
- Certifications: CE and RoHS compliant, guaranteeing quality and environmental safety
Technical Specifications
| Use To | PCB |
| Key Words | Pluggable Male Terminal |
| Certifications | CE, RoHS |
| Screw | M2 |
| Wire Size Range | 12-24 AWG |
| Withstanding Voltage | 3000V AC/minute |
| Terminal | Phosphor Bronze |
| Operating Temperature | -40°C To +105°C |
| Number of Positions | 2 To 24 |
| Rated Surge Voltage | No Abnormal Within 1 Minute |
Applications
The SCED Pluggable Terminal Block is widely used in industrial automation systems, control panels, power supplies, telecommunications equipment, consumer electronics, automotive electronics, and renewable energy systems. Its pluggable design simplifies wiring changes and upgrades, saving time and reducing labor costs in manufacturing and maintenance processes.
Customization Options
SCED offers comprehensive customization services for Pluggable Terminal Block connectors, supporting terminal blocks ranging from 2 to 24 positions suitable for wire sizes between 12-24 AWG. Made from durable PA66 plastic, these connectors are ideal for PCB applications.
Frequently Asked Questions
What certifications does the SCED Pluggable Terminal Block have?
The SCED Pluggable Terminal Block is certified with UL, CE, and ISO9001, ensuring high quality and safety standards.
Where is the SCED Pluggable Terminal Block manufactured?
The product is made in Suzhou, China.
What is the minimum order quantity for the SCED Pluggable Terminal Block?
The minimum order quantity is 500 pieces.
What are the payment terms available?
We accept payment via T/T, AliPay, and PayPal.
How long does delivery take?
Delivery time is approximately 50 days after order confirmation.
