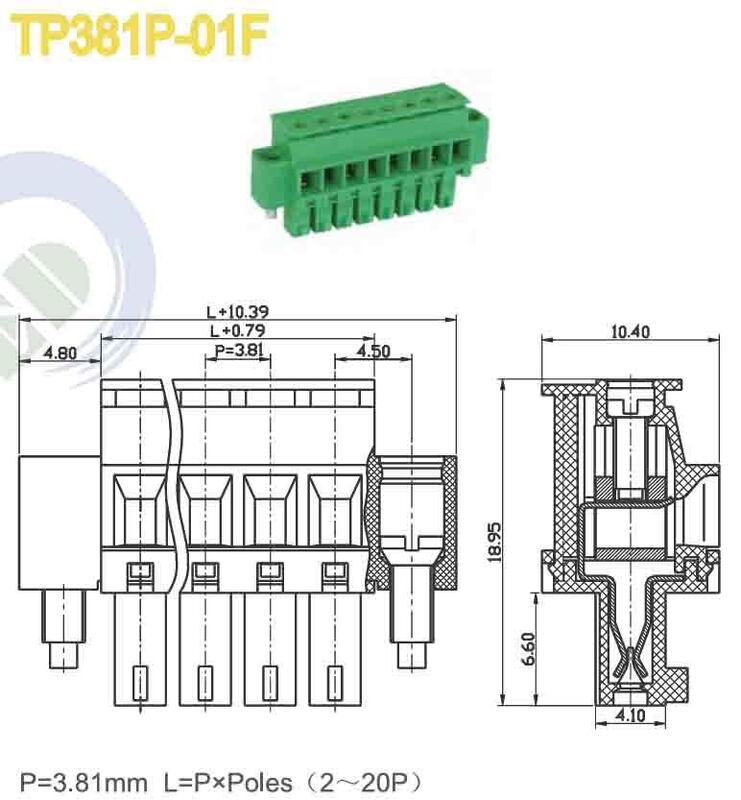

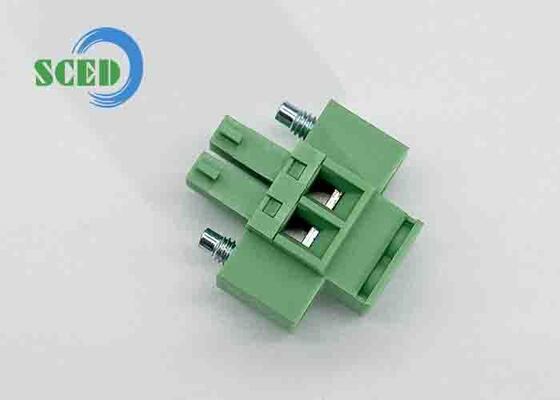

Withstanding Voltage 3000V AC minute Pluggable Terminal Block Featuring Screw M2 and Pluggable Male Terminal for Circuit Assembly

Product Description:

The Pluggable Terminal Block is an essential component designed to provide reliable and efficient electrical connections in a wide variety of applications. Engineered with high-quality materials and precision manufacturing, this connector ensures durability, safety, and excellent performance in both industrial and commercial environments. Its robust design makes it an ideal choice for professionals seeking dependable connectors that can withstand demanding conditions while maintaining superior electrical conductivity.

One of the standout features of this pluggable terminal block is its outstanding inflammability class rating of UL94-V0. This rating signifies that the connector is made from materials that are highly flame-retardant, providing an added layer of safety in environments where fire hazards may be a concern. The UL94-V0 classification ensures that the connector will self-extinguish quickly if exposed to a flame, minimizing the risk of fire spreading and enhancing the overall safety of the electrical system.

The pluggable terminal block supports a wire size range of 12-24 AWG, making it versatile enough to accommodate a variety of wire gauges commonly used in electrical installations. Whether you are working with thicker wires for power transmission or thinner wires for signal connections, this connector provides a secure and stable connection point. The compatibility with a wide range of wire sizes makes it a flexible solution suitable for numerous wiring needs and applications.

In addition to its impressive safety and versatility features, this connector boasts an exceptional withstanding voltage of 3000V AC per minute. This high voltage rating indicates the connector's ability to tolerate strong electrical stresses without breakdown or failure, ensuring reliable insulation and preventing electrical shorts or damage. This makes the pluggable terminal block suitable for use in high-voltage circuits and systems, where maintaining electrical integrity is critical.

Quality certifications further attest to the reliability and compliance of this connector. It holds CE and RoHS certifications, demonstrating that the product meets stringent European standards for safety, health, and environmental protection. The CE marking confirms that the connector complies with essential directives and can be legally marketed within the European Economic Area. Meanwhile, the RoHS certification guarantees that the materials used are free from hazardous substances, making the connector an environmentally responsible choice.

The terminal contacts of this pluggable terminal block are crafted from phosphor bronze, a material renowned for its excellent electrical conductivity, corrosion resistance, and mechanical strength. Phosphor bronze terminals ensure consistent, low-resistance connections that enhance the overall efficiency and reliability of the electrical system. Their durability also contributes to a longer service life of the connector, reducing the need for frequent maintenance or replacement.

Overall, this pluggable terminal block connector combines safety, versatility, and performance in a compact and user-friendly design. Its UL94-V0 inflammability rating, broad wire size compatibility, high withstanding voltage, and adherence to CE and RoHS standards make it an outstanding choice for professionals and hobbyists alike. Whether you need a dependable connector for industrial machinery, control panels, or electronic devices, this pluggable terminal block offers the quality and reliability you can trust.

Features:

• Product Name: Pluggable Terminal Block connector
• Withstanding Voltage: 3000V AC/minute for reliable insulation
• Inflammability Class: UL94-V0 ensuring high safety standards
• Number of Positions: Available from 2 to 24 positions to suit various applications
• Operating Temperature Range: -40°C to +105°C for versatile environmental use
• Insulation Resistance: Above DC500V, 500MΩ providing excellent electrical insulation
• Designed as a Pluggable connector for easy installation and maintenance

Technical Parameters:

Applications:

The SCED Pluggable Terminal Block is a versatile and reliable connector designed to meet the demanding requirements of various electrical and electronic applications. Originating from Suzhou, China, this product is manufactured with strict adherence to international standards, boasting certifications such as UL, CE, and ISO9001. These certifications ensure the highest quality and safety for end-users, making the SCED pluggable male terminal a trusted choice for numerous industries.

One of the primary application occasions for the SCED Pluggable Terminal Block is in industrial automation systems. Its robust design, featuring a right angle wire inlet and compatibility with wire sizes ranging from 12-24 AWG, allows it to connect control panels, sensors, and actuators efficiently. The M2 screw mechanism guarantees secure and stable connections under various environmental conditions. Furthermore, the rated surge voltage of no abnormal within 1 minute ensures that the connector can withstand transient electrical stresses, which is crucial in industrial settings.

In addition to industrial automation, this pluggable connector is widely used in renewable energy projects, such as solar panel installations and wind turbines. The ease of plugging and unplugging facilitates quick maintenance and system upgrades, reducing downtime and operational costs. Its high supply ability of 100,000 pieces per day and a minimum order quantity of 500 units make it suitable for large-scale projects requiring consistent quality and timely delivery, typically within 50 days from order confirmation.

The SCED Pluggable Terminal Block is also ideal for building automation and smart home systems. It supports efficient wiring solutions for HVAC systems, lighting controls, and security devices. The packaging in sturdy carton boxes ensures safe transportation and storage, while flexible payment terms including T/T, AliPay, and PayPal accommodate global customers. Pricing is competitive and available upon request, reflecting SCED’s commitment to delivering value without compromising performance.

Overall, the SCED Pluggable Male Terminal connector stands out in scenarios where reliable electrical connections are critical. Whether in industrial, renewable energy, or smart building applications, this connector offers durability, ease of use, and certified quality, making it a preferred choice for engineers and project managers worldwide.

Customization:

SCED offers comprehensive product customization services for our Pluggable Terminal Block, a high-quality pluggable connector designed to meet diverse application needs. Manufactured in Suzhou, China, our products comply with international standards including UL, CE, ISO9001, and RoHS certifications, ensuring reliable performance and safety.

We support customization for wire size ranges from 12 to 24 AWG and use M2 screws to guarantee secure connections. Our pluggable connectors operate efficiently within a temperature range of -40°C to +105°C, making them suitable for various industrial environments.

With a minimum order quantity of 500 pieces, we offer flexible pricing—please contact us to get the latest price. Each order is carefully packaged in carton boxes to ensure safe delivery. Our supply ability reaches up to 100,000 pieces per day, enabling us to fulfill large orders promptly with a delivery time of approximately 50 days.

Payment terms are convenient and secure, including T/T, AliPay, and PayPal options. Trust SCED to provide customized pluggable terminal block solutions tailored to your specific requirements, combining quality, reliability, and excellent service.

Support and Services:

Our Pluggable Terminal Block products are designed to provide reliable and secure electrical connections for a variety of applications. To ensure optimal performance and longevity, we offer comprehensive technical support and services.

Technical support includes assistance with product selection, installation guidance, troubleshooting, and maintenance tips. Our team of experts is available to help you understand the specifications, compatibility, and best practices for using pluggable terminal blocks in your projects.

We provide detailed product datasheets, wiring diagrams, and application notes to facilitate proper use and integration of our terminal blocks. Customization options are also available to meet specific requirements, including variations in pin counts, current ratings, and mounting styles.

For service and warranty, we stand behind the quality of our products. In the unlikely event of a defect, we offer repair or replacement services in accordance with our warranty policy. Regular updates and improvements to our product line ensure that you have access to the latest innovations and safety standards.

We are committed to delivering exceptional support to help you achieve reliable and efficient electrical connections with our Pluggable Terminal Block solutions.

Packing and Shipping:

Each Pluggable Terminal Block is carefully packaged to ensure maximum protection during transit. The product is placed in an anti-static bag and then securely fitted into a sturdy cardboard box with cushioning materials to prevent damage.

For bulk orders, the terminal blocks are arranged in trays or reels and packed in larger cartons with adequate padding to maintain product integrity.

Our shipping process adheres to international standards, ensuring timely and safe delivery. We offer multiple shipping options including air freight, sea freight, and express courier services to meet your requirements.

All packages are clearly labeled with product information, handling instructions, and shipping details to facilitate smooth customs clearance and delivery.

FAQ:

Q1: What certifications does the SCED Pluggable Terminal Block have?

A1: The SCED Pluggable Terminal Block is certified with UL, CE, and ISO9001, ensuring high quality and safety standards.

Q2: Where is the SCED Pluggable Terminal Block manufactured?

A2: It is manufactured in Suzhou, China.

Q3: What is the minimum order quantity for the SCED Pluggable Terminal Block?

A3: The minimum order quantity is 500 pieces.

Q4: What are the payment terms available for purchasing the SCED Pluggable Terminal Block?

A4: Payment can be made via T/T, AliPay, or PayPal.

Q5: How long does it take to deliver the SCED Pluggable Terminal Block after placing an order?

A5: The delivery time is approximately 50 days.
