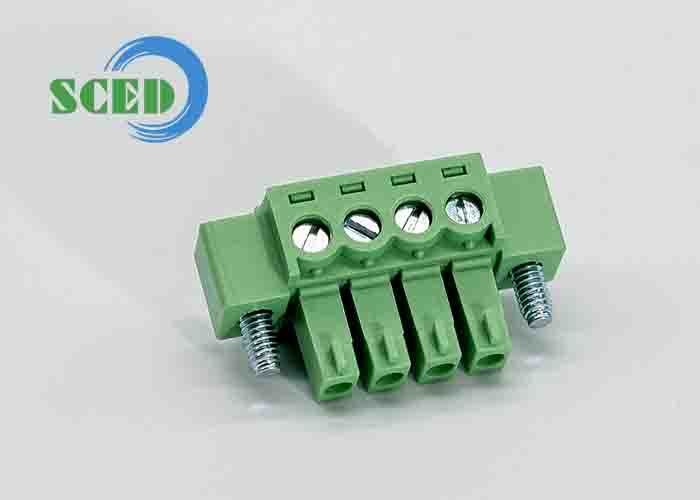

Phosphor Bronze Terminal Pluggable Interfaces Engineered for PCB Applications Providing Stable Electrical Performance

Product Description:

The Pluggable Terminal Block is a highly reliable and versatile connector designed to meet the demanding requirements of modern electrical and electronic applications. Engineered with precision, this connector provides a secure and efficient means of connecting wires and cables, ensuring optimal performance and safety. Its robust construction and superior material quality make it an ideal choice for a wide range of industries, including industrial automation, control systems, telecommunications, and consumer electronics.

One of the standout features of this pluggable terminal block is its excellent inflammability classification of UL94-V0. This means the connector is made from flame-retardant materials that resist ignition and prevent the spread of fire, enhancing safety in critical environments. Such a high inflammability rating is essential for applications where fire hazards must be minimized, providing peace of mind to users and compliance with stringent safety standards.

The connector is also designed to withstand a high voltage stress, with a withstanding voltage rating of 3000V AC per minute. This impressive electrical endurance ensures that the connector can operate reliably even under high voltage conditions without electrical breakdown or failure. This characteristic is particularly crucial in industrial and power distribution settings where connectors are exposed to fluctuating and potentially high voltages.

Certification is a key consideration when selecting components for electronic assemblies, and the Pluggable Terminal Block excels in this regard. It holds CE and RoHS certifications, signifying that it complies with European safety, health, and environmental regulations. The CE mark confirms the connector’s adherence to essential safety and performance requirements, while the RoHS certification guarantees that the product is free from hazardous substances, making it environmentally friendly and safe to use in consumer electronics and other applications.

The design of the connector incorporates M2 screws, which provide a secure and reliable method of fastening wires within the terminal block. These screws ensure a tight connection that resists loosening due to vibration or thermal cycling, thereby maintaining electrical continuity and reducing the risk of connection failures. The use of M2 screws strikes a balance between ease of installation and robust mechanical retention, making the connector user-friendly for technicians and engineers alike.

Flexibility is another strong point of this pluggable terminal block, as it is available with a number of positions ranging from 2 to 24. This wide range allows users to select the exact configuration that suits their wiring needs, whether for small-scale projects requiring just a few connections or larger, more complex systems needing multiple wire terminations. The modular nature of the connector means it can be easily integrated into various circuit designs, providing scalability and adaptability.

In summary, this pluggable terminal block connector offers a combination of safety, reliability, and versatility. Its UL94-V0 inflammability class, high withstanding voltage of 3000V AC per minute, and compliance with CE and RoHS standards make it a dependable choice for critical applications. The M2 screw fastening system ensures secure wire retention, while the availability of 2 to 24 positions caters to diverse wiring requirements. Whether you are designing an industrial control panel, a telecommunications device, or a consumer electronic product, this connector delivers exceptional performance and peace of mind.

By selecting this pluggable terminal block connector, users benefit from a product that prioritizes safety, environmental responsibility, and electrical integrity. Its robust design and certifications make it suitable for a broad spectrum of applications, ensuring that your connections remain secure and stable under various operating conditions. Trust in this connector to provide the dependable connectivity solution your project demands.

Features:

• Pluggable design for easy installation and maintenance
• Operating temperature range from -40°C to +105°C
• Available with 2 to 24 pluggable positions
• Rated surge voltage: No abnormality within 1 minute
• Right angle wire inlet for convenient wiring
• Withstanding voltage of 3000V AC per minute
• Reliable pluggable terminal block for secure connections

Technical Parameters:

This pluggable connector is designed as a reliable connector solution featuring a pluggable male terminal, suitable for PCB applications.

Applications:

The SCED Pluggable Terminal Block is a versatile connector designed to meet the diverse needs of electrical and electronic applications. Manufactured in Suzhou, China, this high-quality connector is certified by UL, CE, and ISO9001, ensuring reliability and safety in every use. With a robust supply ability of 100,000 pieces per day and a minimum order quantity of 500 units, SCED offers an efficient solution for both small and large-scale projects.

This pluggable terminal block is ideal for use in industrial control systems, automation equipment, power distribution units, and instrumentation panels. Its right-angle wire inlet design allows for easy and secure wiring, making installation straightforward and reducing assembly time. The terminal block accommodates 2 to 24 positions, providing flexibility to suit various wiring configurations and application requirements.

Constructed with durable PA66 plastic and brass clamp cages, the SCED pluggable connector withstands harsh operating temperatures ranging from -40°C to +105°C. This makes it suitable for environments with extreme temperature variations, such as outdoor installations, factory floors, and electrical cabinets exposed to fluctuating conditions. The brass clamp cage ensures a strong and stable connection, minimizing the risk of loose wires or connectivity issues.

Packaging is handled with care, with each order shipped in a secure carton box to prevent damage during transit. SCED offers multiple payment options, including T/T, AliPay, and PayPal, providing convenience and flexibility for international buyers. The delivery time is approximately 50 days, allowing for thorough quality checks and efficient manufacturing processes.

In summary, the SCED pluggable terminal block connector is an excellent choice for engineers and technicians looking for reliable, certified connectors that combine ease of installation, durability, and adaptability. Whether for use in industrial automation, electrical wiring, or control panel assembly, this connector ensures consistent performance and long-term stability in various application scenarios.

Customization:

SCED offers high-quality Pluggable Terminal Block connectors, manufactured in Suzhou, China. Our connectors are certified by UL, CE, and ISO9001, ensuring reliable performance and safety. We provide customization services with a minimum order quantity of 500 pieces, allowing you to get the latest price tailored to your requirements.

Our Pluggable Terminal Block connectors feature a wire size range of 12-24 AWG and use phosphor bronze terminals for excellent conductivity. The insulation resistance is above DC500V, 500MΩ, providing superior electrical insulation. The connectors are designed with a right angle wire inlet and constructed with durable PA66 plastic for enhanced durability.

Packaging is done in sturdy carton boxes to ensure safe delivery. With a supply ability of 100,000 pieces per day, we can meet large volume demands efficiently. Delivery time is approximately 50 days, and we accept multiple payment terms including T/T, AliPay, and PayPal. Trust SCED for your custom Pluggable connector needs, combining quality, reliability, and excellent service.

Support and Services:

Our Pluggable Terminal Blocks are designed to provide secure and reliable electrical connections for a wide range of applications. To ensure optimal performance and longevity, please follow the recommended installation and maintenance guidelines provided in the product manual.

For technical support, including product selection, installation assistance, and troubleshooting, our team of experts is available to help you. We offer comprehensive services to address any questions or issues you may encounter with our Pluggable Terminal Blocks.

In addition to technical support, we provide customization options to meet your specific requirements. Whether you need different sizes, pin configurations, or special materials, we can work with you to develop a solution tailored to your needs.

We also offer product training and detailed documentation to help you understand the features and proper use of our Pluggable Terminal Blocks. This includes datasheets, wiring diagrams, and safety information to ensure correct and safe operation.

Our commitment to quality and customer satisfaction means that we stand behind our products with reliable warranties and responsive service. Should you require replacement parts or repairs, please refer to the warranty terms and conditions provided with your purchase.

Packing and Shipping:

Our Pluggable Terminal Blocks are carefully packaged to ensure safe delivery and optimal protection during transit. Each unit is securely placed in individual anti-static bags to prevent any electrostatic damage. These are then packed in sturdy cardboard boxes with adequate cushioning materials to avoid any physical impact or vibration.

For bulk orders, the terminal blocks are organized in compartmentalized trays within larger boxes to maintain order and prevent movement. All packages are clearly labeled with product details, handling instructions, and batch numbers for easy identification and traceability.

We offer multiple shipping options to meet your delivery requirements, including standard, expedited, and freight services. Our logistics partners ensure timely and reliable delivery to your specified location worldwide. Tracking information will be provided upon dispatch for your convenience.

FAQ:

Q1: What certifications does the SCED Pluggable Terminal Block have?

A1: The SCED Pluggable Terminal Block is certified with UL, CE, and ISO9001, ensuring high quality and safety standards.

Q2: Where is the SCED Pluggable Terminal Block manufactured?

A2: The product is manufactured in Suzhou, China.

Q3: What is the minimum order quantity for the SCED Pluggable Terminal Block?

A3: The minimum order quantity is 500 pieces.

Q4: How is the SCED Pluggable Terminal Block packaged for shipment?

A4: The terminal blocks are packaged in carton boxes to ensure safe delivery.

Q5: What are the payment terms and delivery time for the SCED Pluggable Terminal Block?

A5: Payment can be made via T/T, AliPay, or PayPal. The typical delivery time is 50 days.
