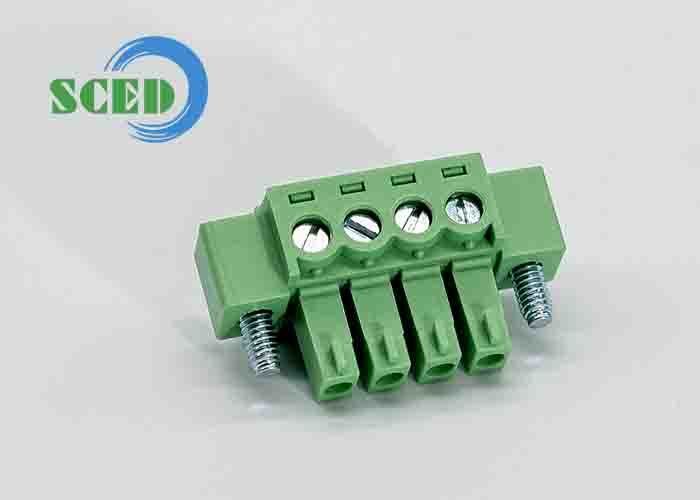

Brass Clamp Cage Pluggable Terminal Block with 3000V AC/minute Withstanding Voltage and Phosphor Bronze Terminal for Reliable Electrical Connections
-
Highlight
3000V AC/minute Withstanding Voltage Pluggable Terminal Block
,Brass Clamp Cage Electrical Connector
,Phosphor Bronze Terminal Terminal Block
-
Withstanding Voltage3000V AC/minute
-
Clamp CageBrass
-
TerminalPhosphor Bronze
-
ConnectiontypeScrew Clamp
-
TypeElectrical Connector
-
Pole2-20 Poles
-
Insulation ResistanceAbove DC500V, 500MΩ
-
ProductnamePluggable Terminal Block
-
Brand NameSCED
-
CertificationUL, CE, ISO9001
-

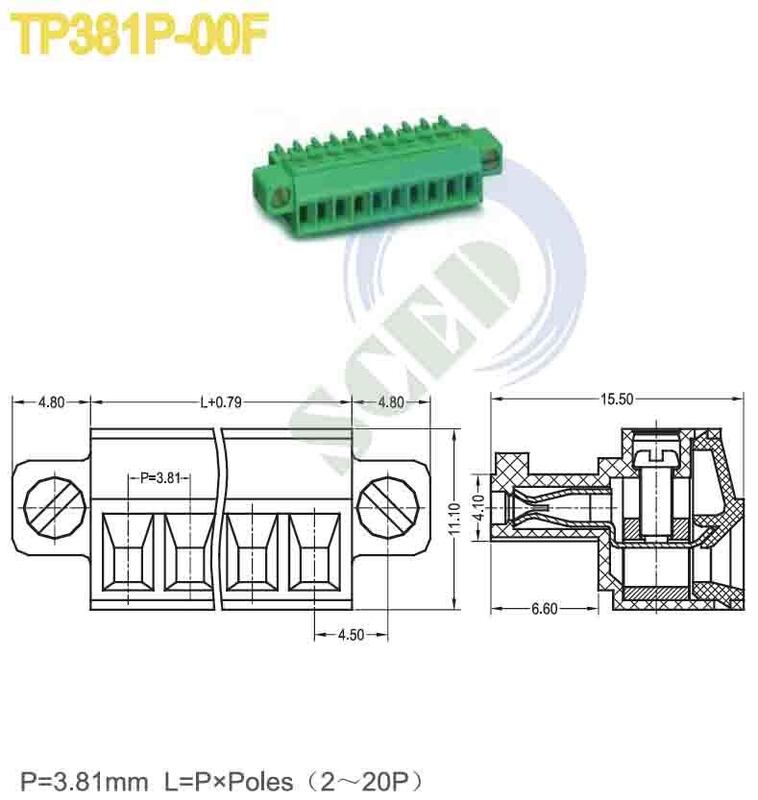

Model NumberTP381P-00F
-
Minimum Order Quantity500
-
PriceGet Latest Price
-
Packaging DetailsCarton Box
-
Delivery Time50 Day(s)
-
Payment TermsT/T,AliPay,PayPal
-
Supply Ability100000pcs/day
Brass Clamp Cage Pluggable Terminal Block with 3000V AC/minute Withstanding Voltage and Phosphor Bronze Terminal for Reliable Electrical Connections
Product Overview
The Pluggable Terminal Block connector provides reliable electrical connections for various applications. Engineered with high-quality materials, this durable connector ensures safety and excellent conductivity for industrial and commercial use.
Key Features
- Pluggable design for easy installation and replacement
- High-quality phosphor bronze terminals
- Withstanding voltage: 3000V AC/minute for reliable performance
- Insulation resistance above DC500V, 500MΩ ensuring safety
- PCB hole diameter: 1.4mm for precise mounting
- Screw termination type for secure connections
Technical Specifications
| Number of Contacts | 2P-20P |
| Pole Configuration | 2-20 Poles |
| Terminal Material | Phosphor Bronze |
| Current Rating | 10A |
| Insulation Resistance | Above DC500V, 500MΩ |
| PCB Hole Diameter | 1.4mm |
| Wire Inlet | 45 Degree Wire Inlet |
| Withstanding Voltage | 3000V AC/minute |
| Termination Type | Screw |
Applications
This versatile connector is ideal for control panels, HVAC systems, industrial machinery, automation systems, instrumentation, and communication devices. Its robust design ensures reliable performance in demanding environments.
Certifications & Quality
Certified with UL, CE, and ISO9001 standards, manufactured in Suzhou, China. High-quality materials including PA66 housing and brass components ensure durability and optimal performance.
Frequently Asked Questions
What certifications does the SCED Pluggable Terminal Block have?
The SCED Pluggable Terminal Block is certified with UL, CE, and ISO9001, ensuring high quality and safety standards.
Where is the SCED Pluggable Terminal Block manufactured?
It is manufactured in Suzhou, China.
What is the minimum order quantity?
The minimum order quantity is 500 pieces.
What payment methods are accepted?
We accept payment via T/T, AliPay, and PayPal.
What is the typical delivery time?
The delivery time is typically 50 days.
