PCB Terminal Block with 1000MΩmin Insulation Resistance Right Angle Wire Inlet and Tin Plated Finish for Secure Electrical Connections
-
Highlight
1000MΩmin Insulation Resistance PCB Terminal Block
,Right Angle Wire Inlet PCB Mount Terminal Block
,Tin Plated Finish Terminal Block Connector
-
MountingtypeThrough Hole
-
FinishTin Plated
-
Withstand VoltageAC2000V/min
-
Number Of Contacts2P-16P
-
Voltage300V
-
Insulation Resistance1000MΩ/min
-
Stripping Length9-10mm
-
Number Of Positions2/3/4/5/6/8/10/12/14
-
Brand NameSCED
-
CertificationCE, ISO9001
-

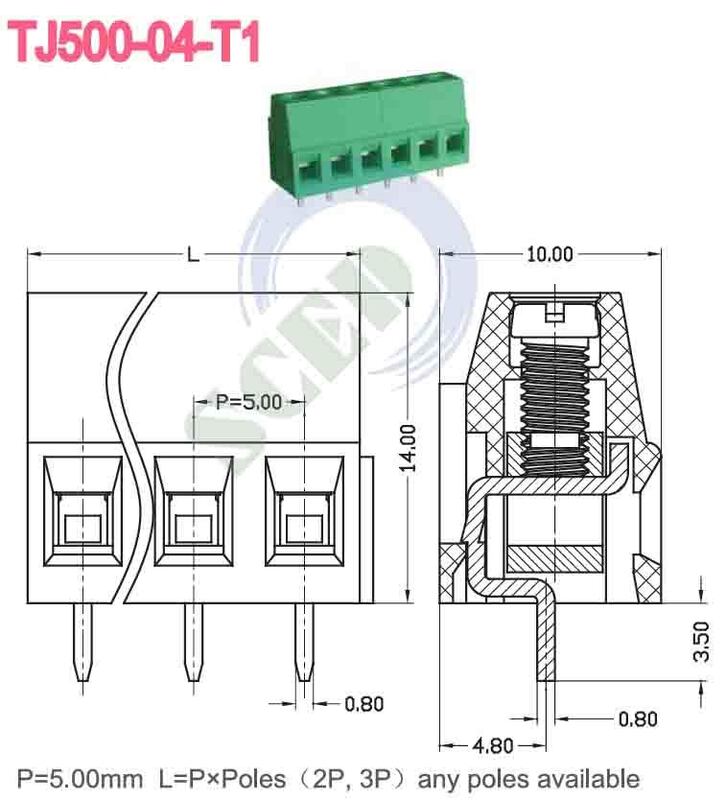

Model NumberTJ500-04
-
Minimum Order Quantity500
-
PriceGet Latest Price
-
Packaging DetailsCarton Box
-
Delivery Time50 Day(s)
-
Payment TermsT/T,AliPay,PayPal
-
Supply Ability100000pcs/day
PCB Terminal Block with 1000MΩmin Insulation Resistance Right Angle Wire Inlet and Tin Plated Finish for Secure Electrical Connections

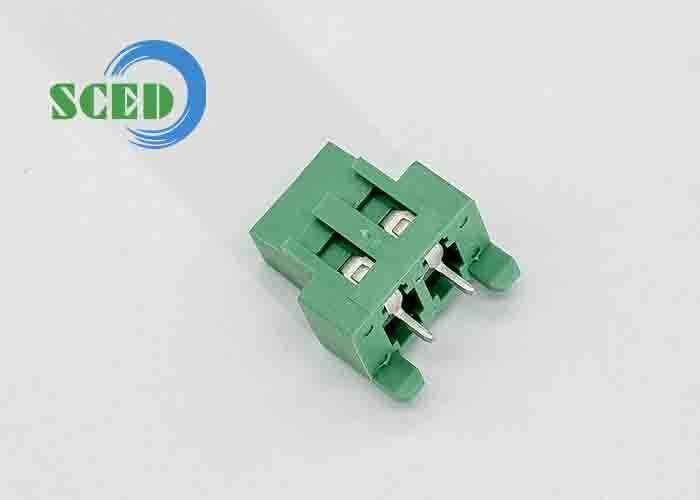

PCB Terminal Block with Right Angle Wire Inlet
This PCB terminal block provides secure and reliable electrical connections for various electronic applications. Featuring a right-angle wire inlet design, it optimizes space-saving layouts on printed circuit boards while ensuring organized and efficient wiring.
Key Features
- Right angle wire inlet for easy and efficient wiring
- Screw clamp connection type for secure wire retention
- Wide operating temperature range: -40℃ to +105℃
- High insulation resistance: 1000MΩ/min
- Tin plated finish for excellent corrosion resistance
- Current rating: 10A suitable for various applications
- Available in 1-6 rows with 2-24 positions
- Withstand voltage: AC2000V/min for high electrical safety
Technical Specifications
| Insulation Resistance | 1000MΩ/min |
| Withstand Voltage | AC2000V/min |
| Stripping Length | 9-10mm |
| Connection Type | Screw Clamp |
| Pole Configuration | 2P-24P |
| Finish | Tin Plated |
| Voltage Rating | 300V |
| Number of Rows | 1/2/3/4/5/6 |
| Wire Inlet | Right Angle |
| Number of Positions | 2/3/4/5/6/8/10/12/14 |
Applications
Ideal for industrial control systems, automation equipment, power supplies, communication devices, and various electronic assemblies where reliable terminal connections are essential. CE and ISO9001 certified for quality assurance.
Customization Options
We offer customized PCB terminal blocks with various contact options from 2P to 16P. Minimum order quantity is 500 pieces with supply capacity up to 100,000 pieces per day. Delivery time is typically 50 days with secure carton box packaging.
Support & Services
Comprehensive technical support including datasheets, application notes, and installation guides. Customization assistance and product selection guidance available. Training resources and troubleshooting support provided.
Packing & Shipping
Each terminal block is packaged in anti-static bags within sturdy cardboard boxes. Protective separators prevent contact damage. Reliable carriers with tracking options ensure safe delivery. Custom packaging solutions available.
Frequently Asked Questions
What certifications does the SCED PCB Terminal Block have?
The SCED PCB Terminal Block is certified with CE and ISO9001, ensuring high quality and compliance with international standards.
What is the minimum order quantity?
The minimum order quantity is 500 pieces.
How can I get pricing information?
Please contact our sales team or visit our website for the latest pricing quotation.
What payment methods are accepted?
We accept T/T (Telegraphic Transfer), AliPay, and PayPal for your convenience.
What is the delivery time and packaging?
Delivery time is typically 50 days, with products securely packaged in carton boxes for safe shipment.
