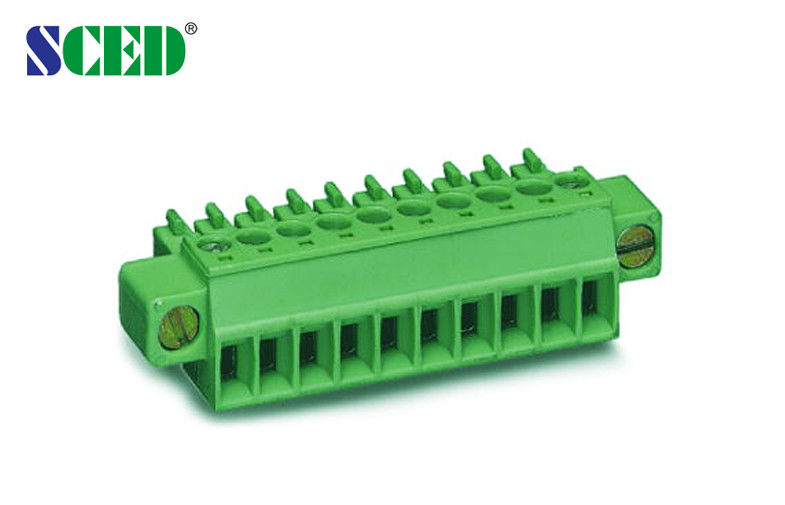

Flange Female Plug In Terminal Block Screw Terminal Block Pitch 3.81mm for Communication

Flange Female Plug In Terminal Block Screw Terminal Block Pitch 3.81mm for Communication

  • Flange Female Plug In Terminal Block Screw Terminal Block Pitch 3.81mm for Communication
Flange Female Plug In Terminal Block Screw Terminal Block Pitch 3.81mm for Communication
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TP381P-00F
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Current: 8A Imflammability: UL 94, V-0
Pitch: 3.81mm Poles: 2-20 Poles
Voltage: 300V Color: Green, Other Color Available
Wire Range: 16-30 AWG Clamp Cage: Brass
High Light:

power distribution terminal block

,

electric terminal block

Flange Female Screw Terminal Block Pitch 3.81mm 300v for Communication





Parameter and Drawing Specifications:



UL Technical Data B C D
Rated Voltage / Current V/A 300/8
Wire Range AWG 16-30
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 160 / 8 160 / 8 320 / 8
Rated Surge Voltage KV 2.5 2.5 2.5
Rated Connecting Capacity mm2 1.5
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Clamp Cage / Plating Brass / Nickel Plated
Contactor / Plating Phosphor Bronze / Tin Plated
Screw / Plating Steel / Zinc Plated
Other Data
Stripping Length mm 7
Screw / Torque / lbf.in M2 / 2-2.2




Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

Flange Female Plug In Terminal Block Screw Terminal Block Pitch 3.81mm for Communication 0



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

Flange Female Plug In Terminal Block Screw Terminal Block Pitch 3.81mm for Communication 1
