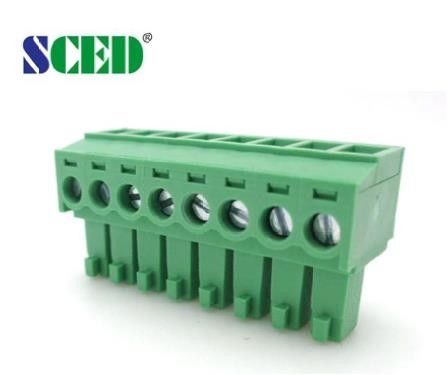

PCB Plug In Terminal Blocks 3.81mm 5.0mm 5.08mm Electric Power Terminal Block Connector
-
Highlight
power distribution terminal block
,power terminal block connector
-
ImflammabilityUL 94, V-0
-
Voltage300V
-
Current8A
-
Pitch3.81mm
-
Poles2-22 Poles
-
ColorGreen, Other Color Available
-
Place of OriginShenzhen, China
-
Brand NameSCED
-
CertificationUL, CE
-
Model NumberTP381P-00
-
Minimum Order Quantity500
-
PriceGet latest price
-
Packaging DetailsStandard Export Carton
-
Delivery Time7-20 working days
-
Payment TermsT/T
-
Supply Ability1KK poles each monthly
PCB Plug In Terminal Blocks 3.81mm 5.0mm 5.08mm Electric Power Terminal Block Connector

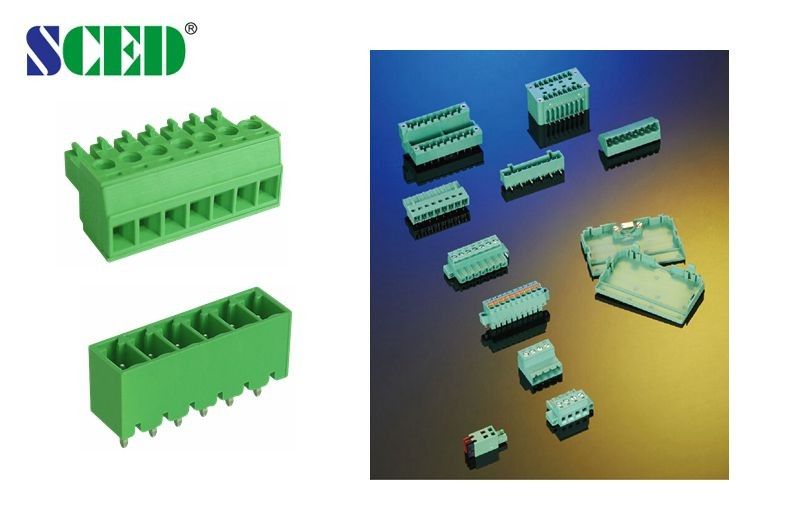

Plug In PCB Terminal Blocks / Electric Power Terminal Block Connector
Descripition:

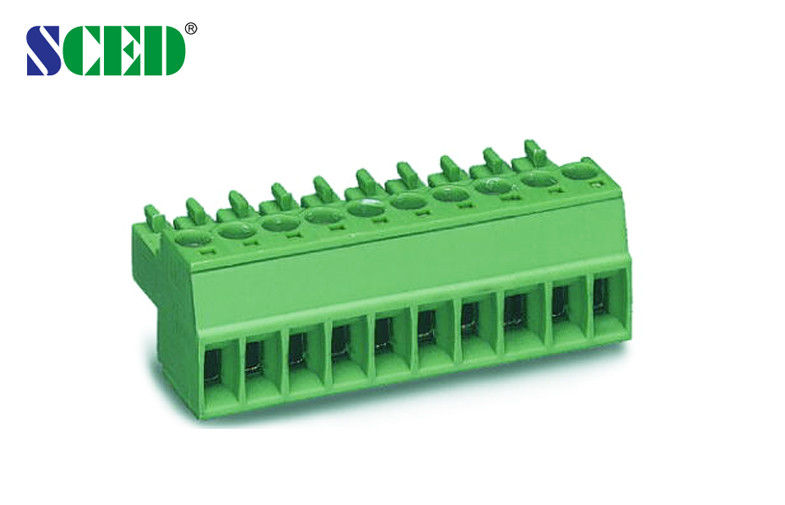

1. 3.81mm Pitch Pluggable terminal blocks
2. 2-22 Poles
3. Material: Plastic housing is PA66(UL94 V-0),
4. Operating temperature: -40 ℃~+105℃,
5. Screw using high quality steel
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300 / 8 |
|
|
|
Wire Range AWG |
16-30 |
|
|
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
160 / 8 |
160 / 8 |
320 / 8 |
|
Rated Surge Voltage KV |
2.5 |
2.5 |
2.5 |
|
Rated Connecting Capacity mm2 |
1.5 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Clamp Cage / Plating |
Brass / Nickel Plated |
||
|
Terminal / Plating |
Phosphor Bronze / Tin Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
7 |
||
|
Screw / Torque / lbf.in |
M2 / 2-2.2 |
||
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
Applications:
PCB, Frequency Converters,
Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation,
Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
Drawing photo:
Our products are sold all over the world, you can rest assured.
