Black Barrier Terminal Block with 10.00mm Pitch 300V 20A Right Angle Wire Inlet for PCB and Power Supply
-
Highlight
300V Barrier Terminal Block
,20A Barrier Terminal Block
-
LevelsSingle Level
-
Wire InletRight Angle Wire Inlet
-
ApplicationsPCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
-
ColorBlack
-
Number Of Contacts2P-18P
-
Pitch10.00mm
-
Rated Current20A
-
Rated Voltage300V
-
TypeBarrier Terminal Block,Power Terminal Blocks, Electrical Terminal Blocks
-
Wire Range10-22
-
Place of OriginSuzhou, China
-
Brand NameSCED
-
CertificationUL, CE
-
Model NumberTB1000-04
-
Minimum Order Quantity500
-
PriceGet latest price
-
Packaging DetailsPackaging Details: Standard export packing carton, or according to customers demand.
-
Delivery Time20-45 working days
-
Payment TermsT/T
-
Supply Ability1KK poles each monthly

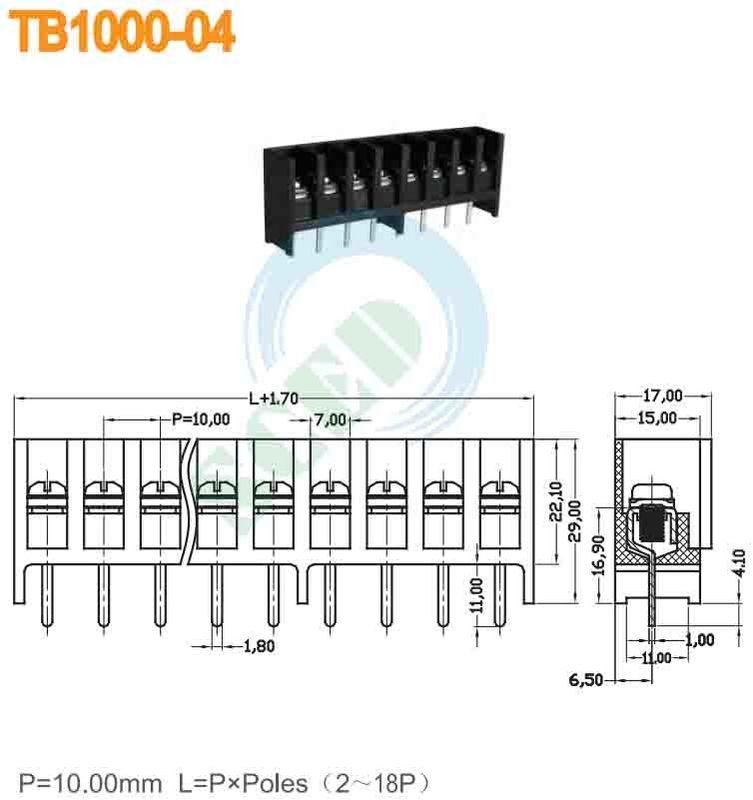

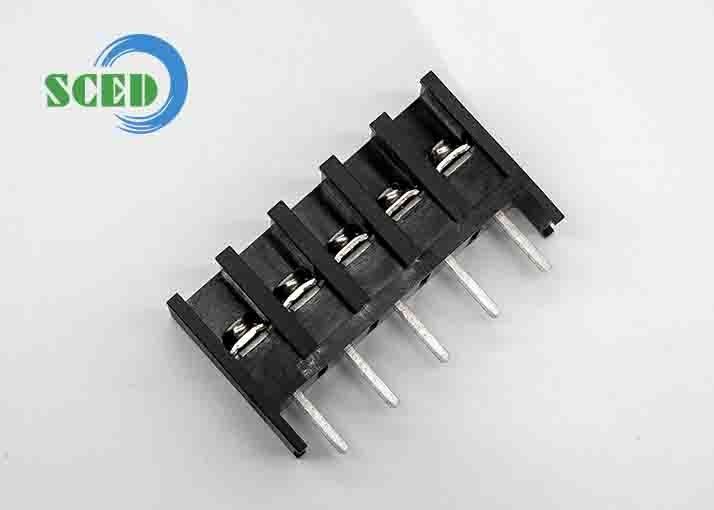

Black Barrier Terminal Block with 10.00mm Pitch 300V 20A Right Angle Wire Inlet for PCB and Power Supply
Black Barrier Terminal Block 2-18P 300V 20A Pitch 10.00mm PBT Brass 9-10mm
Product Overview
Black Barrier Terminal Block 2-18P 300V 20A Pitch 10.00mm PBT Brass 9-10mm
- ■ Right angle wire inlet
- □ Vertical wire inlet
- □ 45 degree wire inlet
- ■ Single Level
- □ Double levels
- □ Triple levels
Standard color: Black. Other colors also available - please refer to the ordering section and select your preferred color.
How to Order
Applications
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Elevator, and more.
Technical Specifications
| UL Technical Data | B | C | D |
|---|---|---|---|
| Rated Voltage / Current V/A | 300 / 20 | 300 / 10 | |
| Wire Range AWG | 10-22 | 10-22 |
| IEC Technical Data | |||
|---|---|---|---|
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 630 / 32 | 800 / 32 | 1000 / 32 |
| Rated Surge Voltage KV | 6 | 6 | 6 |
| Rated Connecting Capacity mm² | 6 | ||
| Material Specifications | |
|---|---|
| Insulation Material / Inflammability Class | PBT / UL94, V-0 |
| Terminal / Plating | Brass / Tin Plated |
| Screw / Plating | Steel / Nickel Plated |
| Other Data | |
|---|---|
| PCB Hole Diameter mm | φ2.5 |
| Stripping Length mm | 9-10 |
| Screw / Torque / lbf.in | M4 / 10-13 |
Competitive Advantages
- Stable good quality
- Competitive price
- Quick response
- Full range of products for selection
- Flexible to design exact parts per customers' demand
