Black Barrier Terminal Block 2-18P 300V 20A Pitch 10.00mm PBT Brass 9-10mm
-
Highlight
300V Barrier Terminal Block
,20A Barrier Terminal Block
-
LevelsSingle Level
-
Wire InletRight Angle Wire Inlet
-
ApplicationsPCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
-
ColorBlack
-
Number Of Contacts2P-18P
-
Pitch10.00mm
-
Rated Current20A
-
Rated Voltage300V
-
TypeBarrier Terminal Block,Power Terminal Blocks, Electrical Terminal Blocks
-
Wire Range10-22
-
Place of OriginSuzhou, China
-
Brand NameSCED
-
CertificationUL, CE
-
Model NumberTB1000-04
-
Minimum Order Quantity500
-
PriceGet latest price
-
Packaging DetailsPackaging Details: Standard export packing carton, or according to customers demand.
-
Delivery Time20-45 working days
-
Payment TermsT/T
-
Supply Ability1KK poles each monthly

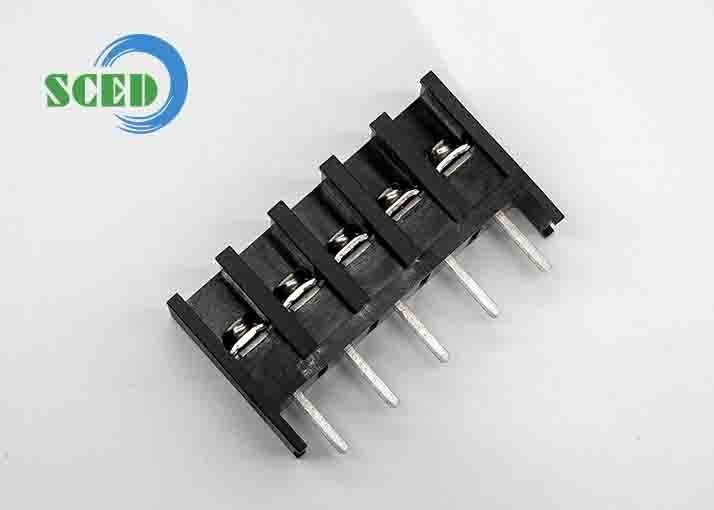

Black Barrier Terminal Block 2-18P 300V 20A Pitch 10.00mm PBT Brass 9-10mm
Black Barrier Terminal Block 2-18P 300V 20A Pitch 10.00mm PBT Brass 9-10mm
■ Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■ Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color
you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers.
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..

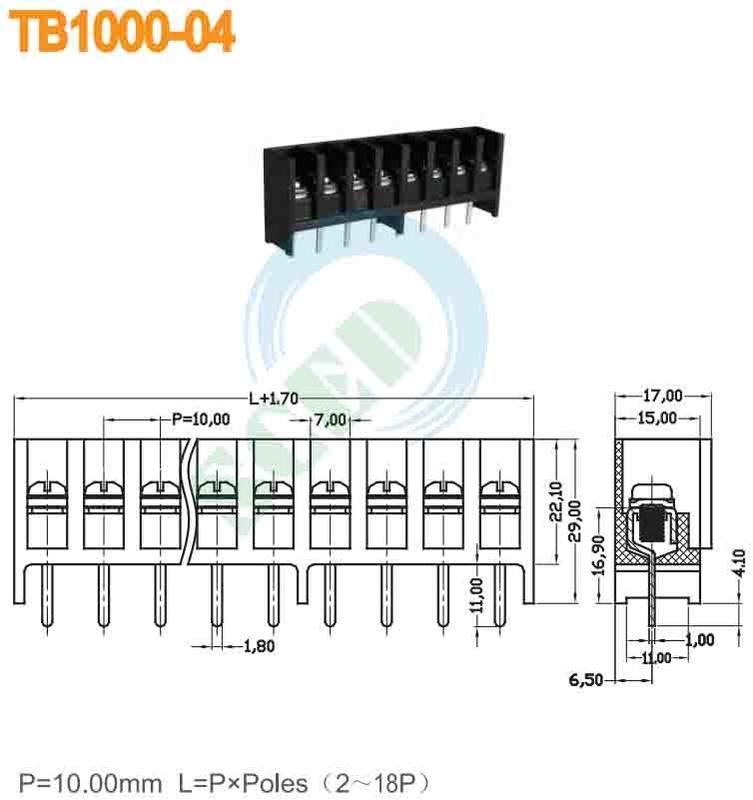

Parameter and Drawing Specifications:
|
UL Technical Data |
B C D |
|
Rated Voltage / Current V/A |
300 / 20 300 / 10 |
|
Wire Range AWG |
10-22 10-22 |
|
IEC Technical Data |
|
|
Overvoltage Category |
Ⅲ Ⅲ Ⅱ |
|
Contamination Class |
3 2 2 |
|
Rated Voltage / Current V/A |
630 / 32 800 / 32 1000 / 32 |
|
Rated Surge Voltage KV |
6 6 6 |
|
Rated Connecting Capacity mm2 |
6 |
|
Material |
|
|
Insulation Material / Inflammability Class |
PBT / UL94, V-0 |
|
Terminal / Plating |
Brass /Tin Plated |
|
Screw / Plating |
Steel / Nickel Plated |
|
Other Data |
|
|
PCB Hole Diameter mm |
φ2.5 |
|
Stripping Length mm |
9-10 |
|
Screw / Torque / lbf.in |
M4 / 10-13 |
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
Our products are sold all over the world, you can rest assured.
